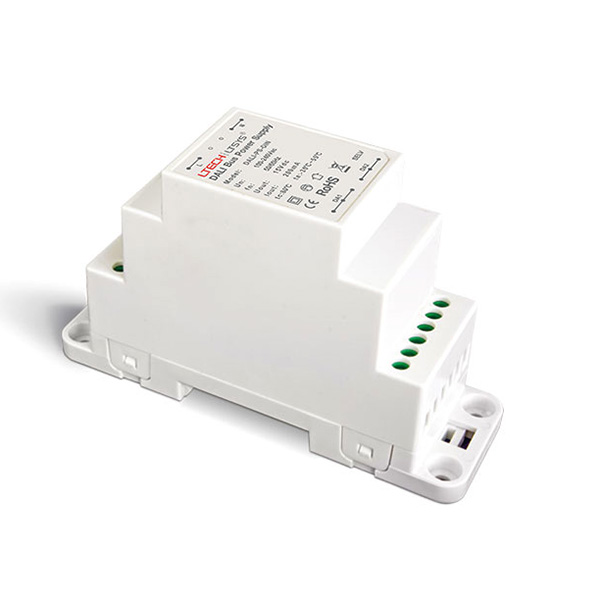

Product Information
Key Features
Dedicated DALI Bus Power
Provides the specific 15Vdc, 200mA output required to power the DALI communication bus, not the LED lights.
Full DALI Line Capacity
Delivers 200mA of rated current, sufficient to power a complete DALI line with up to 64 addressable devices.
Convenient DIN Rail Mounting
Designed for quick and secure installation in standard electrical cabinets and control panels.
Robust System Protection
Features auto-recovery from short circuits and over-temperature conditions, safeguarding your entire DALI network.
Universal AC Input
Operates on a wide input voltage range of 100-240Vac, making it suitable for installations worldwide.
Certified for Safety
Compliant with Class 2 and Safety Extra Low Voltage (SELV) standards for safe operation in indoor environments.
Technical Highlights
- Cold start inrush current limited to 10A at 230Vac to prevent tripping breakers.
- Low leakage current of less than 0.5mA/230Vac enhances operational safety.
- Wide operating temperature range from -30℃ to 55℃ ensures reliability in various indoor climates.
- Minimal ripple and noise (≤0.5Vp-p) at full load for stable, error-free DALI bus communication.
Product Specifications
| Parameter | Details |
|---|---|
| Model | DALI-PS-DIN |
| Product Type | DALI Bus Power Supply |
| Input Voltage | 100-240Vac |
| Frequency | 50/60Hz |
| AC Current (typ.) | ≤0.09A @ 115Vac, ≤0.05A @ 230Vac |
| Inrush Current (typ.) | Cold start 10A @ 230Vac |
| Leakage Current | <0.5mA / 230Vac |
| Operating Voltage (Output) | 15Vdc |
| Rated Current (Output) | 200mA |
| Max. Rated Power | 3W |
| Ripple & Noise (max.) | 0.5Vp-p |
| No Load Output Voltage (max.) | ≤17Vdc |
| Protections | Short Circuit, Over-temperature (Auto-recovery) |
| Working Temperature | -30℃ ~ 55℃ |
| Working Humidity | 20 ~ 95%RH, non-condensing |
| Storage Temperature | -40 ~ 80℃ |
| Safety Standards | Class 2 Power Supply, SELV |
| Housing Material | Plastic |
| Cooling | Natural air cooling |
| Dimensions (L×W×H) | 112 × 35 × 67 mm |
| Weight (G.W.) | 115g ±10g |

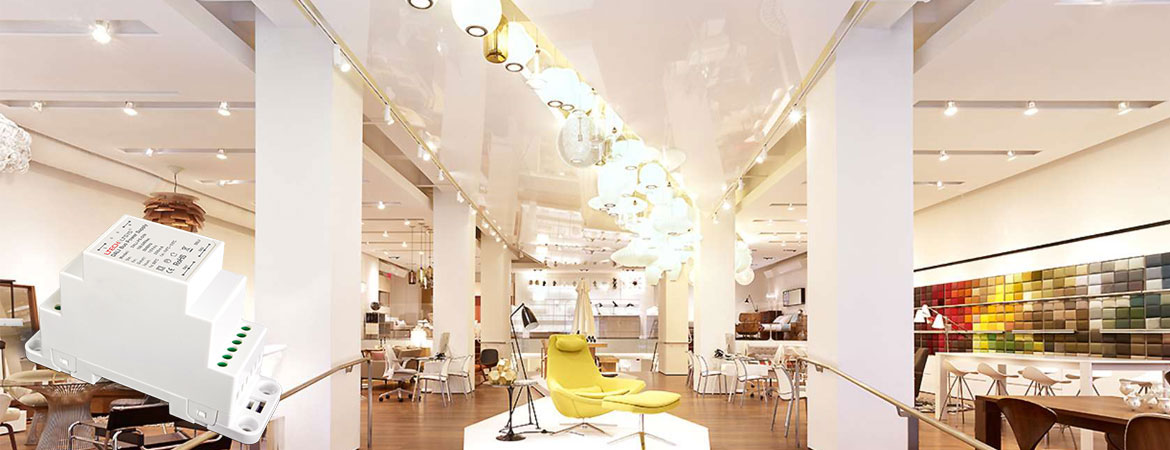

Application Scenarios

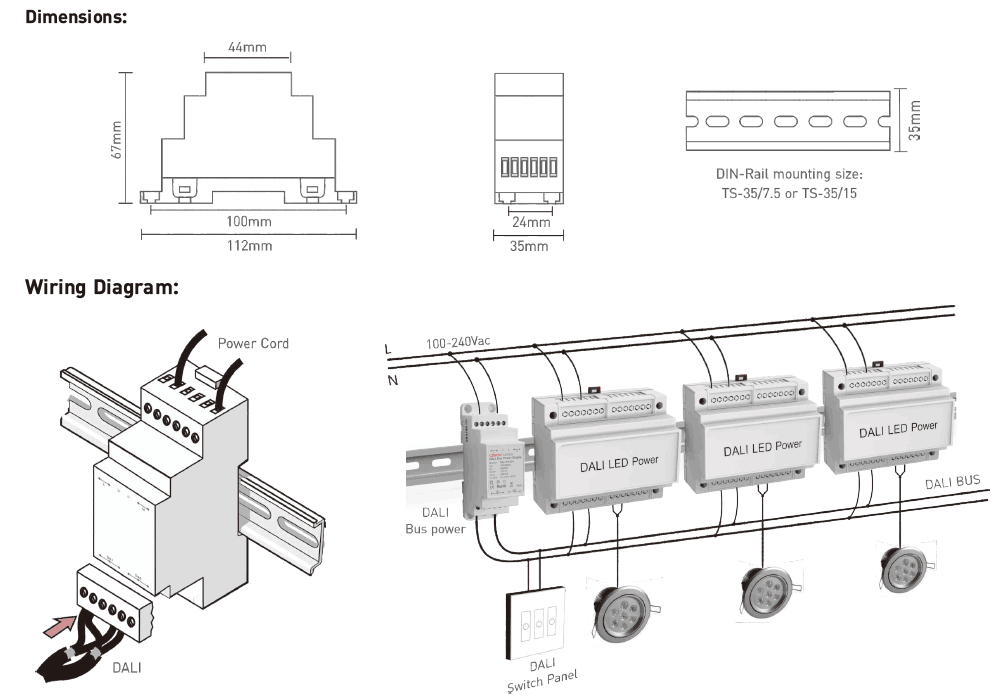

Installation and Wiring Guide
- Ensure AC power is disconnected before starting the installation.
- Mount the DALI-PS-DIN unit securely onto a standard DIN rail inside a suitable electrical enclosure.
- Connect the mains AC power (100-240V) to the 'L' (Live) and 'N' (Neutral) input terminals.
- Connect the two wires of your DALI bus cable to the 'DALI+' and 'DALI-' output terminals. DALI is polarity-insensitive, so the wires can be connected to either terminal.
- Run the DALI bus cable to your DALI devices, such as a DALI master controller, DALI dimming drivers, and sensors.
- After verifying all connections are secure, restore AC power to the unit.
- This product is designed for indoor use only. Do not expose to moisture.
- Ensure sufficient space around the unit for natural air cooling. Do not operate in a sealed, unventilated enclosure.
- This is a DALI bus power supply, not an LED driver. Do not connect LED lights or strips directly to the DALI output terminals.
- For a complete wiring diagram, please refer to the DALI-PS-DIN datasheet available in the Downloads section below.
What's in the Box
- ✓1 x DALI-PS-DIN DALI Bus Power Supply
- ✓1 x User Manual
⇩ Downloads & Documents
PDFDALI-PS-DIN
Frequently Asked Questions
Q: What is the purpose of a DALI bus power supply?
A:It provides the essential low-voltage power (15Vdc) for the DALI communication bus, allowing devices like controllers, sensors, and DALI dimmers to communicate. It does not power the LED lights directly.
Q: How many DALI devices can this power supply support?
A:The DALI-PS-DIN provides 200mA, which is the standard capacity to power a full DALI line of up to 64 addressable devices, as each device typically draws about 2mA from the bus.
Q: Is this a DALI dimmer or controller?
A:No, this is a power supply unit (PSU) designed specifically to power the DALI control bus. You need separate DALI master controllers and DALI dimming drivers to control and dim your lights.
Q: Can I use a generic 15V power supply instead of this?
A:It is strongly recommended to use a dedicated DALI bus power supply. The DALI-PS-DIN is specifically designed to meet the unique current, voltage, and safety requirements of a DALI lighting system.
Q: Does this unit require programming or a DALI address?
A:No, this power supply is a foundational component that does not have a DALI address and requires no programming. It works immediately upon being correctly wired and powered on.
Q: What is the main benefit of the DIN rail mounting?
A:DIN rail mounting allows for clean, organized, and secure installation inside standard electrical enclosures and control panels, which is the professional standard for commercial and industrial installations.
