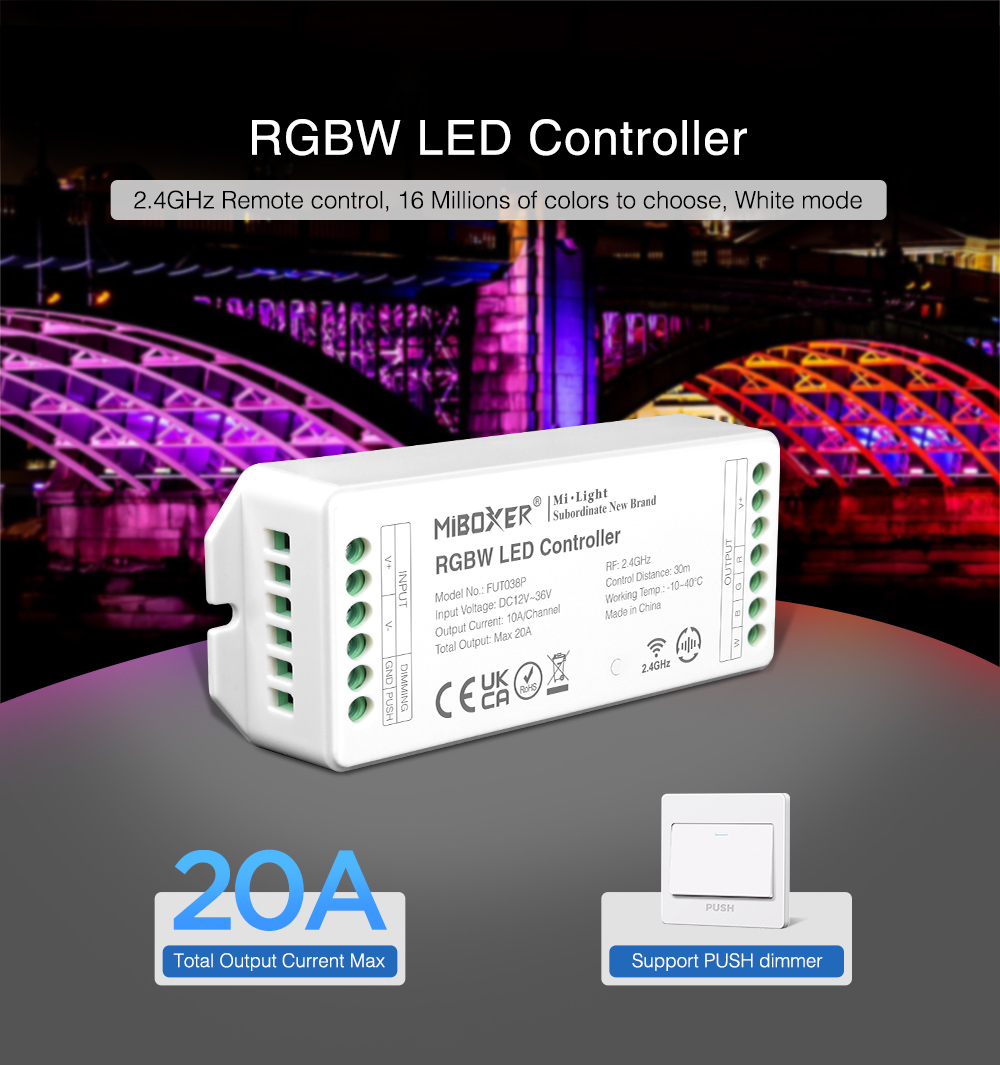

FUT038P RF RGBW LED Controller - 20A High Current Output

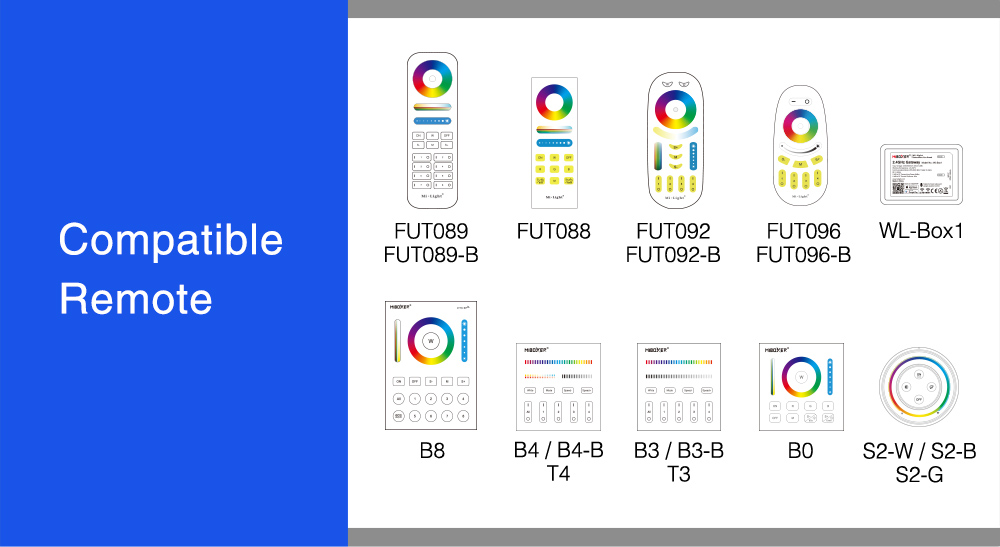

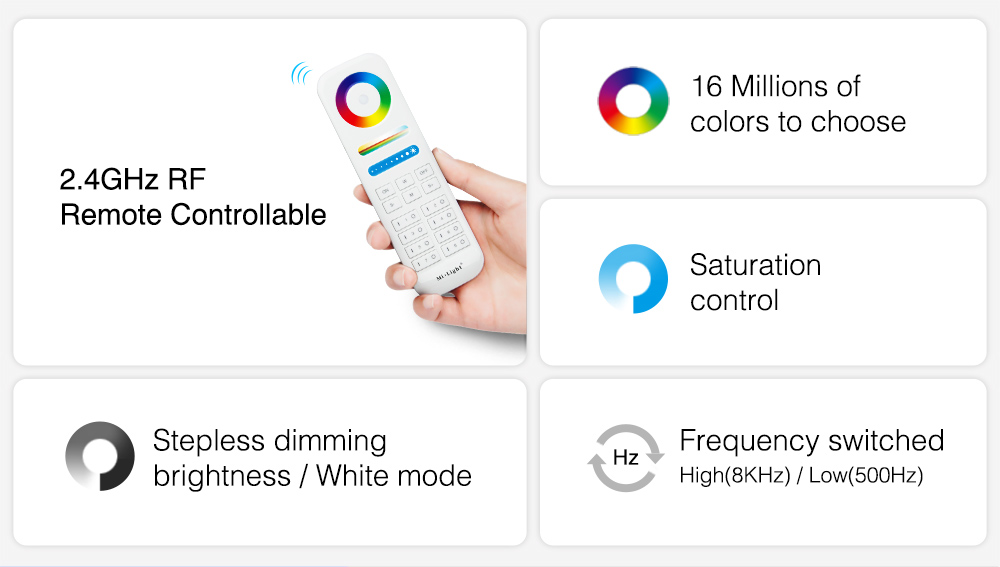

• 2.4G RF Remote controllable
• 16 Millions of colors to choose
• Brightness and saturation controllable

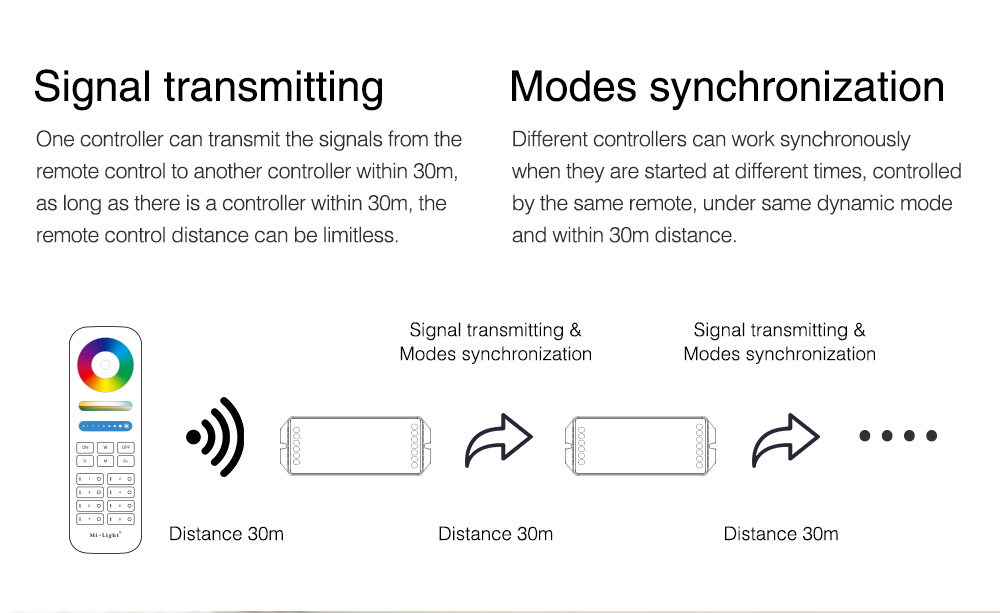

• Signal transmitting function make control distance limitless
• Support PWM high frequency (8KHz) / Low frequency (500Hz) switched

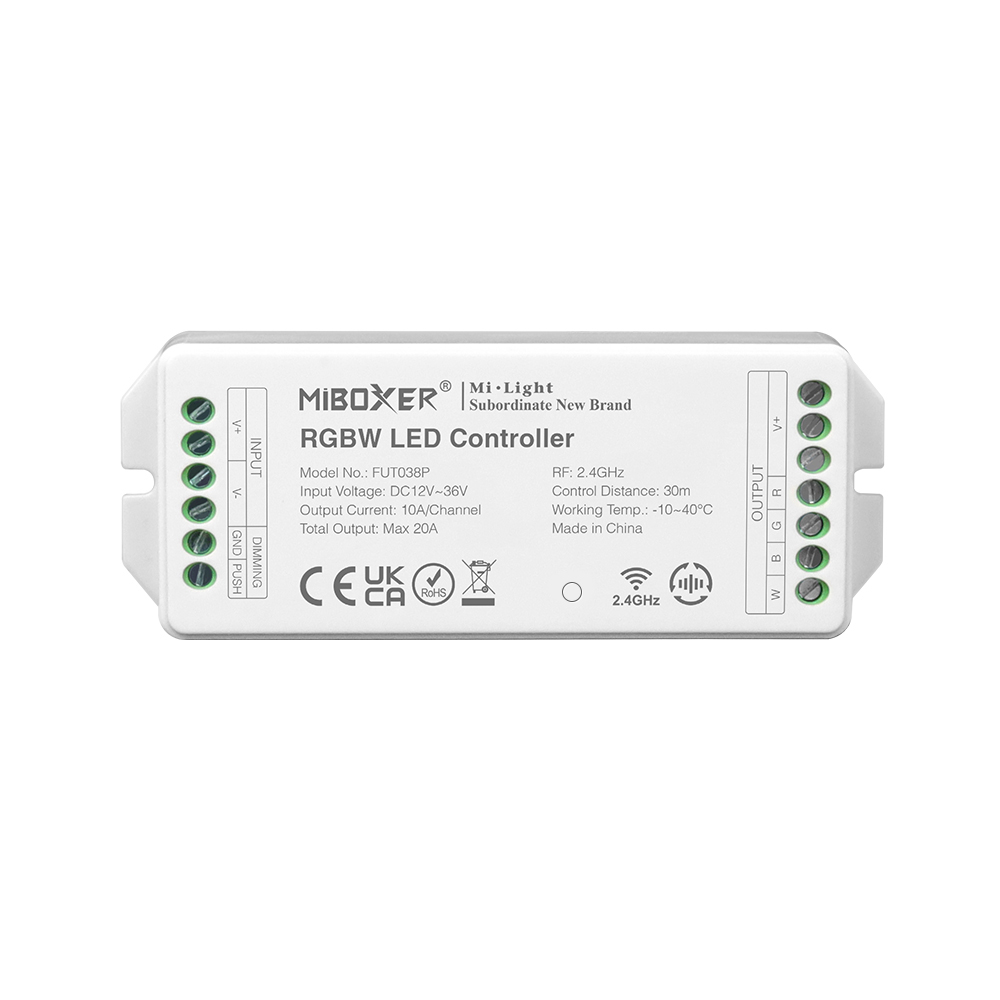

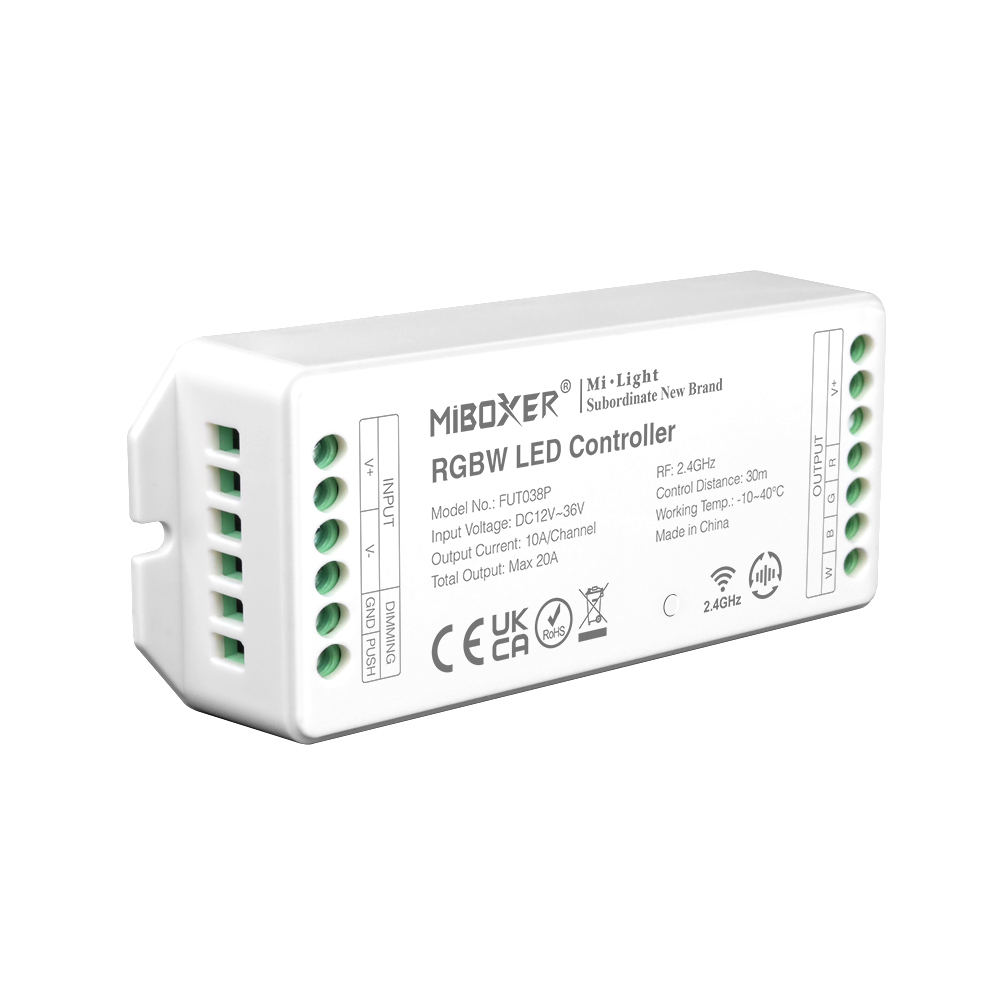

Product Name: RGBW LED Controller
Model No.: FUT038P
Input Voltage: DC12~36V
Output Current: 10A/Channel
Total Output: Max 20A
Working Temperature: -10~40℃
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
