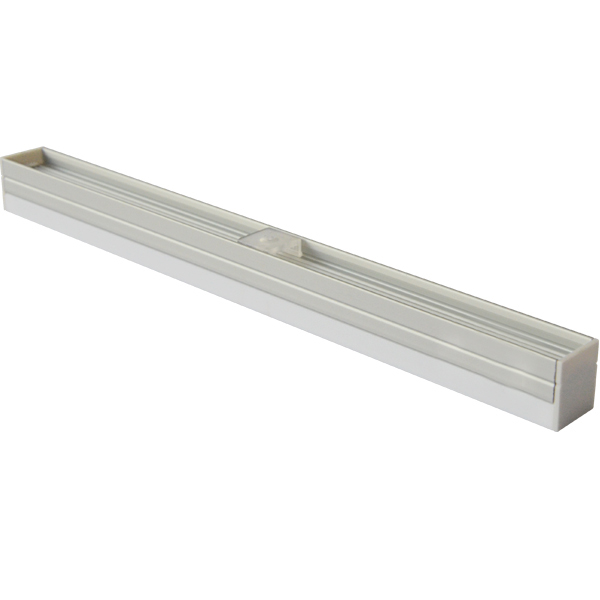

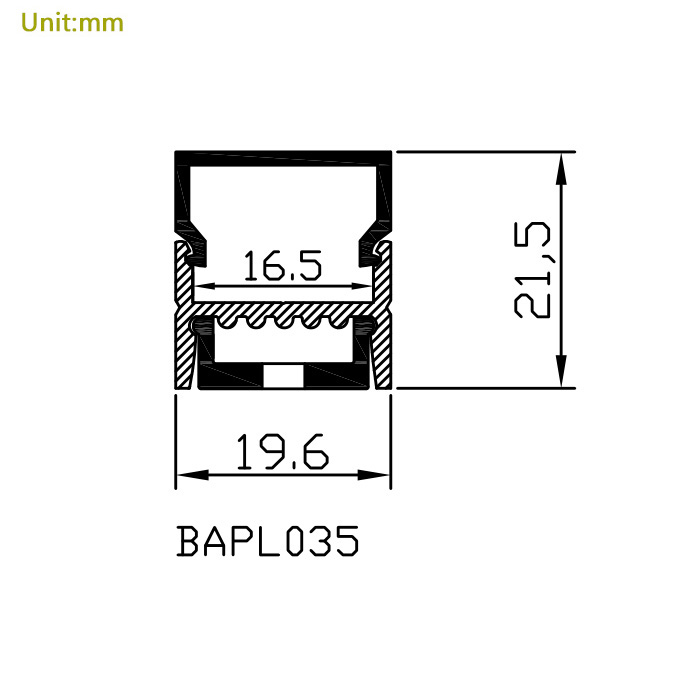

HL-BAPL035 Height 21mm Ceiling Recessed Extruded Aluminum Channel Profile Good heatsink For Width 16mm LED ribbon lights
Aluminum Profile BAPL035 is a slim, low-profile, Aluminum profile, channel, extrusion, for High to medium output flexible LED strip lights. Use this for professional LED light installations. LED Aluminum channels act as a heat sink to protect your high CRI LED strips from overheating. Aluminum extrusions for LED strips also waterproof RGB ribbon LED strips in outdoor installations. For added waterproofing use an IP65 or IP67 / IP68 LED Strip. This is the Aluminum Channel comes with one pair of clips, end-caps, and one PC/PMMA lens. Provide 5 kinds of covers: PC and PMMA opal, semi-clear and clear cover.
As the 2 meter and 2.5-meter aluminum channel are too light and long, the package size will exceed the DHL/UPS/TNT requirement(4feet), so extra long transportation costs ($170) will be required. The aluminum product itself is soft and easily damaged, so under normal circumstances, 2 meters and 2.5 meters of aluminum channel MOQ is 10 piece,
If you need a full 20-meter aluminum channel, we recommend that you use 20 1 meter long aluminum profiles splicing with some channel connector, both sides of the product using industrial right angle cutting, after installation does not affect the appearance
We also sell aluminum"=" "T" "L" "+" connectors, please check here to open the link.
If you are a wholesaler please contact our Sales Manager. we also have a wholesale price.
Under normal circumstances, 2 meters and 3 meters of aluminum channel MOQ is 10 piece,
Because the 2 meters and 3 meters aluminum channel is too light too long, packaging volume is relatively large, and shipping cost is expensive, the aluminum product itself is soft and, easily damaged, the DHL express company will refuse delivery, so we do not assume the risk of product being deformed and damaged in transit !
If your needs in 1-20 meters, we recommend that you use a 1-meter long aluminum channel splicing, both sides of the product using industrial right angle cutting after installation does not affect the appearance.
Surface process: Anodic oxidation
UV resistant: Yes
Lens: Clear / Semi-clear / opal matte
Diffuser material: PC/PMMA
Material: Aluminum 6063
Inside Width For Max Strip PCB: 0.59" (15mm)
End cape material: Aluminum 1070/ABS
Clips material: PC/SUS304

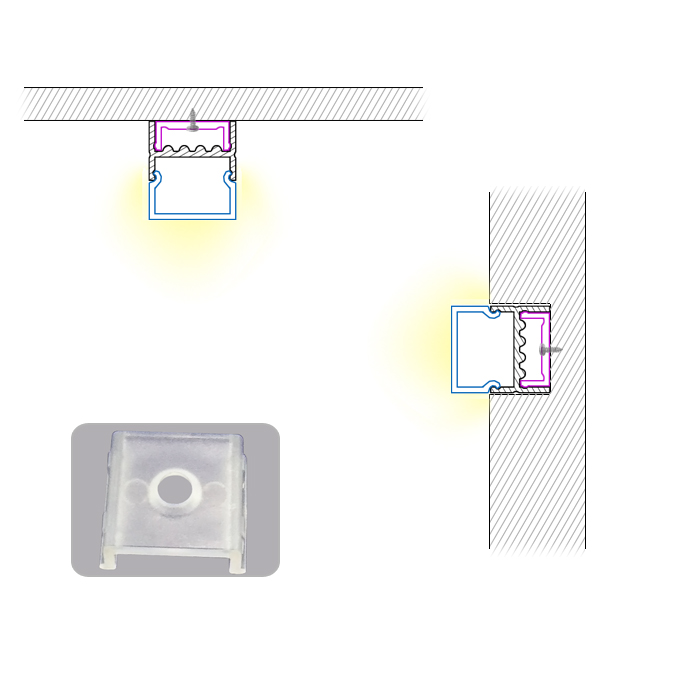

Installation mode: Embedded
Warranty: 3 Years
1.High-quality diffuser, placing/removing from the front on click, For indoor use only
2.Made from anodizing aluminum

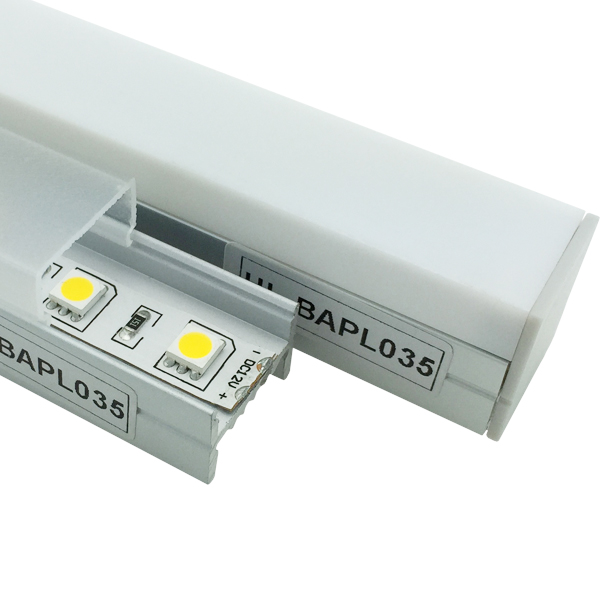

3.Suitable for flexible 3528/5050/3014/2835/5630/5730/3535SMD flexible led strip lights

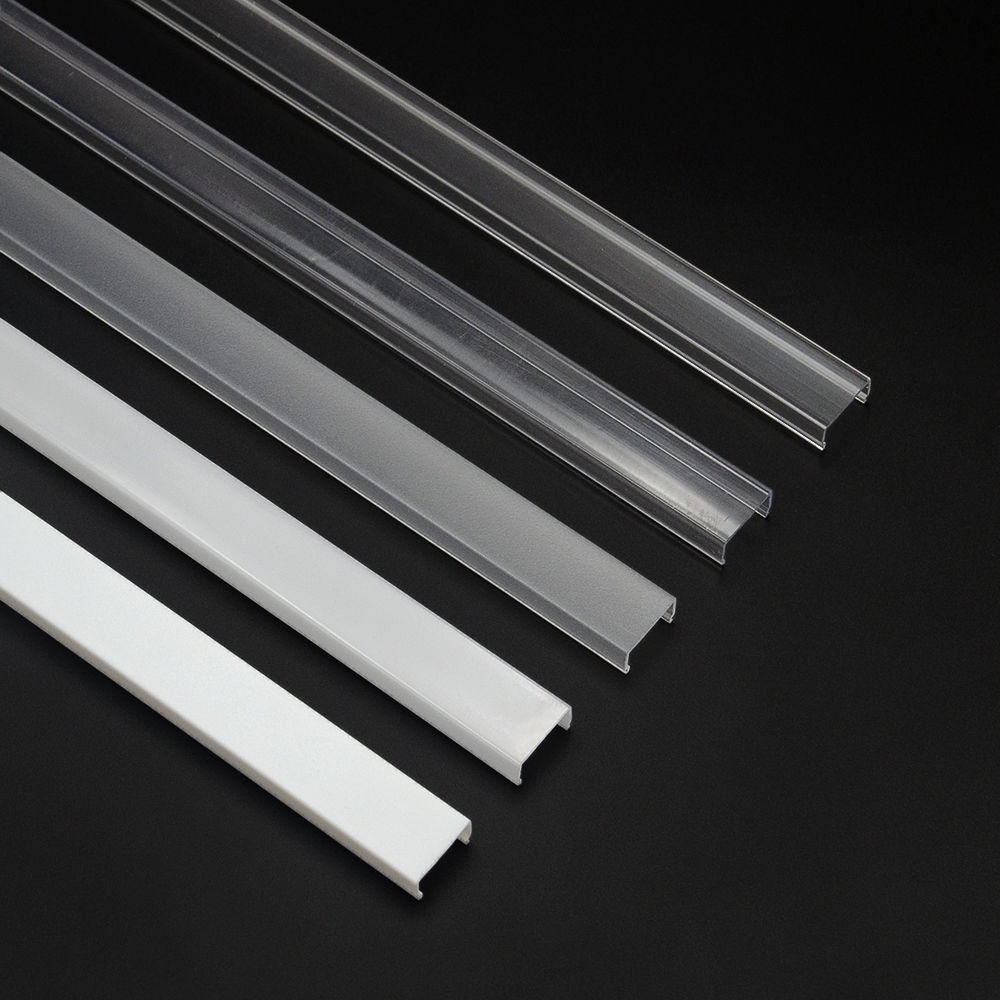

4.Available with PC/PMMA opal matte diffuser, semi-clear matte diffuser, clear diffuser
5. Not LED dots show on opal diffuser (high density LED ribbon)
6.Available length – 1m and 2m(MOQ:10PCS)
1. Furniture production (kitchen/office)
2. Stores shelf LED lighting
3. Heat sink and physical protection to the LEDs
4. Independent LED lamp
5. Interior light design (stairs / storage / floor)
6. Exhibition boot LED lighting
