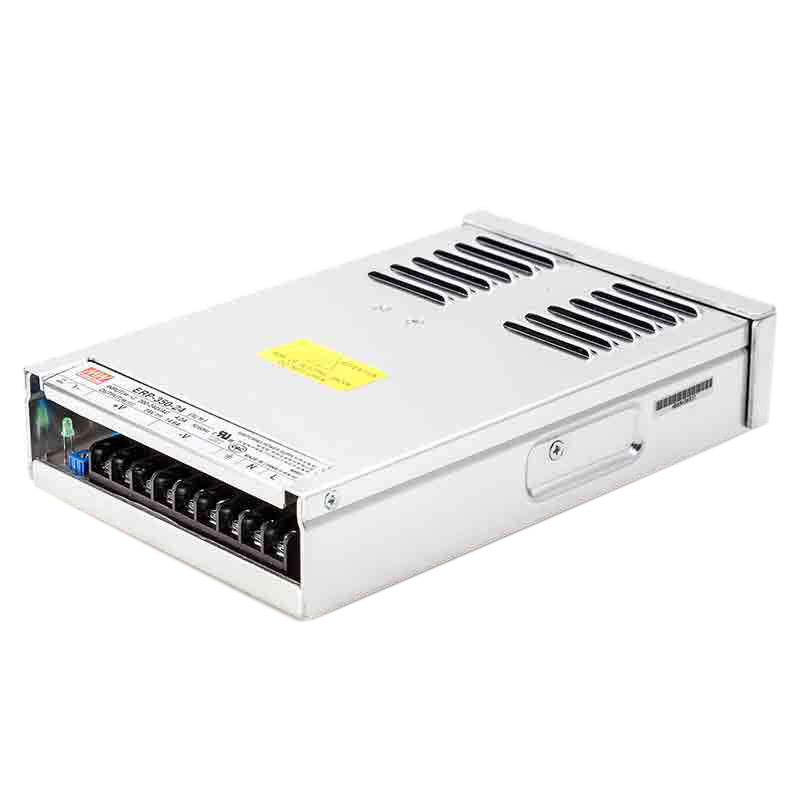

AC180 ~ 264V ERP-350-24 Input Range Mean Well High-efficacy Rainproof Series DC24V 350Watt UL-Listed LED display Lighting Power Supply
Withstand 300VAC surge input for 5 seconds
Design against rain splash
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
LED indicator for power on
Low cost, high reliability
100% full load burn-in test
3 years warranty
Note: AC input 180-264VAC
DC voltage: 24V
Current Rating: 14.6A
Current range: 0-14.6A
Rated power: 350.4W
Ripple and Noise: 150mVp-p
Voltage adjustment range: 21.6-26.4V
Voltage accuracy: ± 1.0%
Line regulation: ± 0.5%
Load regulation: ± 0.5%
Start, rise time: 1500ms, 200ms / 230VAC
Hold time: 20ms / 230VAC
Voltage range: 180 ~ 264VAC 254 ~ 370VAC
Frequency Range: 47 ~ 63Hz
AC current: 4A / 230VAC
Surge Current: 90A / 230VAC
Leakage current: <1mA / 240VAC
AC inrush current (max.) 90A/230VAC
Over temperature protection Shut down O/P voltage, recovers automatically after temperature goes down
Over voltage protection Protection type: Hiccup mode, recovers automatically after fault condition is removed
Withstand voltage I/P-O/P: 3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Working temperature: -30~+60ºC (refer to output derating curve)
Safety standards: UL60950-1,GB4943.1-2011(except for ERP-350-12) approved
EMC standards: Refer to EN55022 (CISPR22) class A
More product specification, pls see MeanWell website: https://www.meanwell.com/productSeries.aspx
