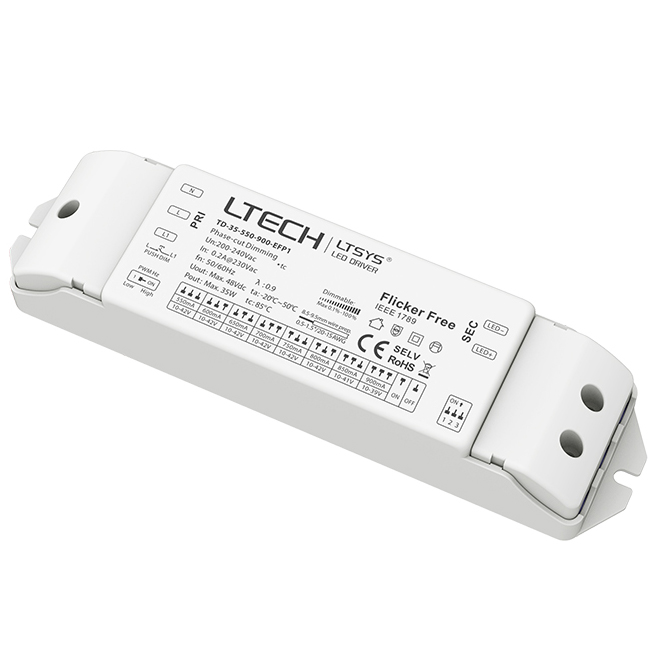

LED Intelligent Driver 35W 550-900mA（200-240Vac）TD-35-550-900-EFP1 (Replaced by TD-36-450-1200-EFP1)
LED Intelligent Driver

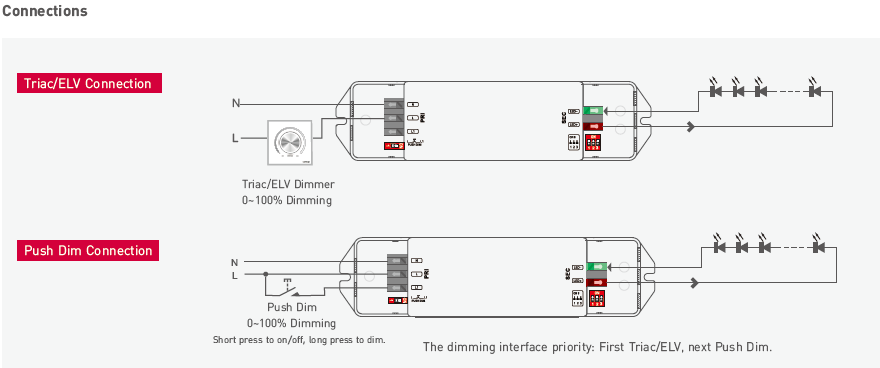

Support Leading edge (Triac), Trailing edge (ELV) and Push Dimmer.
Built-in SCM, dimming curve and smoothing time can be customized.
Dimming range: 0~100%, dimming depth: Max. 0.01%.
Flicker-free (IEEE 1789), achieve the level of exemption assessment.
Innovative thermal management technology, intelligent power life protection.
Multi-current & wide voltage, suitable for different power LED.
Overload / Over-heat / Short circuit protection, recover automatically.
Class 2 power supply. Full protective plastic housing.
Compliant with Safety Extra Low Voltage standard.
Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ.
