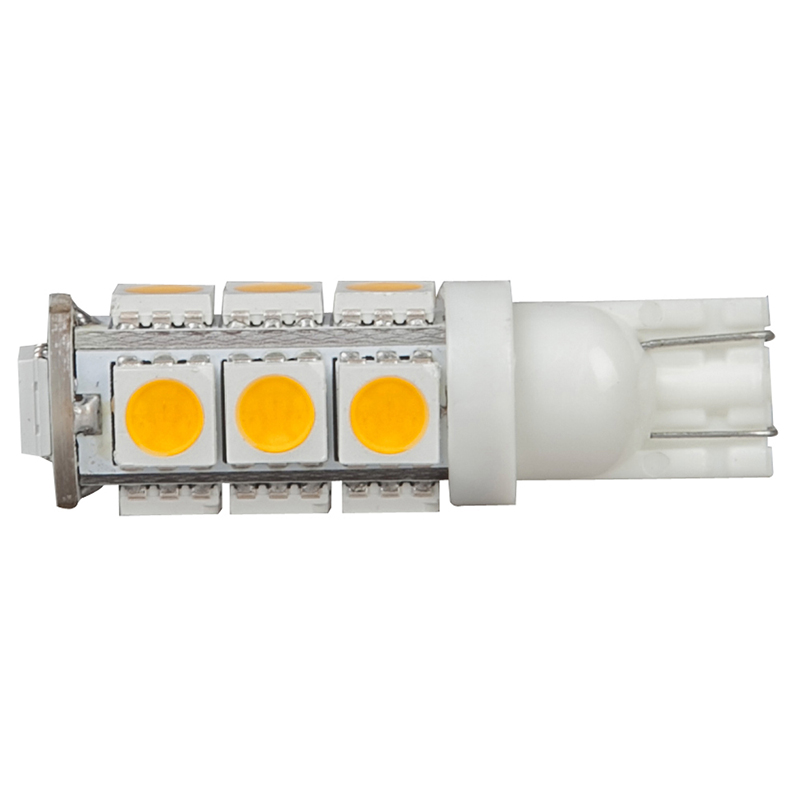

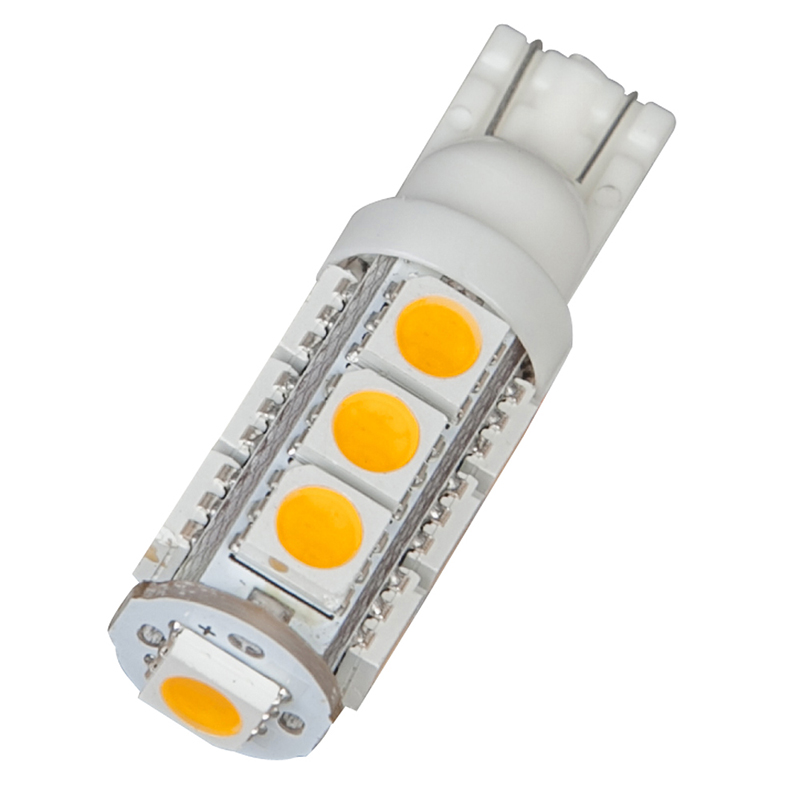

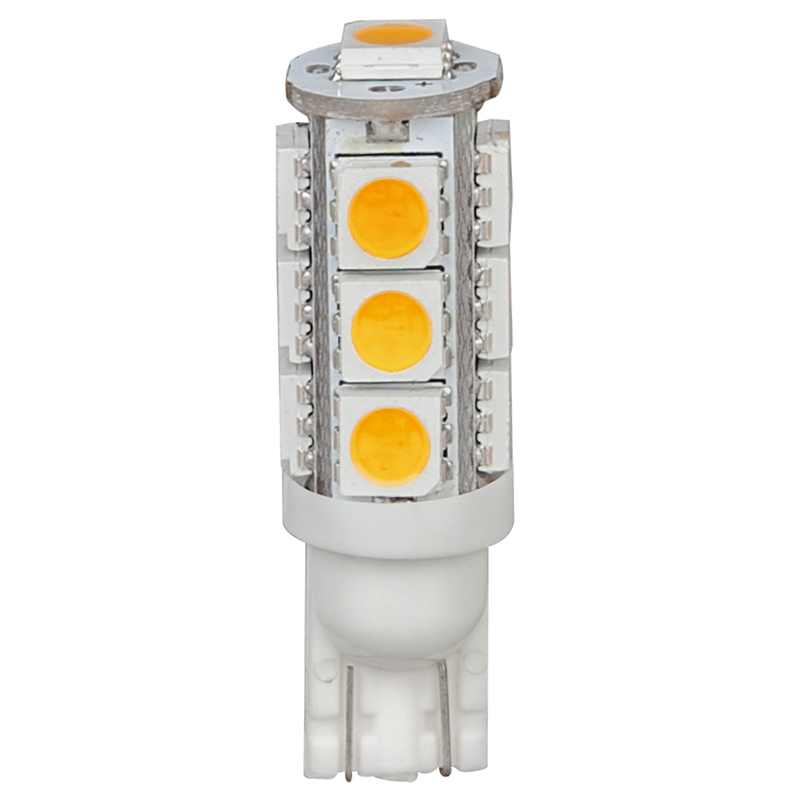

Miniature Wedge Retrofit 194 921 168 LED Bulb, 13 SMD 5050 LEDs, DC12V 2.6W, 15-20W Equal, 5-Pack, 3000K 6000K optional
Input voltage is 12V DC
Power consumption is 2.6 Watts
Uses 13 pcs SMD 5050 LEDs
Luminous flux up to 200 lumens maximum
Nearly equivalent to standard 15-20W halogen/incandescent bulb
Optional colors are cool white and warm white
360-degree wide beam floodlight
0.39-inch diameter x 1.49-inch total length
For use in numerous boat and RV applications such as ceiling lights, dome lights, step lights, cabin lights, footwell lights, bow lights, and anchor lights.

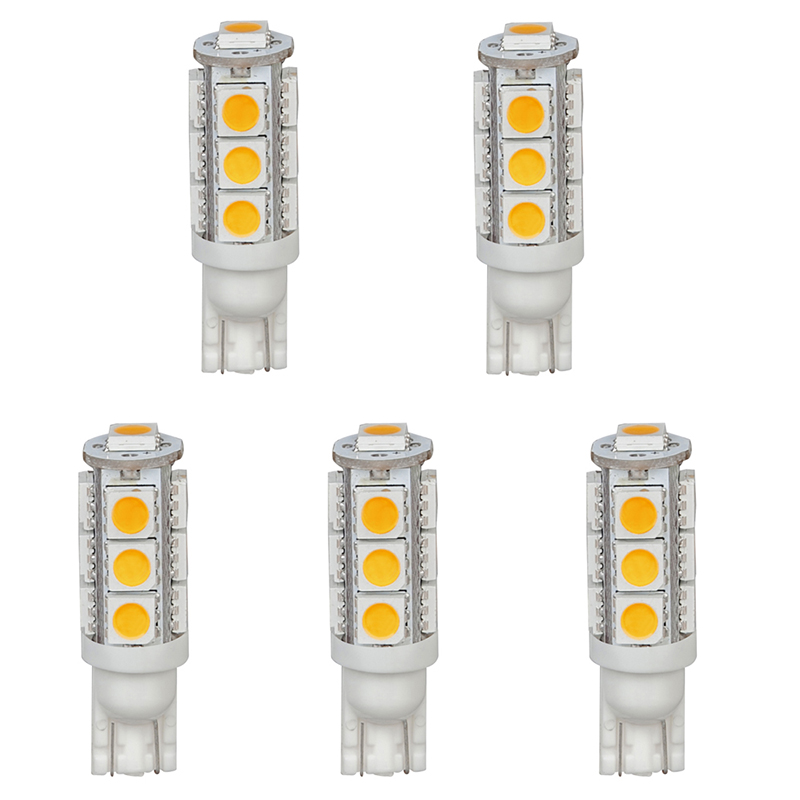

The package includes 5 pcs bulbs
Standards and Certifications
Wattage: 2.6 Watt
Halogen Equivalent: 15-20 Watt
Voltage: 12V DC
Bulb Base: Miniature Wedge
Bulb Shape: 194 921 168
Luminous Flux: 200lm per LED
Beam Angle: 360 Degree
LED Brand: Epistar
LED Type: SMD 5050 LEDs
LED Quantity: 13 Pcs
LED Color(s): Cool White / Warm White
CCT or Wavelength: 6000K / 3000K
Color Rendering Index: 80
Diameter: 10mm (0.39 in.)
Length (M.O.L.): 37.8mm(1.49in.)
RoHS Compliant: Yes
LED Lifetime: 40,000 Hour
