Product Information

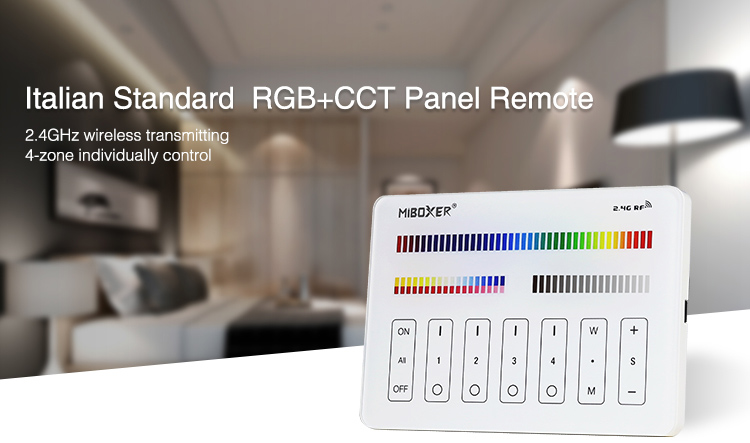

Experience sophisticated lighting control with the Miboxer ML-M4, a sleek and intuitive smart light control panel designed for comprehensive management of your ambient lighting. This touch-sensitive wall panel gives you command over four independent zones, allowing you to orchestrate complex lighting scenes with ease. Harness the full spectrum of RGBCCT lighting, from 16 million vibrant colors to a nuanced range of tunable white light. The ML-M4's reliable 2.4GHz RF technology ensures a stable connection up to 30 meters, making it the perfect central hub for controlling your home or commercial space's RGBCCT LED strips. Its minimalist design and flexible power options—either battery-operated for wire-free convenience or hardwired for a permanent installation—make this wall led panel a versatile and elegant upgrade for any environment.
Key Features

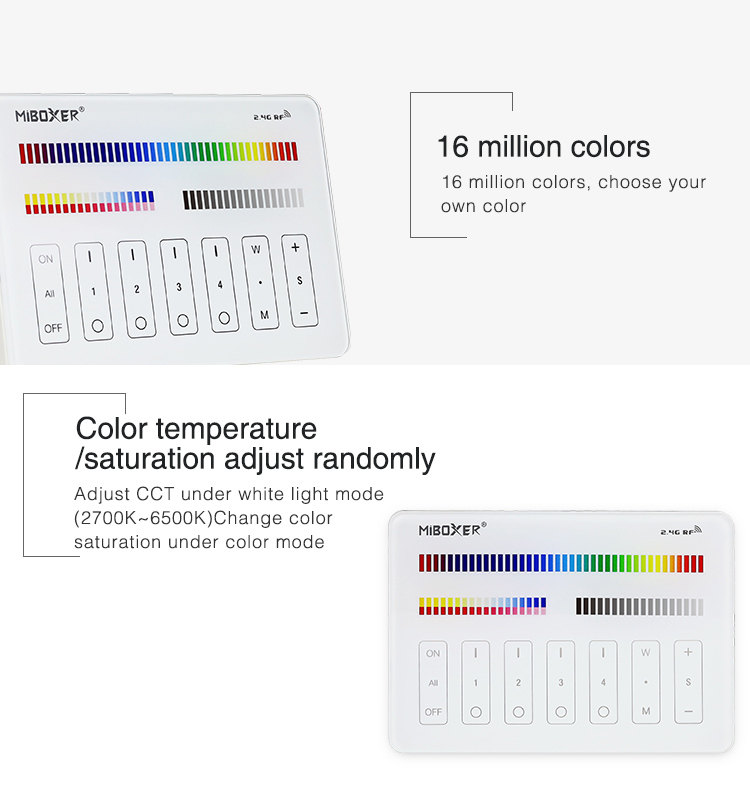

Full Spectrum RGBCCT Control
Adjust between 16 million colors, tune white light from warm to cool (2700K-6500K), and control saturation and brightness for the perfect ambiance.

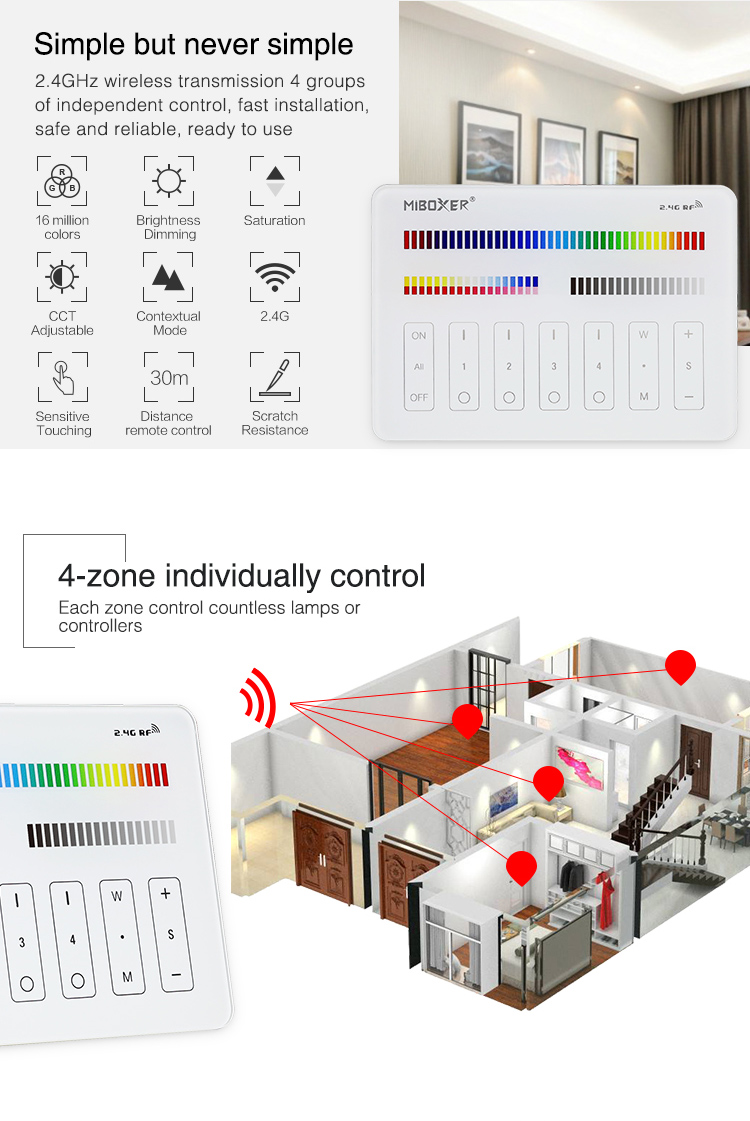

4-Zone Independent Management
Group your lights into four distinct zones and control each one individually or synchronize them all for unified lighting effects.

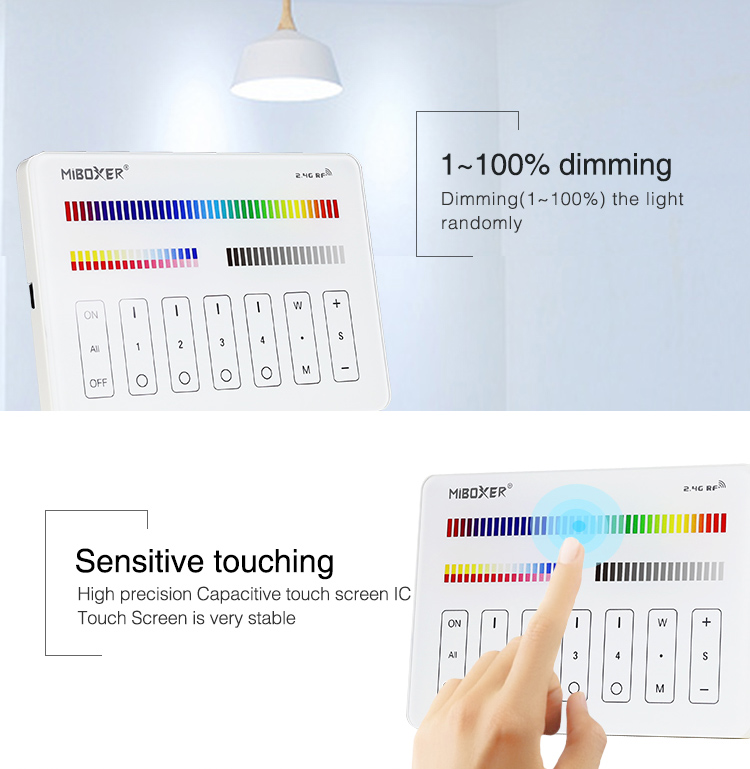

Sensitive Touch Interface
Features a high-precision capacitive touch screen with a color wheel and sliders for smooth, responsive, and accurate adjustments.
Flexible Power Options
Choose between battery power (2xAAA) for effortless placement or a hardwired AC-to-DC drive for a permanent, maintenance-free setup.

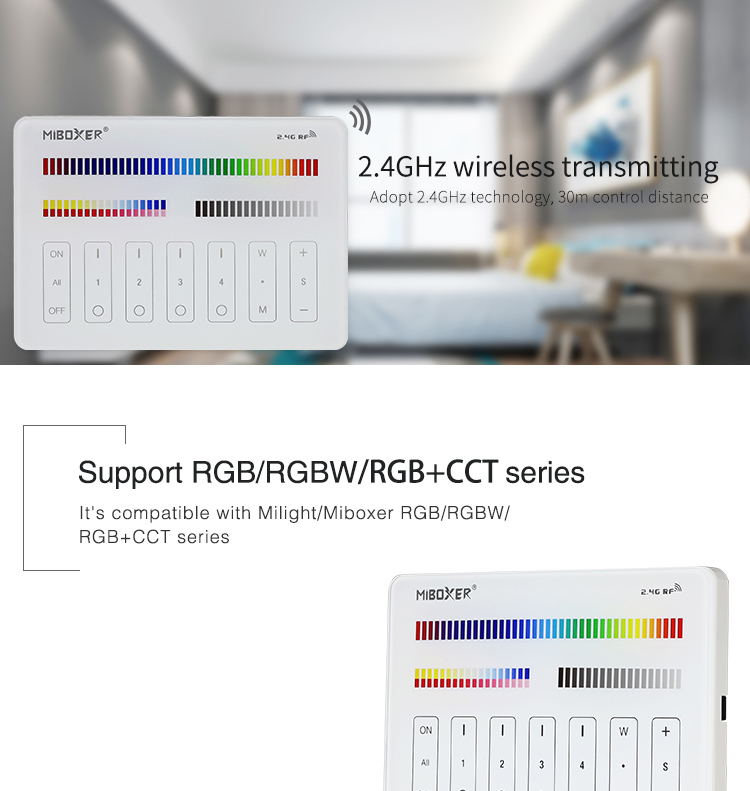

Long-Range RF Transmission
Utilizes a stable 2.4GHz wireless signal with a 30-meter (98 ft) control distance that operates reliably through walls and obstacles.
Technical Highlights
- 16 Million Colors + Tunable White (2700K-6500K)
- 2.4GHz GFSK Wireless Technology for Stable Control
- Synchronous Group Control Across Multiple Zones
- High-Precision Capacitive Touch IC
- Low Power Consumption for Long Battery Life
Product Specifications
| Parameter | Details |
|---|---|
| Product Name | 4 Zones RGBCCT Smart Touch Panel Controller |
| Model No. | ML-M4 |
| Input Voltage | 3V (2*AAA Battery) or AC90-120V / AC180-240V via optional drive |
| RF Technology | 2.4GHz |
| Modulation Method | GFSK |
| Transmitting Power | 6dBm |
| Control Distance | 30m (98 ft) |
| Working Temperature | -20 ~ 60°C |
Application Scenarios
How to Control & Use This Controller

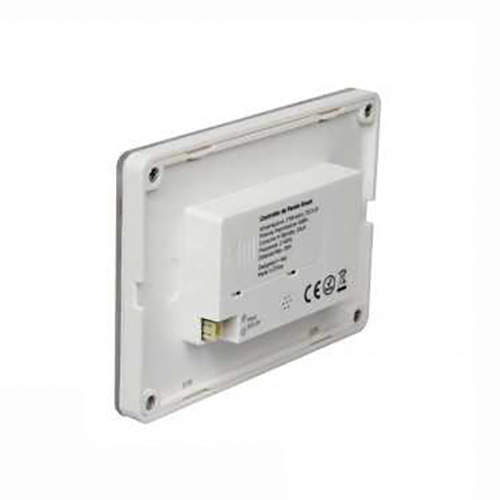

- Powering the Panel: For battery operation, insert two AAA batteries. For a permanent installation, connect the appropriate AC to DC drive (sold separately) to your mains power and the panel's input terminals.
- Linking to Lights: Power on your compatible Miboxer lights or controller. Within 3 seconds, press the 'ON' (I) button for your desired zone (1-4) on the touch panel. The light will blink three times to confirm a successful link.

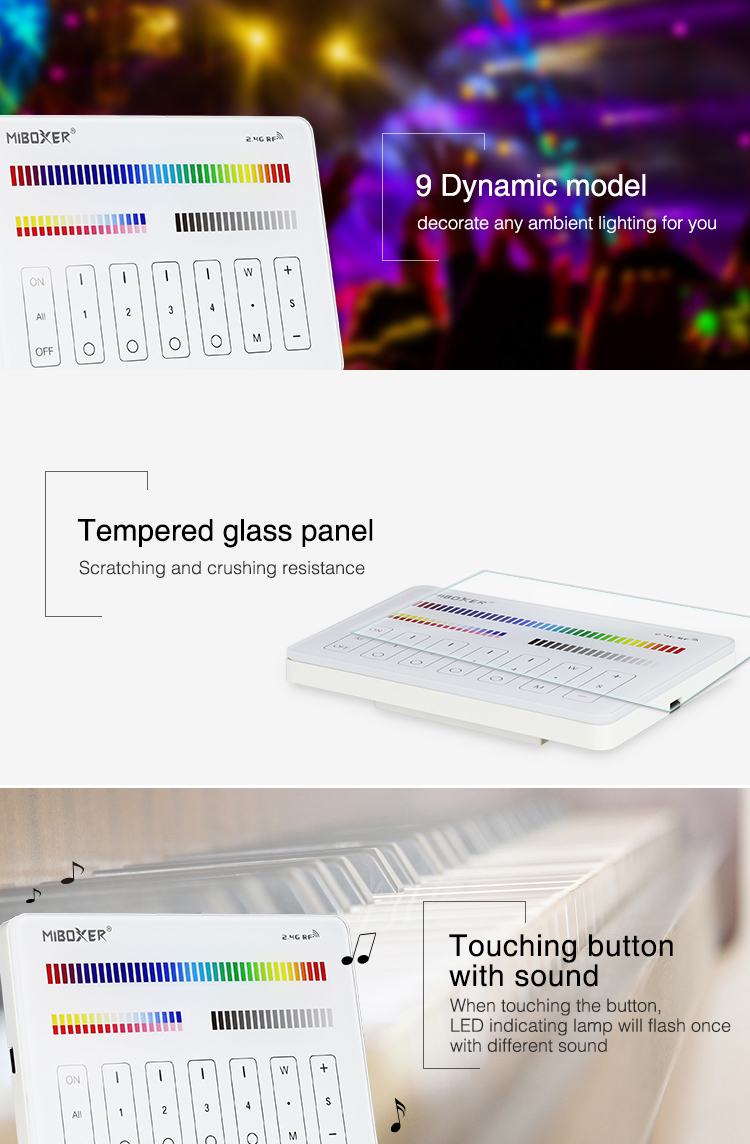

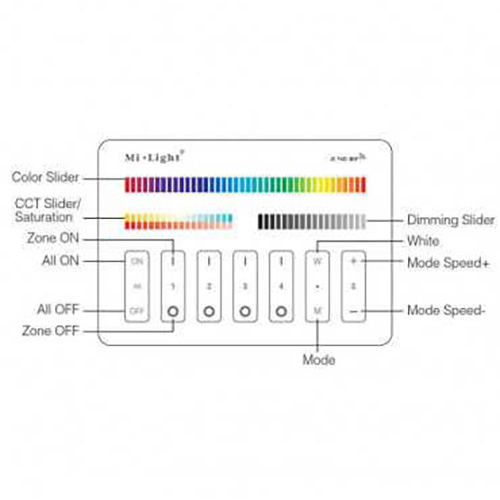

- Operating the Controls: Use the color wheel to select from millions of colors. Use the dedicated sliders to adjust white light color temperature and overall brightness. Press the 'M' button to cycle through preset dynamic modes.
- Unlinking Lights: To unlink a light from a zone, power it on. Within 3 seconds of it turning on, press the 'ON' (I) button for that zone five times quickly. The light will blink ten times to confirm it has been unlinked.
- This product is an RF remote transmitter and must be paired with compatible Miboxer 2.4G series receivers or light fixtures.
- The 30m control distance is measured in an open environment; walls and other electronic interference may reduce the effective range.
- When using an AC drive, ensure the selected drive's voltage range matches your local mains power (e.g., 90-120V for North America).
- For more information, see our guide on how to choose LED strip light controllers.

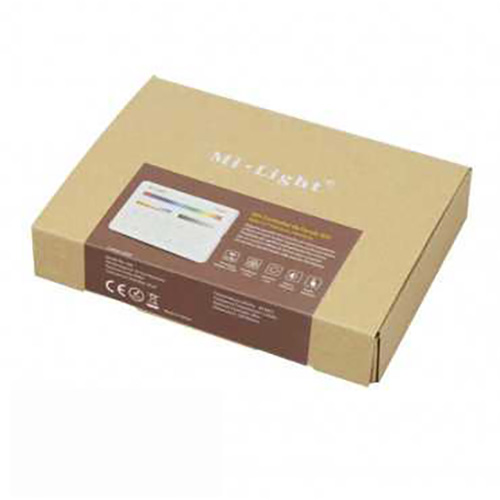

What's in the Box
- ✓1 x ML-M4 RGBCCT 4 Zones Smart Touch Panel Controller
Frequently Asked Questions
Q: Do I need anything else to use this panel?
A:Yes. This is a remote transmitter. You need compatible Miboxer 2.4G RGBCCT LED controllers (receivers) connected to your LED strip lights, or Miboxer lights with a built-in receiver.
Q: Can this control four different types of lights, for example one RGB and one CCT?
A:This panel is designed specifically for RGBCCT (5-channel) lights. While it may control simpler lights with reduced functionality, it is optimized for pairing with Miboxer RGBCCT LED controllers for full control.
Q: How is the battery-powered version installed?
A:The battery version requires no wiring. It can be mounted on any surface using standard mounting hardware, giving you the flexibility to place it anywhere within the 30m RF range.
Q: Can I control all four zones at the same time?
A:Yes. After linking your lights to their individual zones, you can use the master ON/OFF controls at the bottom of the panel to control all zones simultaneously for synchronized effects.
Q: What are RGBCCT LED strips?
A:RGBCCT LED strips are advanced 5-in-1 strips that combine RGB (Red, Green, Blue) LEDs with CCT (Correlated Color Temperature) LEDs, allowing you to create millions of colors plus a full spectrum of tunable white light from warm to cool.
