LED Light Diffuser Channel Aluminum For 12mm LED Lighting Strip
- $9.99 $4.9850% off
- $50.00 $34.9830% off
- $59.98 $19.9867% off
- $45.00 $32.9827% off
- $19.98 $16.9815% off
Made from high-quality silver anodized aluminum, this recessed or surface mount aluminum led light channel is for 8mm, 10mm, or 12mm flexible or rigid led strip lights like our COB led strips. LED strip diffuser channel is an aluminum channel with a PC or PMMA led light cover. The LED light strip with a led diffuser channel can achieve more even lighting effects and soft led lighting. Silver, white, and black aluminum color can be selected to echo your home style.
The LED strip diffuser channel comes with one end cap without hole, one end cap with wire hole, and two mounting clips. Endcap without hole to protect the led strip light from dust and external damage. End cap with wire hole to let the led lighting strip connect the led dc power supply or the led light controller to power or control the led strip lighting. Mounting clips make the led aluminum channels can be mounted in walls, furniture, or other indoor led linear lighting projects.
As the 2m and 3m led aluminum profiles are too light and long, the package size will exceed the DHL/UPS/TNT requirement(4feet), so extra long transportation costs ($170) will be required. The aluminum led strip lighting channel product itself is soft and easily damaged, so under normal circumstances, 2m and 3m extruded aluminum channels' MOQ is 10 pieces.
If you need a full 20-meter aluminum light diffuser channel, we recommend that you use 20 1-meter long led light strip channel splicing with some channel connectors, both sides of the product using industrial right angle cutting. After installation it does not affect the appearance.
|Material||6063-T5 Aluminum Alloy|
|Aluminum Color||Silver /White /Black|

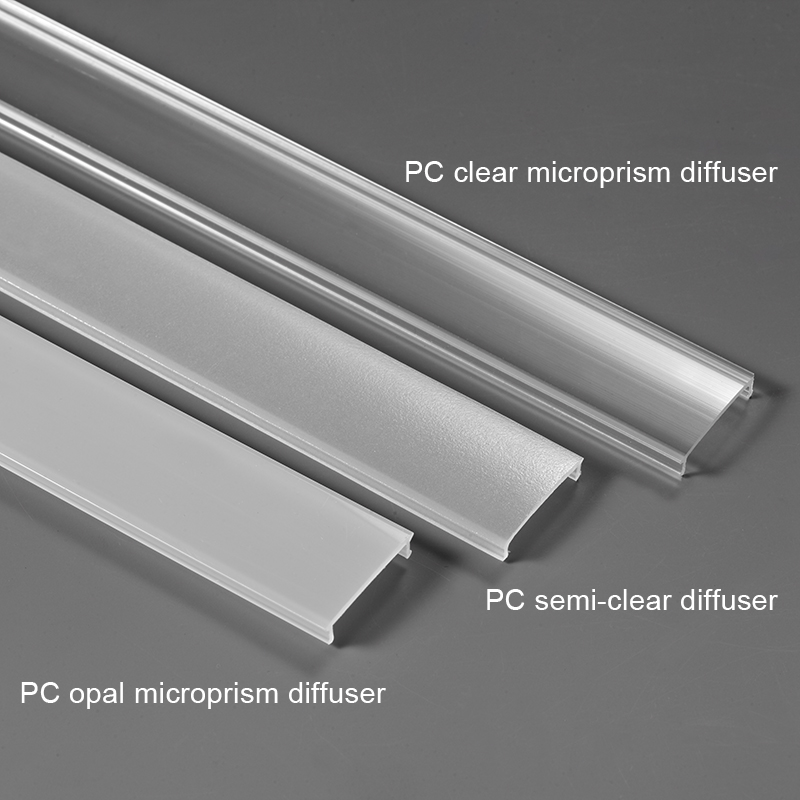

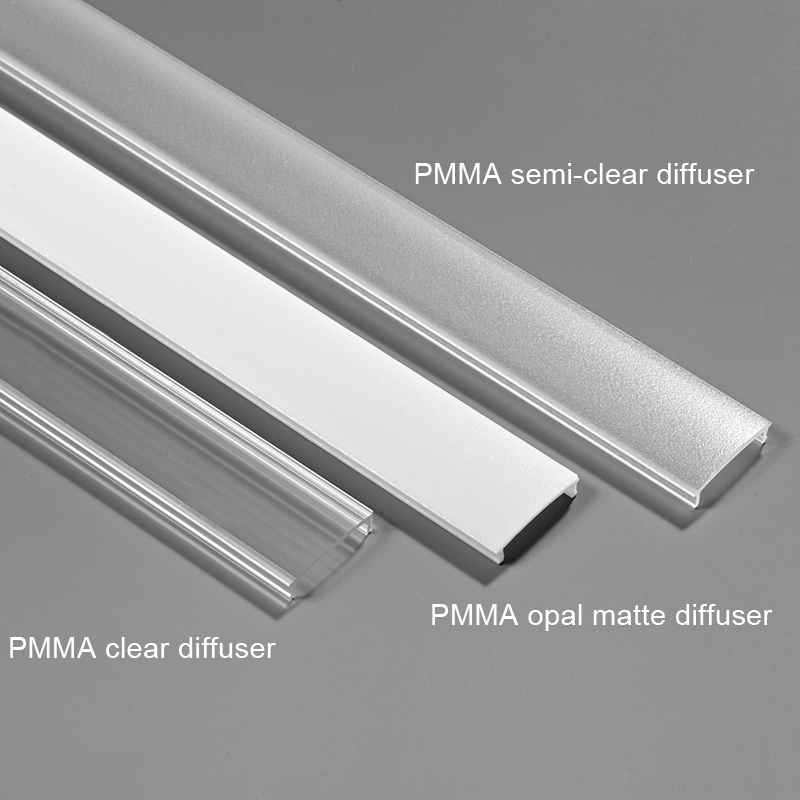

|LED Diffuser||PMMA opal matte diffuser /PMMA semi-clear matte diffuser /PMMA clear diffuser /PC opal microprism diffuser /PC semi-clear diffuser /PC clear microprism diffuser|
|Accessory||End cap without hole, end cap with wire hole, mounting clips|
|Apply to||8mm, 10mm, or 12mm flexible led strip lights|

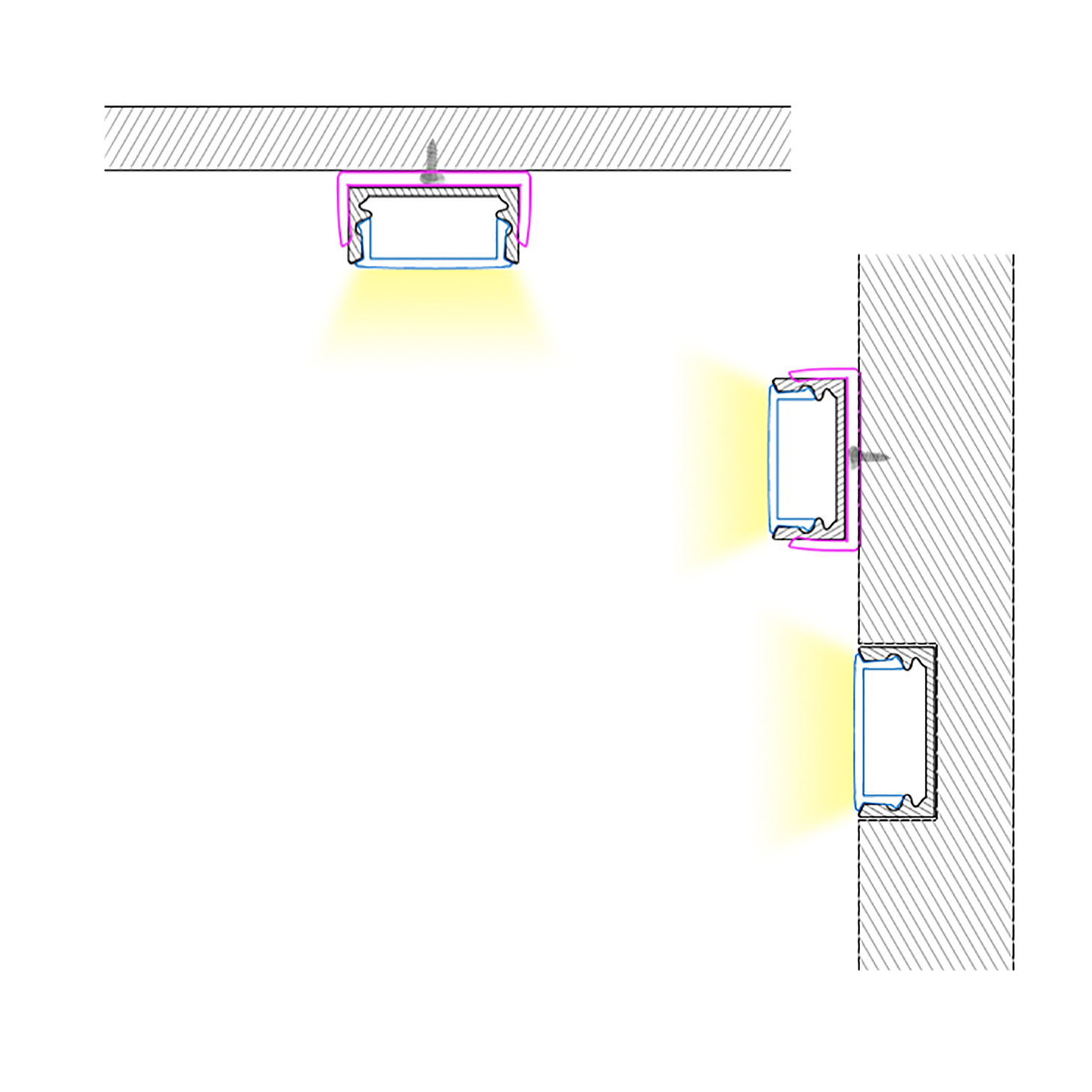

|Installation||Surface /Recessed Mounting|
1* Aluminium Channel LED Profile With Diffuser
1* End Cap Without Hole
1* End Cap With Wire Hole
2* Mounting Clips Per Meter
Applications - Ultimate Guide to LED Aluminum Channel

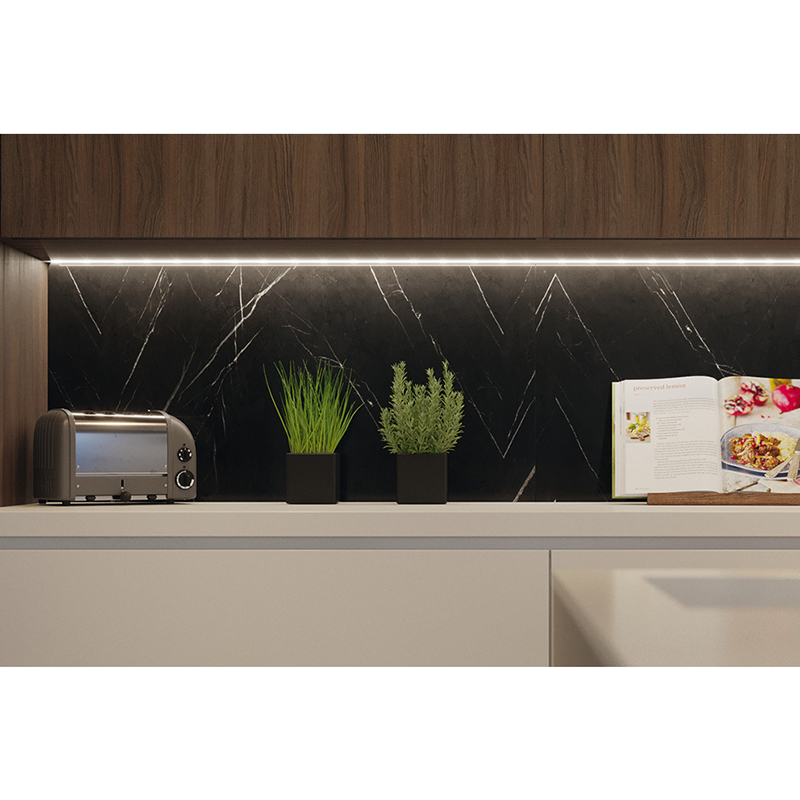

1. Furniture production (kitchen/office)
2. Stores shelf LED lighting
3. Heat sink and physical protection to the LEDs
4. Independent LED lamp
5. Interior light design (stairs / storage / floor)
6. Exhibition boot LED lighting
