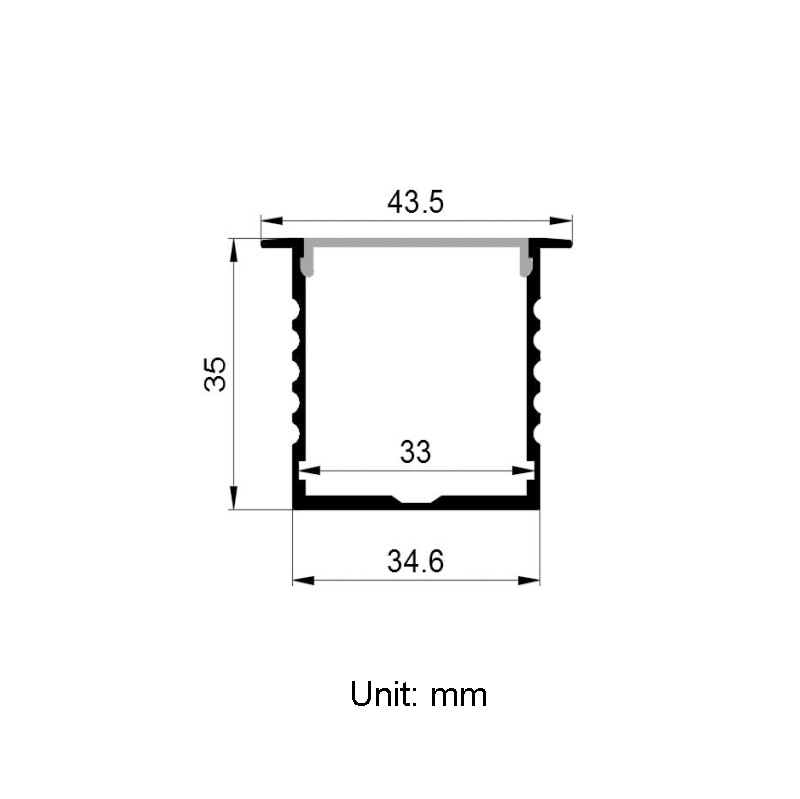

Recessed LED Strip Light Aluminum Channel With 33mm Inner Width
This recessed mounted led aluminum channel with 33mm/1.3in inner width is made of high quality aluminum alloy, suitable for single color 2835/3528 quad row led strip lights. For led heat dissipation and led strip protection, aluminum LED profiles play a positive role. This led profile can be recessed in walls, furniture, and plasters, it is integrated with the decoration object, and the surface does not protrude, perfectly for linear residential lighting and commercial lighting.
LED strip channels with different light diffusers will have different lighting effects, choose the right led diffuser from the 6 kinds of PC/PMMA diffusers, PC opal microprism diffuser, PC clear microprism diffuser, PC semi-clear microprism diffuser, PMMA opal matte diffuser, PMMA semi-clear matte diffuser, and PMMA clear diffuser. We provide silver, white, and black aluminum channel color to follow your home fashion style. 1m led aluminum profile is the most common length, and you can cut the aluminum led light channel to any length. For precise length to meet your linear lighting project, please feel free to contact us to customize the channel aluminum length.
As the 2m and 3m led aluminum profiles are too light and long, the package size will exceed the DHL/UPS/TNT requirement(4feet), so extra long transportation costs ($170) will be required. The aluminum led strip lighting channel product itself is soft and easily damaged, so under normal circumstances, 2m and 3m extruded aluminum channels' MOQ is 10 pieces.
If you need a full 20-meter aluminum light diffuser channel, we recommend that you use 20 1-meter long led light strip channel splicing with some channel connectors, both sides of the product using industrial right angle cutting. After installation it does not affect the appearance.
Standards and Certifications
|Material||6063-T5 Aluminum Alloy|
|Aluminum Color||Silver /White /Black|
|LED Diffuser||PMMA opal matte diffuser /PMMA semi-clear matte diffuser /PMMA clear diffuser /PC opal microprism diffuser /PC clear microprism diffuser / PC semi-clear microprism diffuser|

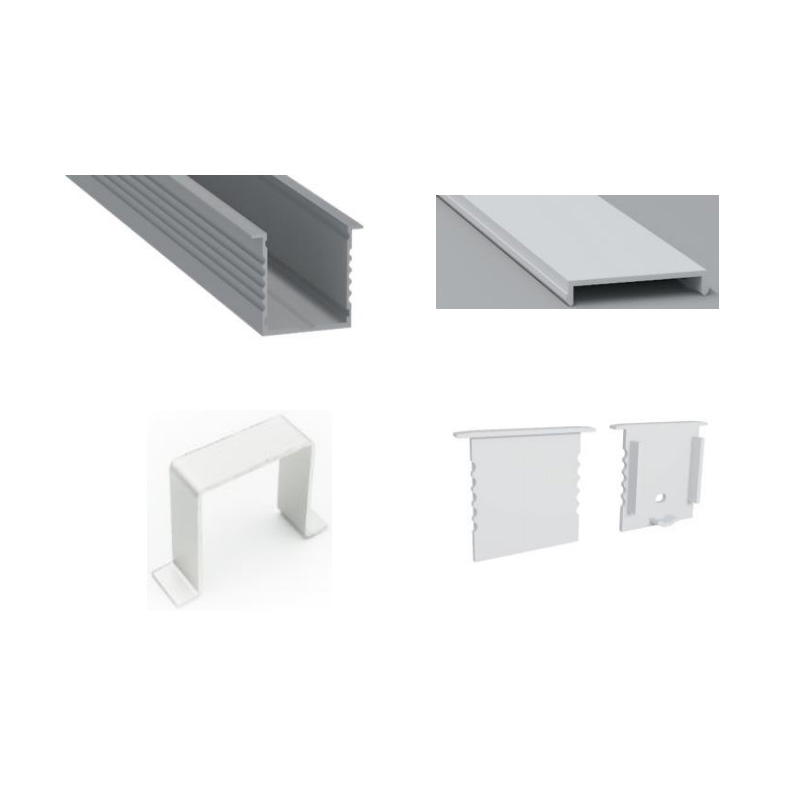

|Accessory||End cap without hole, end cap with wire hole, mounting clips|
|Apply to||2835/3528 multi row flexible led strip lights|
Applications - Ultimate Guide to LED Aluminum Channel
Residential lighting: wardrobe, cabinet, kitchen, furniture, etc.
Commercial lighting: office/supermarket/shopping Mall
Stores shelf LED lighting
Heat sink and physical protection to the LEDs
Interior light design (stairs / storage / floor)
Exhibition boot LED lighting
Backlight or supplementary lighting
