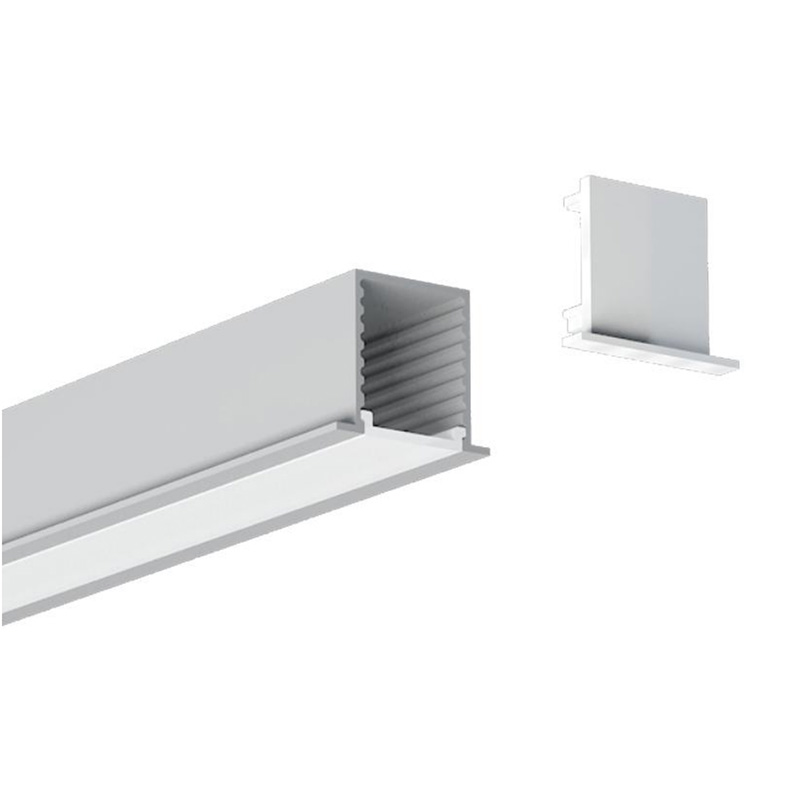

Recessed 15mm Double Row LED Strip Lighting Channel

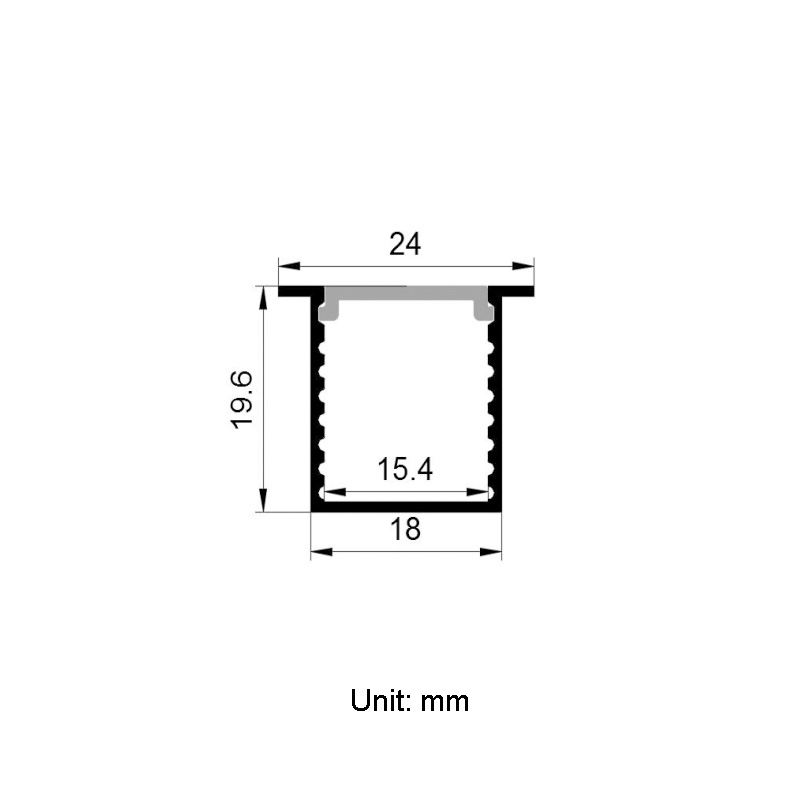

With 15.4mm/0.61in inner width, this recessed aluminum led profile is made of 6063-T5 high-quality aluminum alloy and provides additional heatsinking and mechanical protection for the led strip, suitable for 15mm 2835/3528/CCT double row led light strips. The recessed-mounted aluminum led diffuser channel can be mounted in walls, furniture, cabinets, wardrobe, etc., perfect for your residential and commercial linear lighting LED projects.

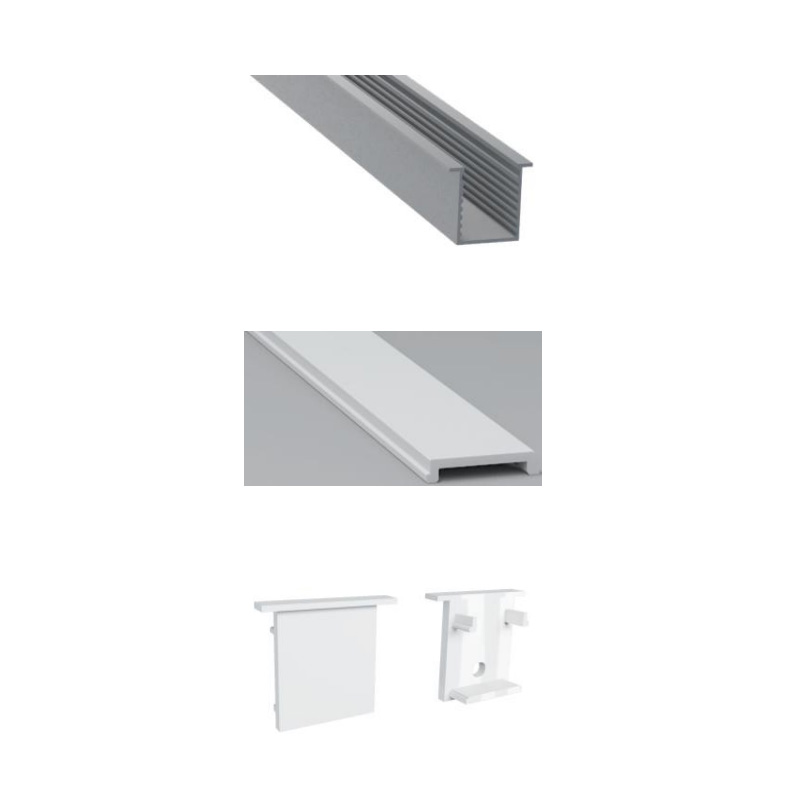

The led profiles complete the look with end caps and led plastic diffusers, PC/PMMA led light diffuser cover makes the led lighting more uniform and soft. We provide three colors, silver, white, or black aluminum channel to meet your decoration style. The led aluminum profiles support cutting, If you have requirements for the channel aluminum length, feel free to contact us to customize.
As the 2m and 3m led aluminum profiles are too light and long, the package size will exceed the DHL/UPS/TNT requirement(4feet), so extra long transportation costs ($170) will be required. The aluminum led strip lighting channel product itself is soft and easily damaged, so under normal circumstances, 2m and 3m extruded aluminum channels' MOQ is 10 pieces.
If you need a full 20-meter aluminum light diffuser channel, we recommend that you use 20 1-meter long led light strip channel splicing with some channel connectors, both sides of the product using industrial right angle cutting. After installation it does not affect the appearance.
Standards and Certifications
|Material||6063-T5 Aluminum Alloy|
|Aluminum Color||Silver /White /Black|
|LED Diffuser||PMMA opal matte diffuser /PMMA semi-clear matte diffuser /PMMA clear diffuser /PC opal microprism diffuser /PC clear microprism diffuser / PC se-mi clear diffuser|
|Accessory||End cap without hole, end cap with wire hole|
|Apply to||15mm 2835/3528/5050/CCT double row flexible led strip lights|
Applications - Ultimate Guide to LED Aluminum Channel
Residential lighting: wardrobe, cabinet, kitchen, furniture, etc.
Commercial lighting: office/supermarket/shopping Mall
Stores shelf LED lighting
Heat sink and physical protection to the LEDs
Interior light design (stairs / storage / floor)
Exhibition boot LED lighting
Backlight or supplementary lighting
