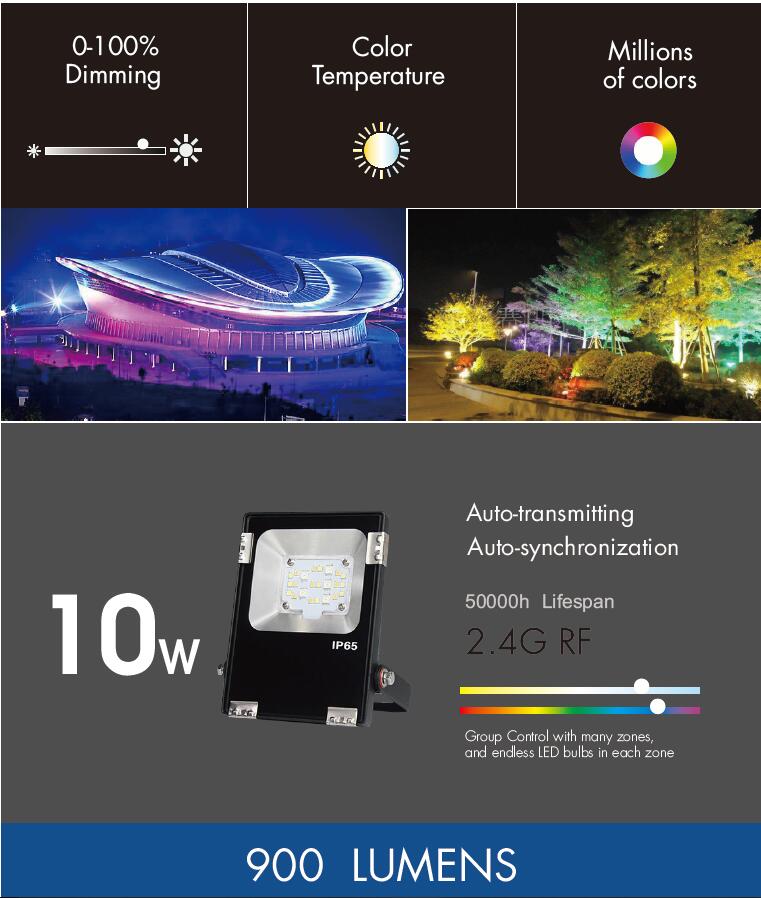

Smart RGB+Color Temperature LED Floodlight TX01

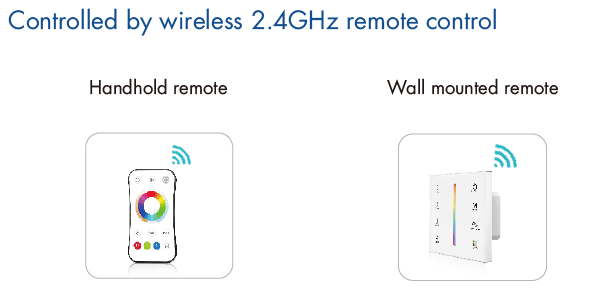

Match with Skydance’s 2.4G RGB+CCT remote control, One floodlight accept up to 10 remote control.

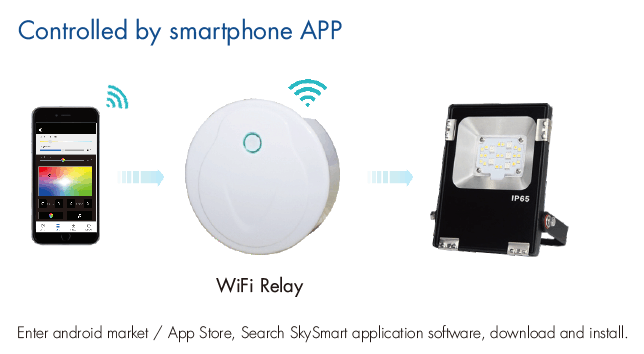

• Match with WiFi-relay device for smartphone control.
• 16 million colors and 10 dynamic mode, adjustable color temperature and saturation.
• Auto-transmitting function: floodlight automaticly transmit signal to another floodlight with 30m control distance.
• Synchronize on multiple number of floodlights.
• Use Philips LED.
• 50,000 hours lifespan.
• IP65 Waterproof.
Standards and Certifications
Voltage: AC86V-265V 50/60Hz
Color Temperature: 2700-6500K
Luminous Efficiency: 90LM/W
Luminous Flux(lm): 800-900LM
Beam Angle: 160°
Material: Aluminum + Glass
Input signal: RF 2.4GHz
Control distance: 30m
Dimming level: 4096 levels
Dimming range: 0 -100%
Safety and EMC
EMC standard (EMC): EN301 489,EN 62479
Safety standard(LVD): EN60950
Radio Equipment(RED): EN300 328
