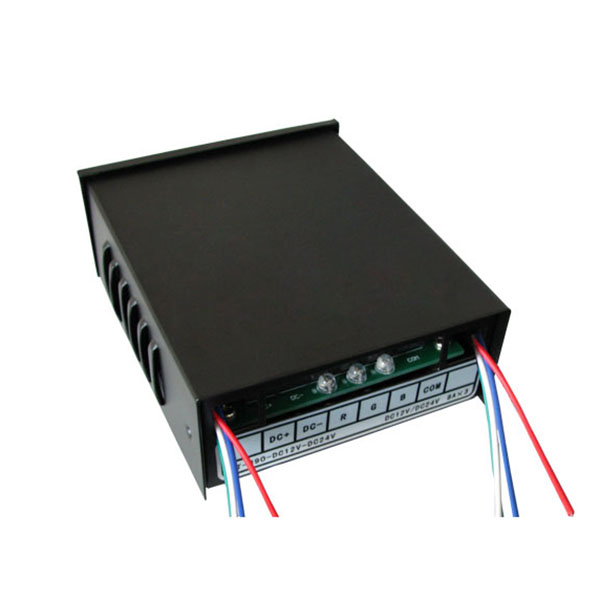

SPI Driver(Single Pixel/3CH) LT-210
LT-210 SPI Driver(Single Pixel/3CH)
Input signal : SPI (TTL) signal
Input power: DC12V～DC24V
Max load current: 8A/CH×3
Max output power: 288W/576W(24V/12V)
working temperature: -30℃～65℃
Package Size: L155×W105×H55(mm)
Weight (G.W): 400g
