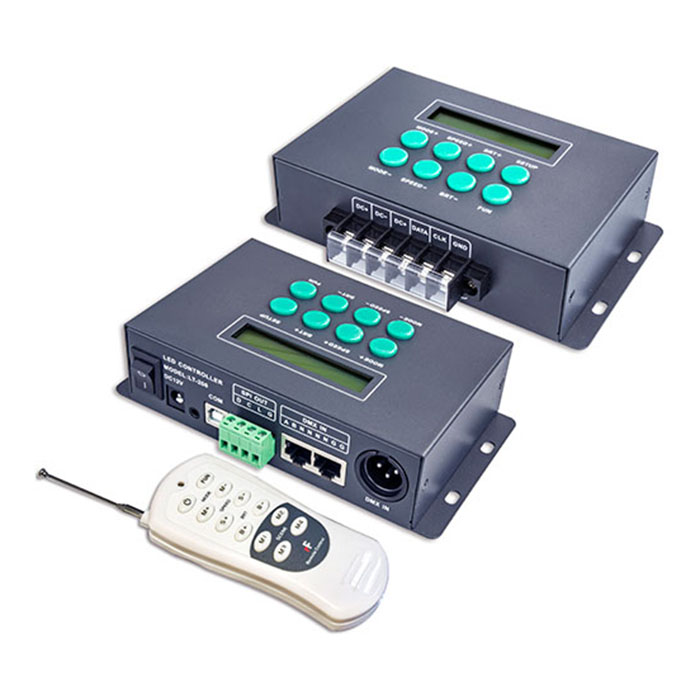

LED Digital SPI Controller LT-200 Supports DMX Signal Input, With RF remote control
More powerful and easy operation in the LT-200 digital controller updated version.
It can control LED lighting with compatible driving IC, such as PD6803, LPD1101, D705, UCS6909, UCS6912, LPD8803, LPD8806, TM1803, TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, UCS2903, TLS3001, TLS3002, WS2801, WS2803, WS2811, WS2812B, P9813, etc
There are 540 lighting modes, like seven color, synchronic jumping, and smooth, color flow, color chasing, smooth flow, Meteor, etc.
LED digital control was supported by DMX/1990 international standard protocol interface which has DMX management mode. It can choose the changing modes, changing speed, brightness, changing category, changing direction by calling LT-200 built-in function through DMX console.
Meanwhile, it also has the DMX decoder mode that the user is the most wanted. It can edit and control the led fixtures with those driving ICs listed above. DMX console control every channel of the LED fixtures, realizing 0-100% dimming or editing kinds of changing effect.
Can customize the other compatible driving ICs by customer needs.
1. Built-in an LCD screen, it is easy to set up the parameters.
2. Built-in perpetual calendar, real-time display system clock, can be set up to play different programs at any time, Monday to Sunday or holiday.
3. There are 540 lighting modes, like seven colors, synchronic jumping and smooth, color flow, color chasing, smooth flow, meteor trailing, etc..
4. Multilevel changing speed, brightness, RGB gray scale adjustment, the effect of movement direction, etc.
5. Feel free to define many changing modes into a step, 8 independent cycle steps maximum.

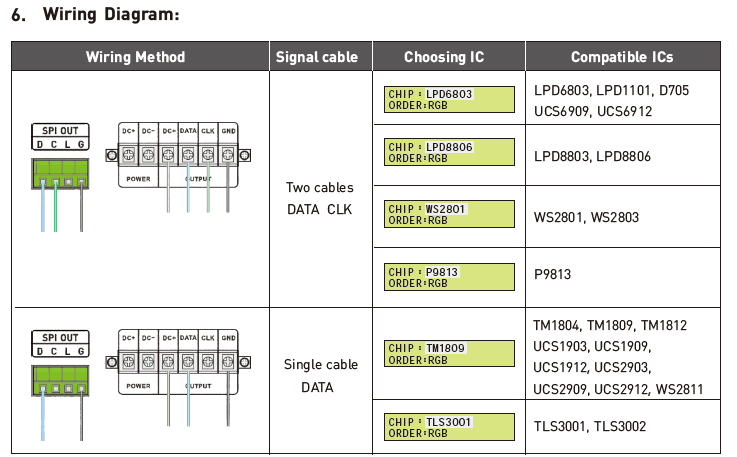

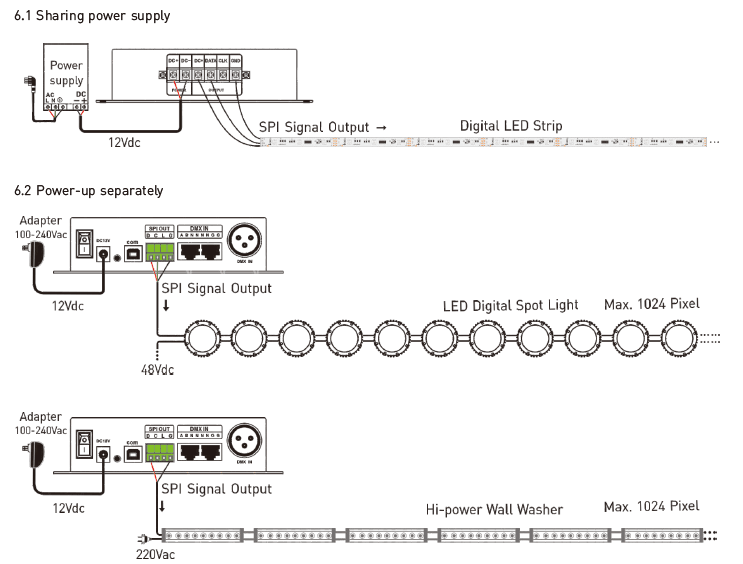

6. Support 2 kinds of output ports: green terminals, the combination the terminal of signal and power (It can be load 20A current )

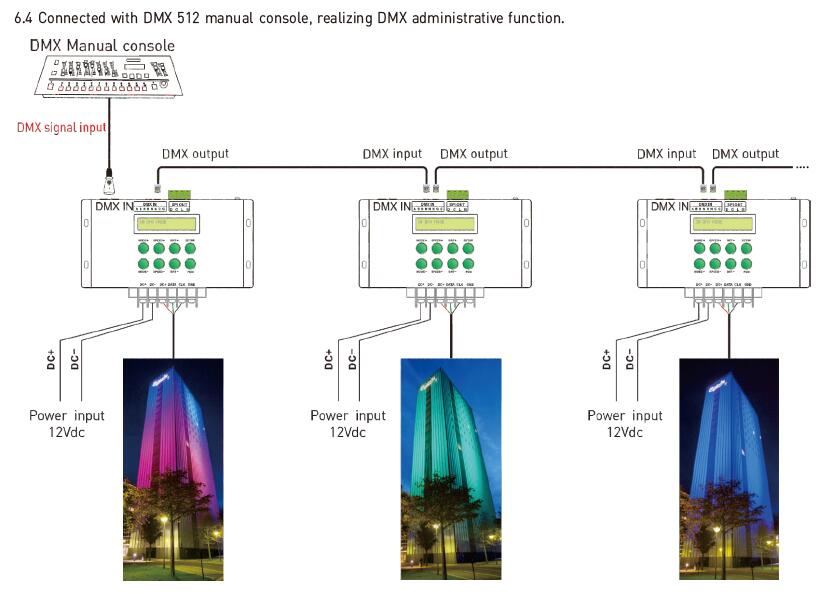

7. Support third-party DMX512 interface, it can be realized DMX management mode, calling the most of functionality in the controller by DMX console.

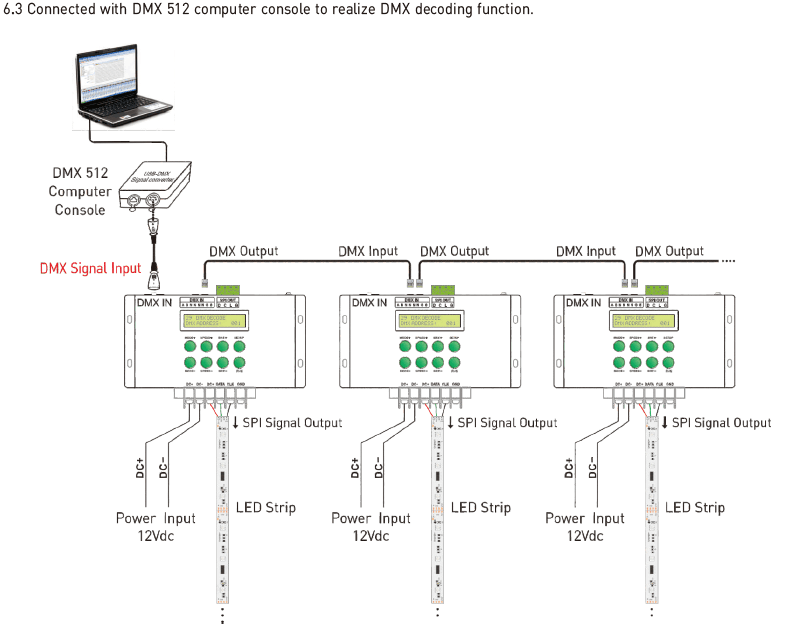

8. It can be work as a DMX-SPI decoder, which decodes 512 channels and programming the changing effect by DMX console.
Input signal :DMX512
Input voltage :DC12V～DC48V
Output voltage :DC3V~DC46V
Output current :CC 350/700/1050mA 3 in 1×1CH
Output power :1.05W~48.3W×1CH
Dimming range :0~100%
Working temperature: -30℃～55℃
Package Size :L178×W48×H33mm
Weight (G.W) :120g
