DC12V 1024 Pixels,LETCH DMX512 LT-209 Digital pixel Music Controller for Dream Color 6803 1809 IC LED Strip Lights, Warranty 5Years

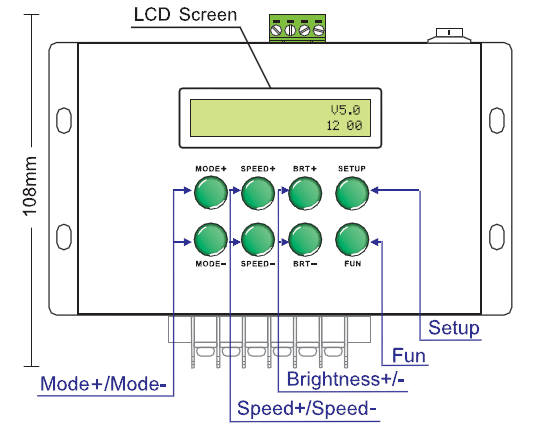

With LCD screen,easy to operate in showing all functions.
Built-in perpetual calendar, real-time display system clock, can be set up to play different programs in any time, Monday to Sunday or holiday.
580 lighting modes such as, full 7 color, skipping synchronism, smooth synchronism, color flow, color chasing, color smooth and flow and Meteor shower trailing, etc.
Multilevel changing speed, brightness and RGB grey scale adjustment for your choices.
Feel free to define many changing modes into a step, 8 independent cycle steps maximum.
Output with international Standard signal DMX512/1990, can control 512 DMX channels( 170 full color RGB pixels)
Support different output ports like standard XLR-3,RJ45 and Green terminal. etc.
With the functions of anti-interference and automatic breakdown recovery.
Standards and Certifications

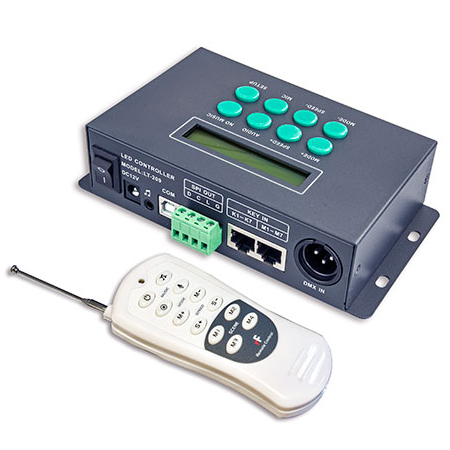

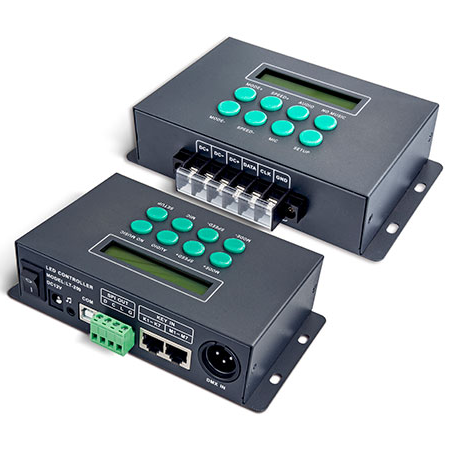

LT-209 Digital pixel Music Controller
Working Voltage : DC12V (with an adapter to covert AC100--240V to DC12V )
Power consumption : <2W
Output signal : SPI(TTL)
3rd part port : DMX512
Function Mode : 16 modes
Control Qty : 1024 pixels
Working temperature: -30°C--65°C
Dimension : L163×W125×H40mm
Package Size: L269×W129×H46mm
Weight (G.W) : 760g
