Stair Lighting LED Aluminum Profile For 10mm LED Light Strips

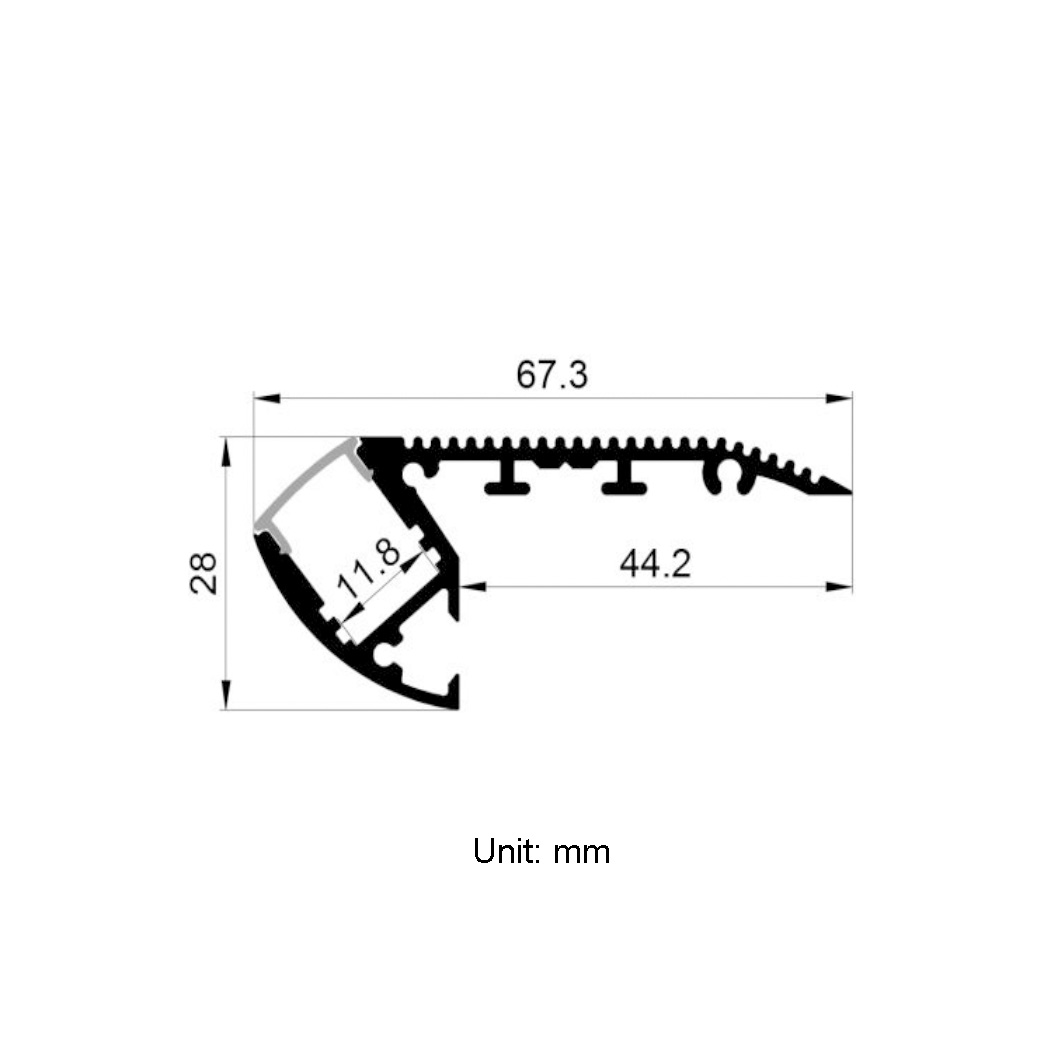

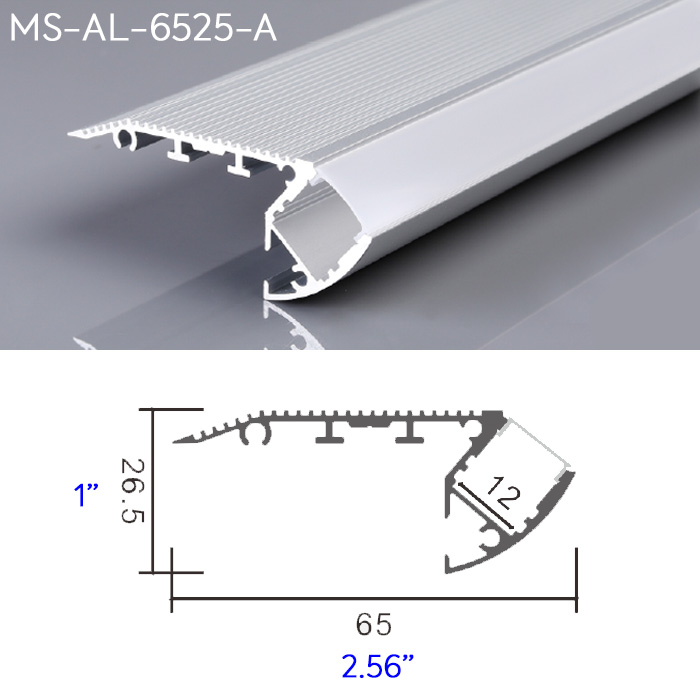

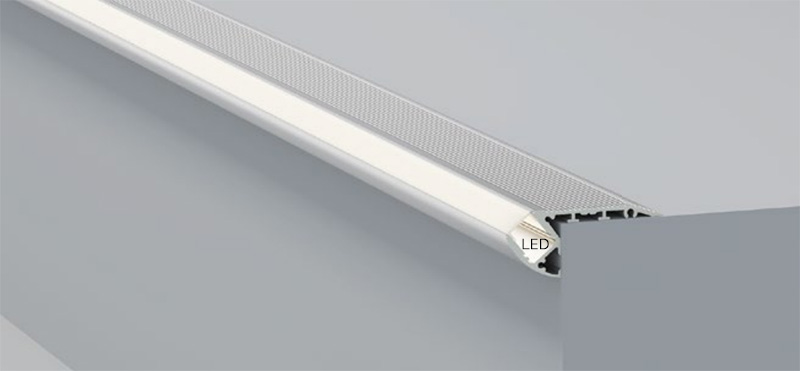

This floor series stair led aluminum channel with 11.8mm/0.46in inner width is made of high quality aluminum alloy, suitable for 10mm 5050/2110/2216 white led strip lights. For led heat dissipation and led strip protection, aluminum LED profiles play a positive role. This led stair profile can be mounted on the indoor stairs to act as stair lighting.
Stair LED strip channels with different light diffusers will have different lighting effects, choose the right led diffuser from the 6 kinds of PC/PMMA diffusers, PC opal microprism diffuser, PC clear microprism diffuser, PC semi-clear diffuser, PMMA opal matte diffuse, PMMA semi-clear matte diffuser, and PMMA clear diffuser. We provide the silver, white, and black aluminum stair light led channel color to follow your home fashion style. 1m led aluminum profile for stairs and steps is the most common length, and you can choose the 2-meter long led channel profile option, cutting the aluminum led light channel to any length is available. For precise length to suit your led stair lighting project, please feel free to contact us to customize the channel aluminum length.
As the 2m and 3m led aluminum profiles are too light and long, the package size will exceed the DHL/UPS/TNT requirement(4feet), so extra long transportation costs ($170) will be required. The aluminum led strip lighting channel product itself is soft and easily damaged, so under normal circumstances, 2m and 3m extruded aluminum channels' MOQ is 10 pieces.
If you need a full 20-meter aluminum light diffuser channel, we recommend that you use 20 1-meter long led light strip channel splicing with some channel connectors, both sides of the product using industrial right angle cutting. After installation it does not affect the appearance.
Standards and Certifications
|Material||6063-T5 Aluminum Alloy|
|Aluminum Color||Silver /White /Black|
|LED Diffuser||PMMA opal matte diffuser /PMMA semi-clear matte diffuser /PMMA clear diffuser /PC opal microprism diffuser /PC clear microprism diffuser / PC semi-clear diffuser|

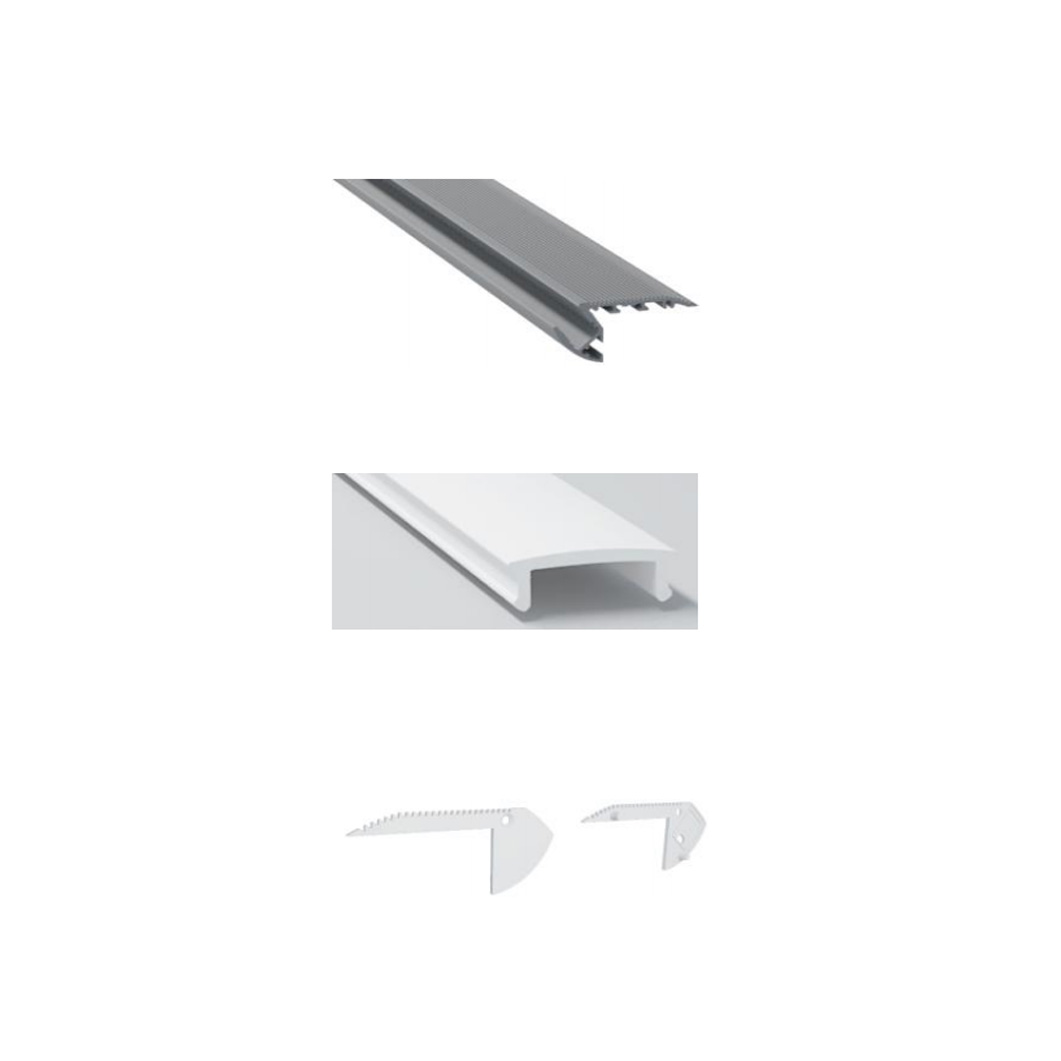

|Accessory||End cap without hole, end cap with wire hole|
|Apply to||10mm 5050/2216/3014/2835/3528/5630/5730 flexible led strip lights|
Applications - Ultimate Guide to LED Aluminum Channel
Residential lighting: wardrobe, cabinet, kitchen, furniture, etc.
Commercial lighting: office/supermarket/shopping Mall
Stores shelf LED lighting
Heat sink and physical protection to the LEDs
Interior light design (stairs / storage / floor)
Exhibition boot LED lighting
Backlight or supplementary lighting
