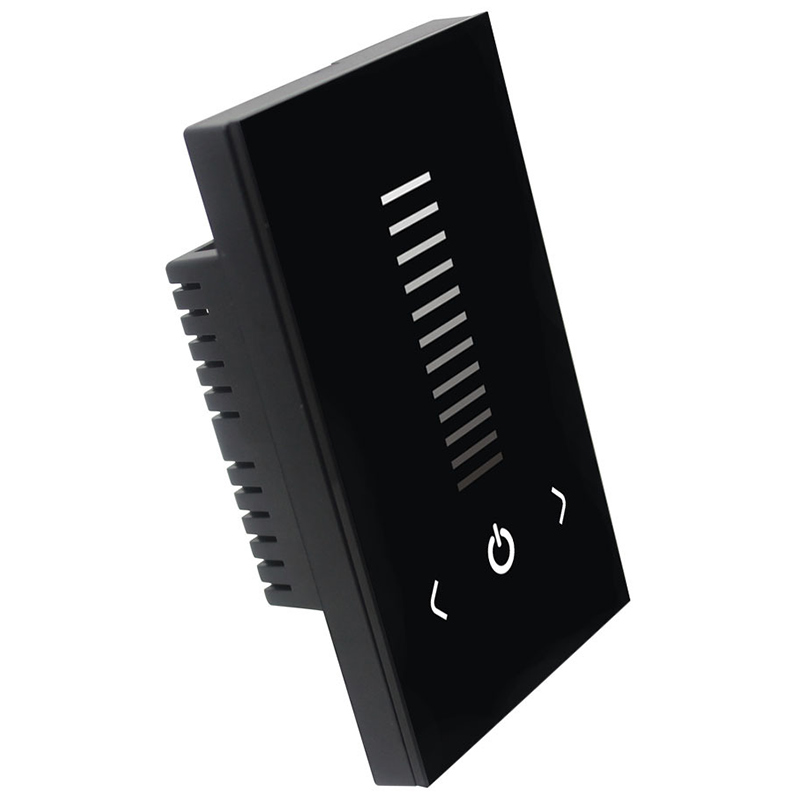

TM11U 1 Channel Touch Triac Dimmer, LED Touch Control Dimming
The touch triac dimmer adopts advanced computer control chip, the shell adopts American standard, and the high voltage MOS tube is used as the control circuit to realize the post-cut phase dimming. It inherits the advantages of the low voltage controller, uses the glass panel design, and has a beautiful appearance. , Stylish, high-precision capacitive touch control chip, increase the sensitivity of the touch, reduce false triggers; can be used to control a variety of lamps connected to the thyristor power supply, can also be directly connected to high-voltage LED load lights; has the advantages of convenient wiring, simple use, etc. Provide intelligent lighting control that is more comfortable, safe, and convenient than traditional lighting control, optimize people's control experience of lighting, and bring users a new and comfortable lighting environment.
● Working Temperature: -20-60℃
● Power Supply Voltage: AC90～240V (50～60Hz)
● Output: 1 Channel

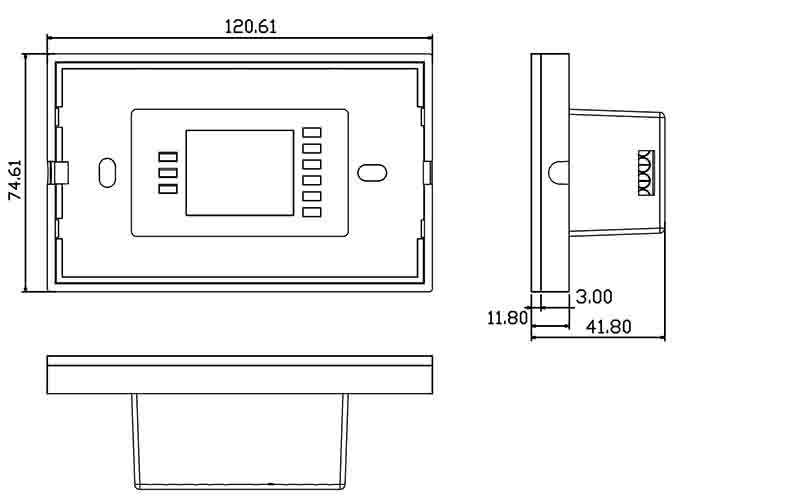

● Dimensions: L74×W120×H41.8 mm
● Packing Size: L145×W99×H53 mm
● Net Weight: 181g
● Gross Weight: 285g
● Static Power Consumption: <3W
● Output Current: <1A
● Output Power: 110V: <110W, 220V: <220W
● Dimming Method: post-cut dimming

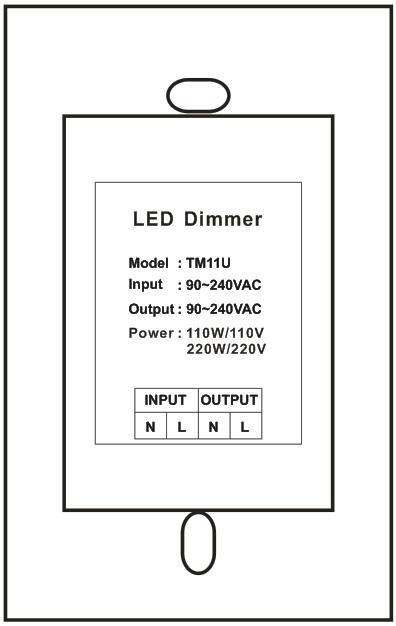

INPUT: AC power input interface, the input voltage range is 90~240VAC, 50~60Hz;
OUTPUT: SCR dimming signal output interface, the output voltage is 90~240VAC, 50~60Hz, and the maximum output current is 1A.

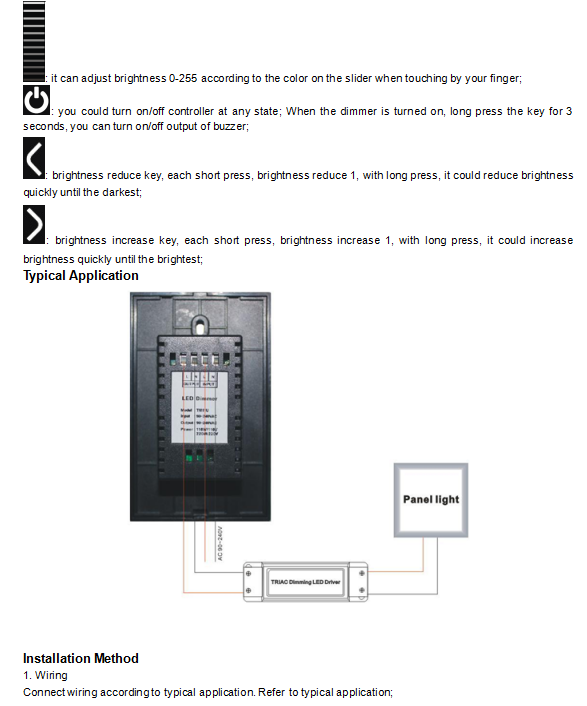

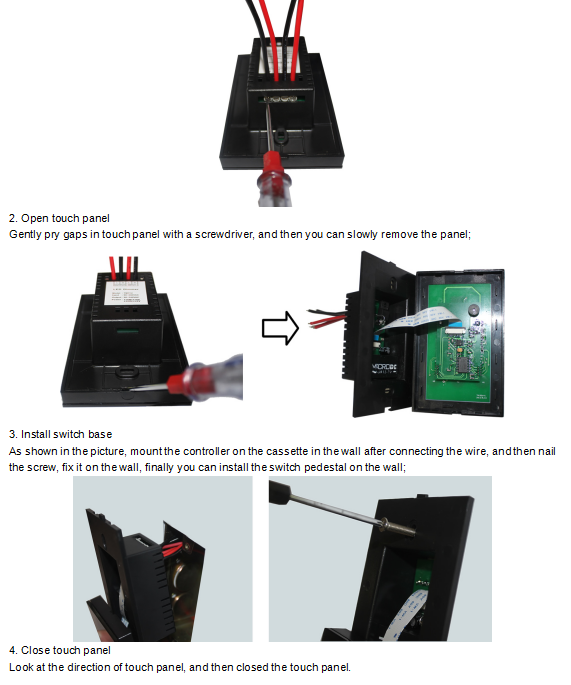

Instructions for use
