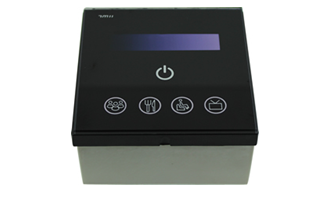

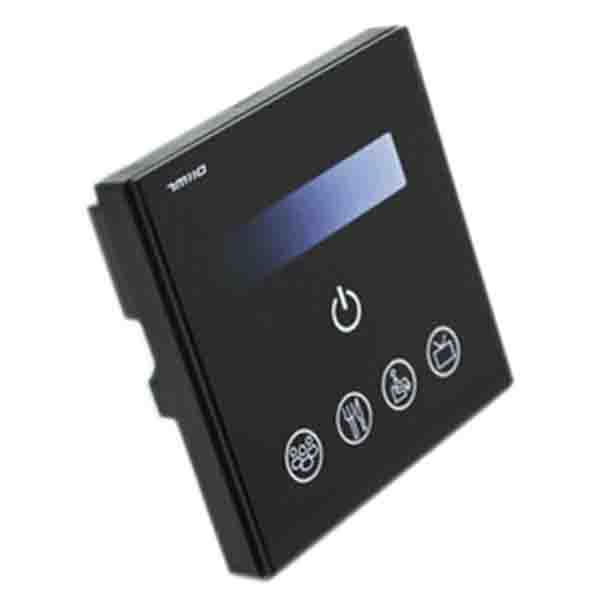

TM11 AC85~265V Touch Panel High Voltage Dimmer, Triac Panel Controller
TM11 controller is a self-developed touch high-voltage controller. TM11 inherits the advantages of the low-voltage controller. It adopts glass panel design, beautiful and stylish appearance, high-precision capacitive touch control chip, which increases the sensitivity of touch and reduces errors. Trigger provides intelligent lighting control that is more comfortable, safe, and convenient than traditional lighting control, optimizes people's control experience of lighting, thus bringing users a new and comfortable lighting environment.
●Working Voltage: AC85~265V/50-60Hz
●Working Temperature: -20-60℃
●Working Power Consumption: about 2W
●Output: trailing edge dimming 200W/MAX
●Packing Size: L90*W90*H40(mm)

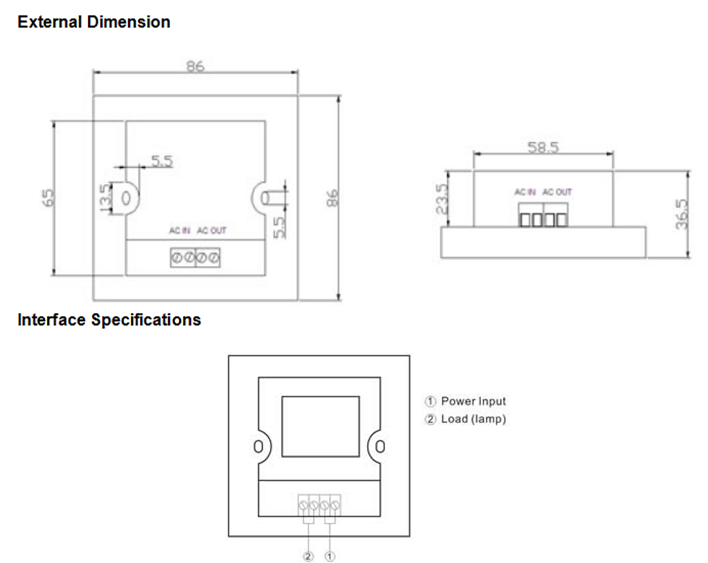

●Dimensions: L86*W86*H37 (mm)
●Net Weight: 150.1g
● Gross Weight: 221.1g

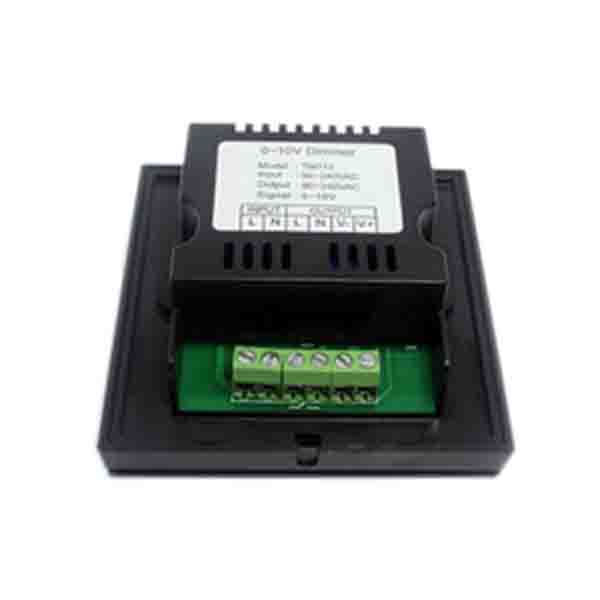

①Power input: Power input interface, the input voltage range is AC85-265V.
②Load (lamp): AC voltage regulation signal output interface, the maximum load is 200W.

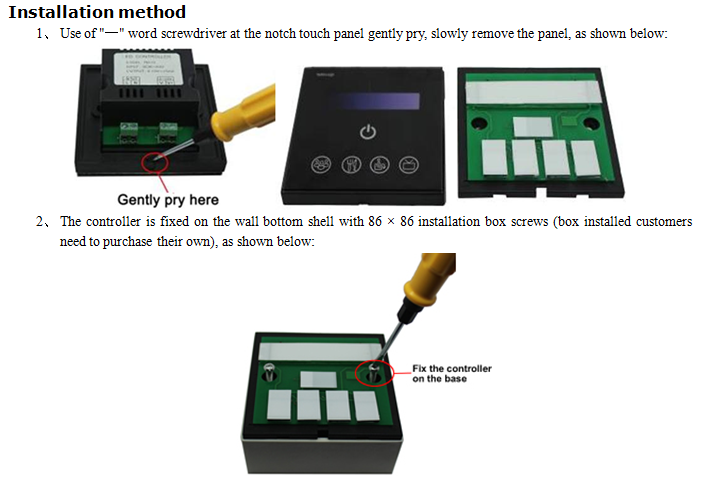

3. Cover the glass panel of the controller that was previously disassembled, and the installation is complete, as shown in the following figure:
1. Please do not install the controller in a closed, high magnetic field area;
2. Make sure to install in a ventilated area to ensure the proper temperature;
3. Check whether the voltage and power supply match this controller;
4. Before powering on, please check whether the line is correctly connected, and use the instrument to test whether there is a short circuit;
5. When there is a problem, please do not open the shell of the controller at will.
