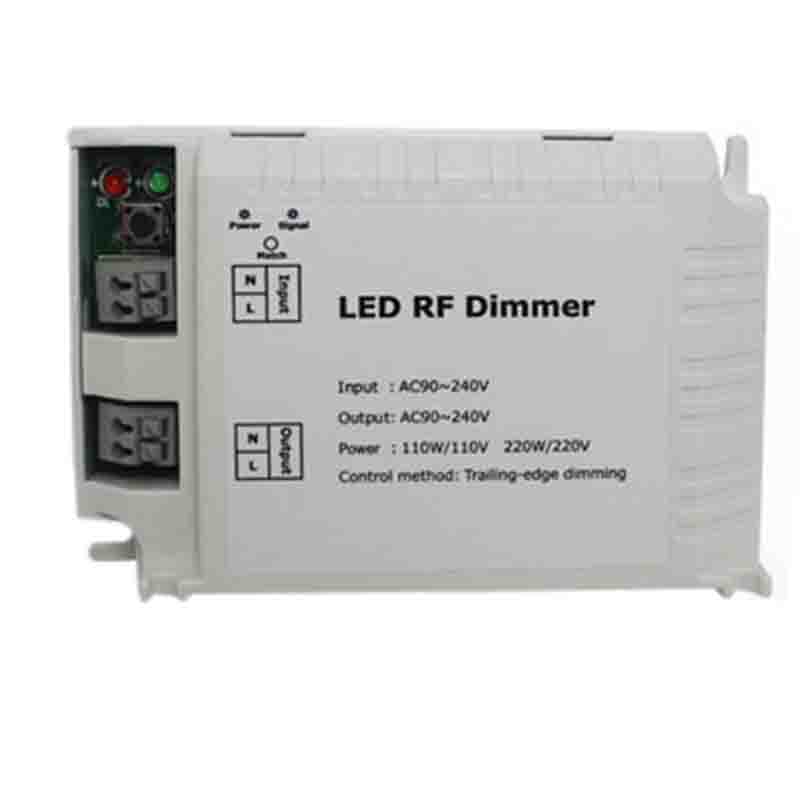

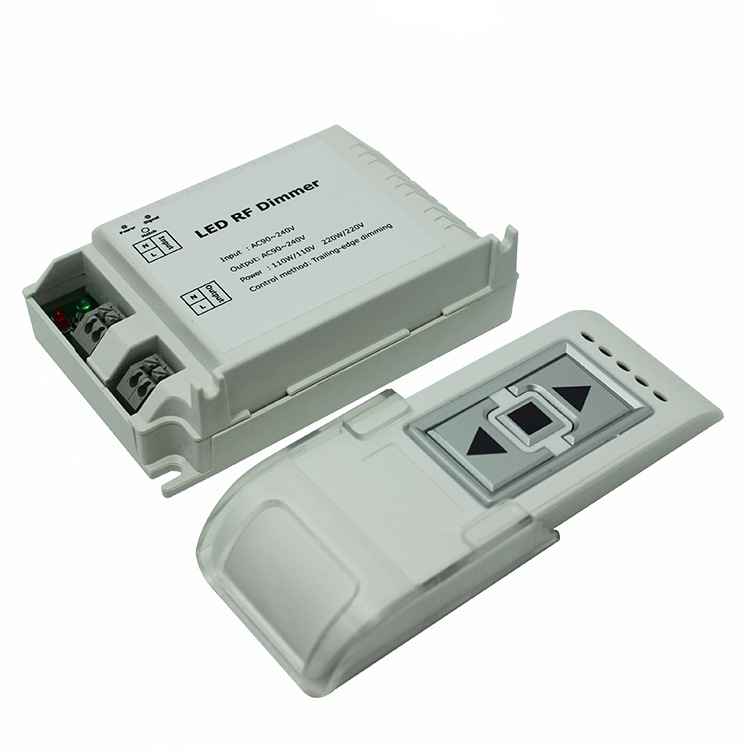

DM014 AC90~2240V Triac Dimmer, 1 Channel Wireless Three-key RF Triac Dimmer

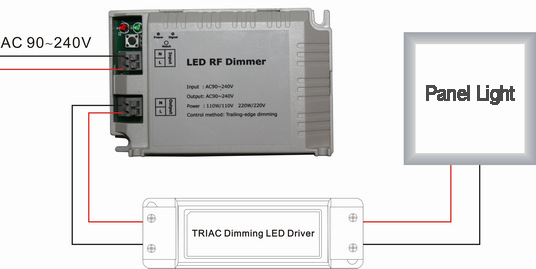

The wireless three-key RF triac dimmer adopts an advanced computer control chip and selects a high-voltage MOS tube as the control circuit to achieve post-cut phase dimming. It is used to control various lamps connected to the thyristor power supply, and can also be directly connected to the load lamp. ; It has the advantages of convenient wiring, simple use, and convenience; it can realize the dimming function according to the actual needs of customers.
● Working Temperature: -20-60℃
● Power Supply Voltage: AC90～240V (50～60Hz)
● Output: 1 Channel
● Transmission and Reception Frequency: 433.92Mhz

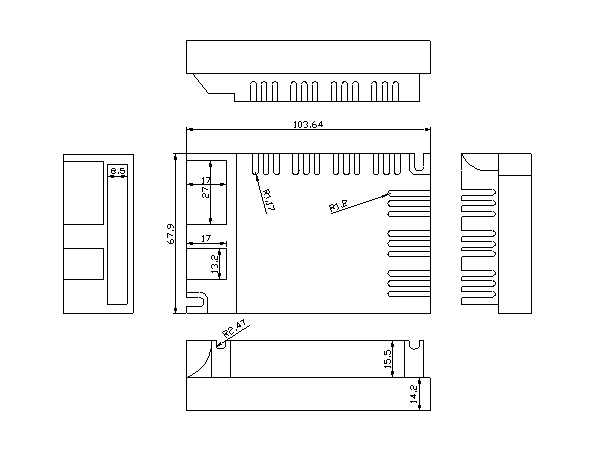

● Dimensions: L104×W68×H30mm
● Remote Control Size: L119.7×W43.2×H16.4mm
● Packing Size: L122×W45×H132mm
● Net Weight: 150g
● Gross Weight: 250g
● Static Power Consumption: <1W
● Output Current: <1A
● Output Power: 110V: <110W, 220V: <220W
● Dimming Method: post-cut dimming
● Remote Control Distance: less than 20 meters

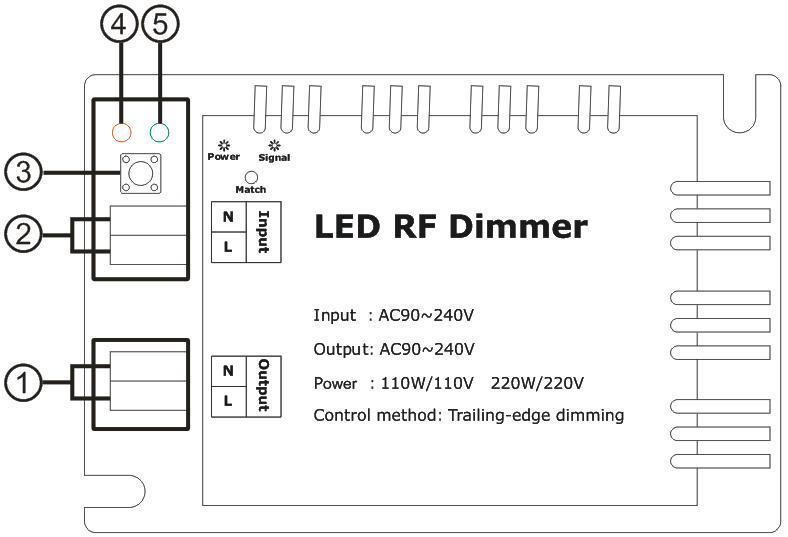

①: Output, SCR dimming signal output interface, the output voltage is 90~240VAC, 50~60Hz, and the maximum output current is 1A;
②: Input, power input interface, the input voltage range is 90~240VAC, 50~60Hz;
③: Match remote control code key. The controller can be equipped with two remote controllers to control it. Use a sharp, non-conductive object to press and hold the code-matching key on the controller, and at the same time, long-press the key on the remote control for more than 3 seconds to complete the code-matching. If the code is successful, the load light will flash. The loading light of the first paired remote control will flash 3 times, and the load light of the paired second remote control will flash 6 times. After that, each code pairing will replace the remote control that was coded earlier.
④: Power red light, when the controller power supply is normal, the Power red light is always on;
⑤: Signal green light, when the controller is processing the remote control signal, the Signal green indicator light flashes;

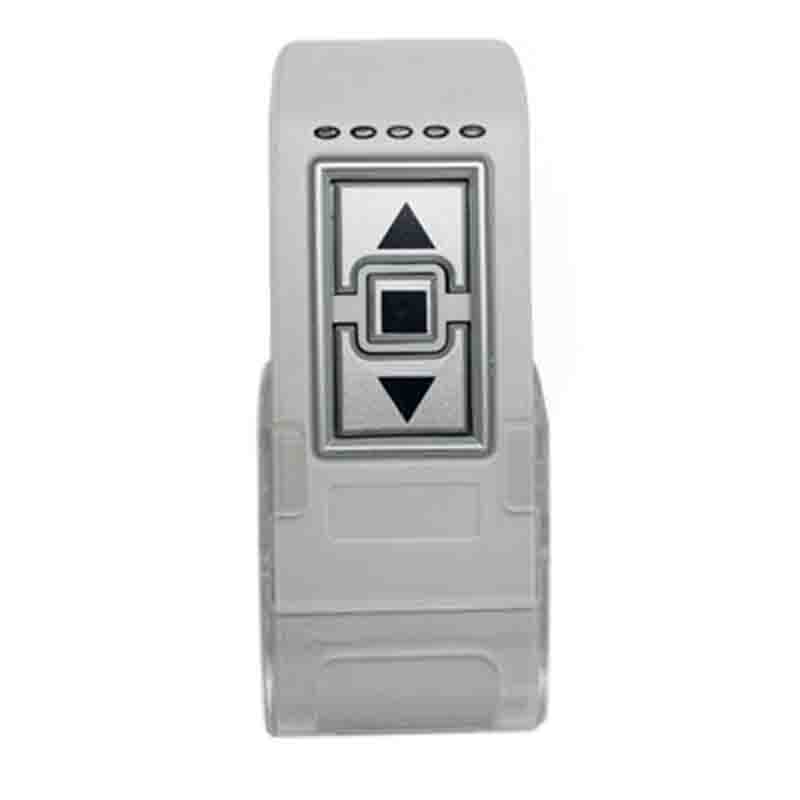

The open key, in any state, can turn off the dimmer;
Brightness increase key, the brightness will increase by 1 level every short press, and the brightness will increase rapidly until long press 255;
Brightness reduction key, the brightness decreases by 1 level every time you press it, and the brightness decreases quickly until you press 1
