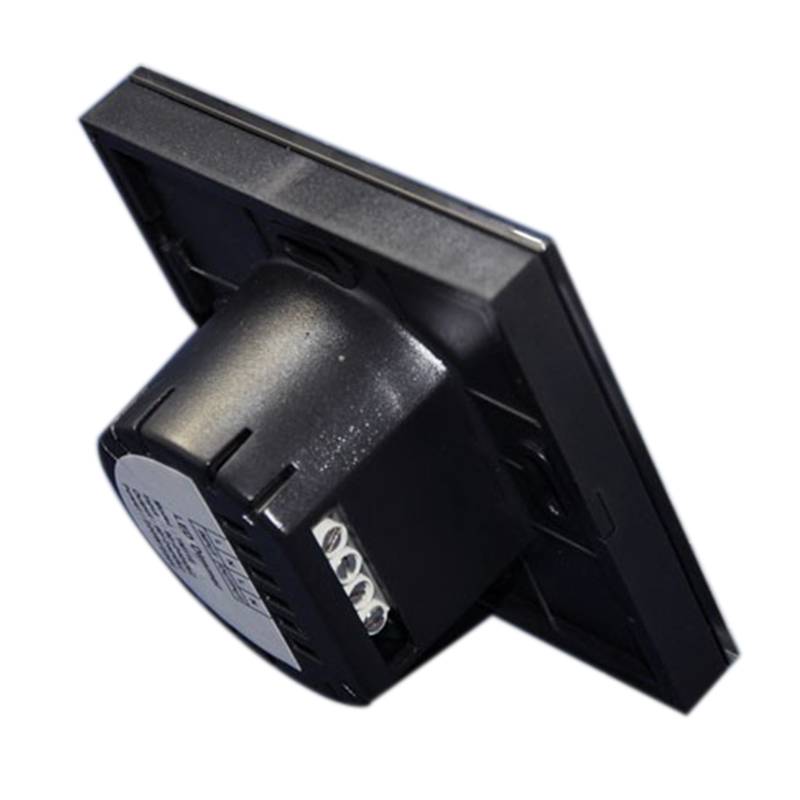

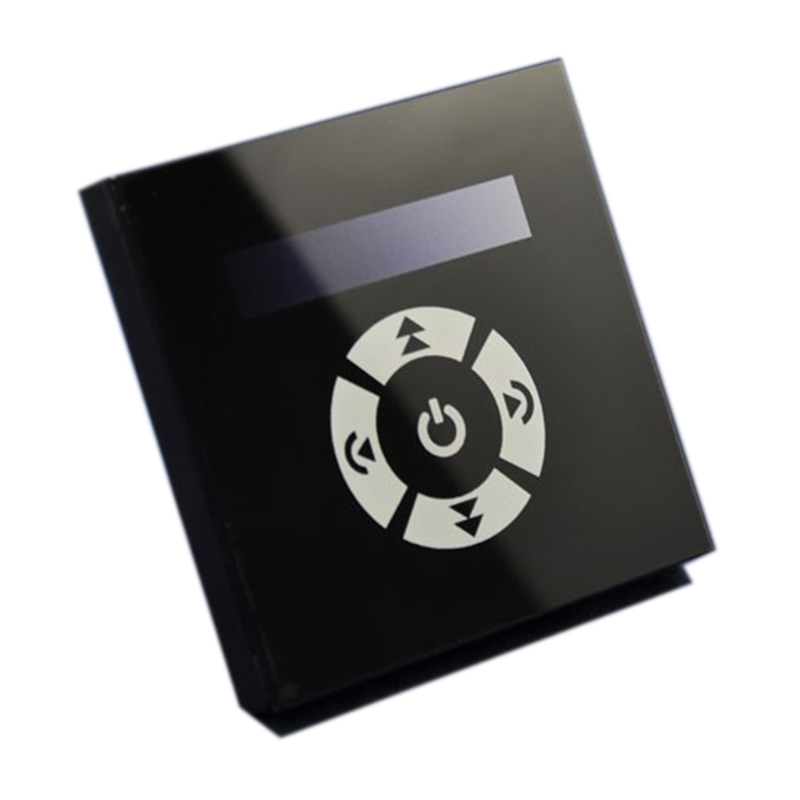

TM11E AC90～240V LED-RGB Controller, 1 Channel Triac Touch Panel Dimmer
The European standard touch triac dimmer adopts advanced computer control chip, the outer shell adopts European standard, and the high voltage MOS tube is used as the control circuit to achieve post-cut phase dimming; it inherits the advantages of low voltage controller and adopts glass panel design. Beautiful and stylish appearance, high-precision capacitive touch control chip, which increases the sensitivity of touch and reduces false triggers; can be used to control various lamps connected to the thyristor power supply, and can also be directly connected to high-voltage LED load lamps; with convenient wiring and simple use And other advantages; providing intelligent lighting control that is more comfortable, safe, and convenient than traditional lighting control, optimizing people's control experience of lighting, thus bringing users a new and comfortable lighting environment.
● Working Temperature: -20-60℃
● Power Supply Voltage: AC90～240V (50～60Hz)
● Output: 1 Channel

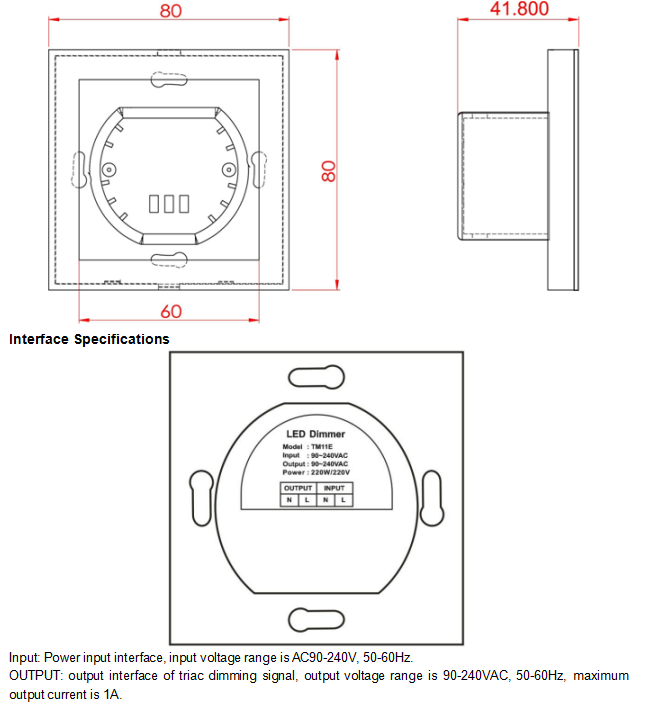

● Dimensions: L80×W80×H42mm
● Packing Size: L105×W105×H53mm
● Net Weight: 129g
● Gross Weight: 220g
● Static Power Consumption: <3W
● Output Current: <1A
● Output Power: 110V: <110W, 220V: <220W
● Dimming Method: post-cut dimming
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
