TM120E 1 Channel Touch 0-10V Dimmer, LED High Voltage Dimmer
Touch panel controller is a new high-end controller which newly developed by our company. It adopts glass panel design, is beautiful and fashionable in appearance. It adopts high precision capacitance touch control chip, increases the touch sensitivity, reduces trigger which caused by mistake. It is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, panel lights etc., it has many advantages such as convenient to connect, easy to use and others.
Working Temperature: -20-60℃
Power Supply Voltage: AC90～240V (50～60Hz)
Output: 1 Channel
Output Signal: 0-10V

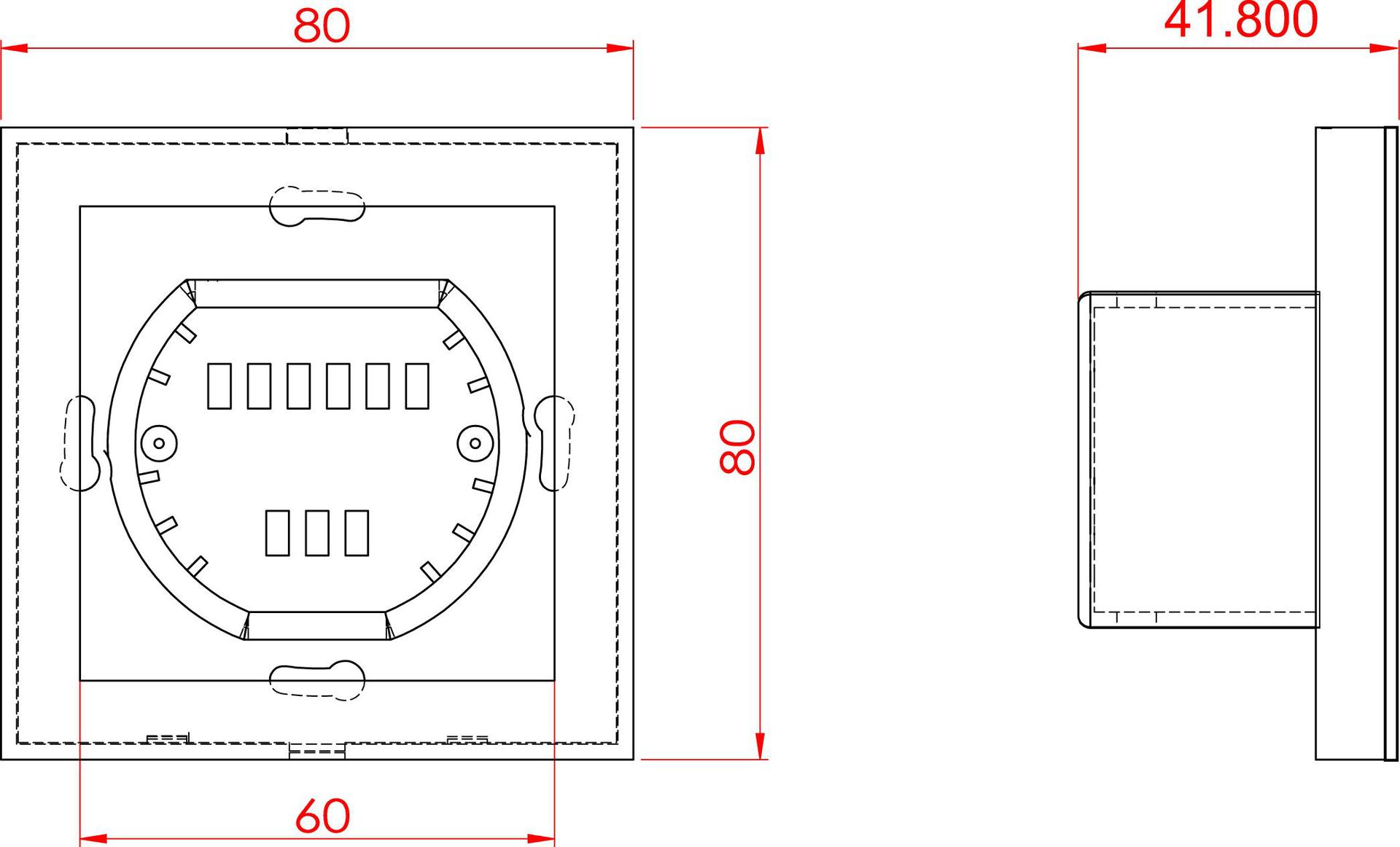

Packing Size: L105×W105×H53mm
Net Weight: 144g
Gross Weight: 194g
Static Power Consumption: <3W
0-10V Signal Output Current: <15mA
Maximum Output Power of Relay: <200W

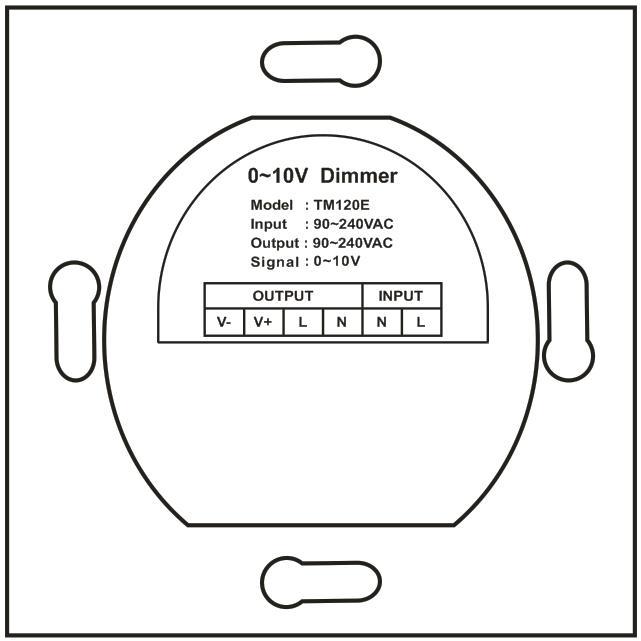

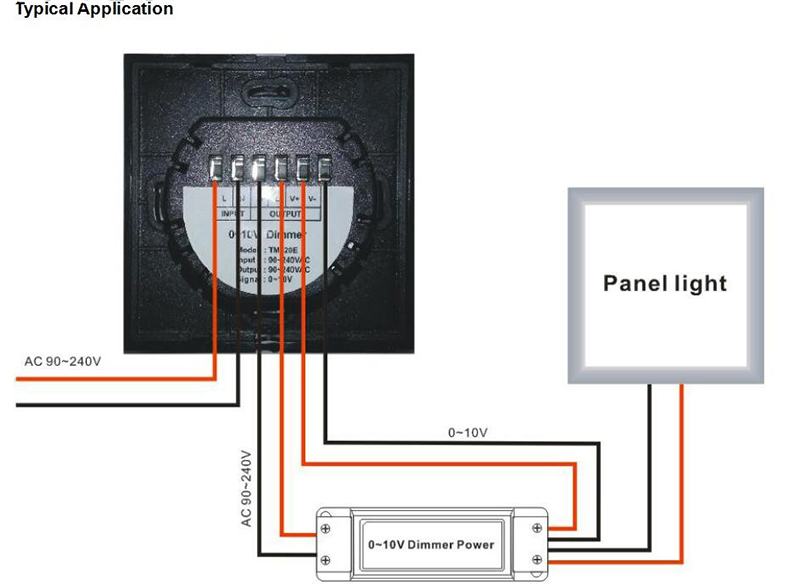

L: AC power input live wire, the voltage range is 90 ~ 240VAC, 50 ~ 60Hz;
N: AC power input neutral, voltage range is 90～240VAC, 50～60Hz;
L: Relay output live wire, the output voltage is 90 ~ 240VAC, 50 ~ 60Hz;
N: Relay output neutral line, the output voltage is 90 ~ 240VAC, 50 ~ 60Hz;
V+: output 0-10V signal positive;
V-: output 0-10V signal negative.
