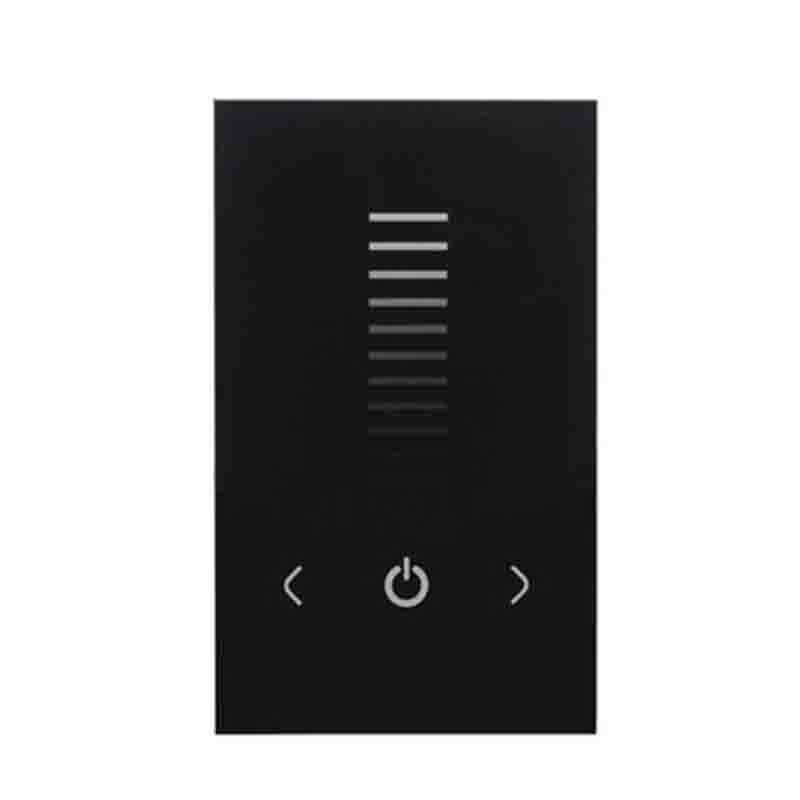

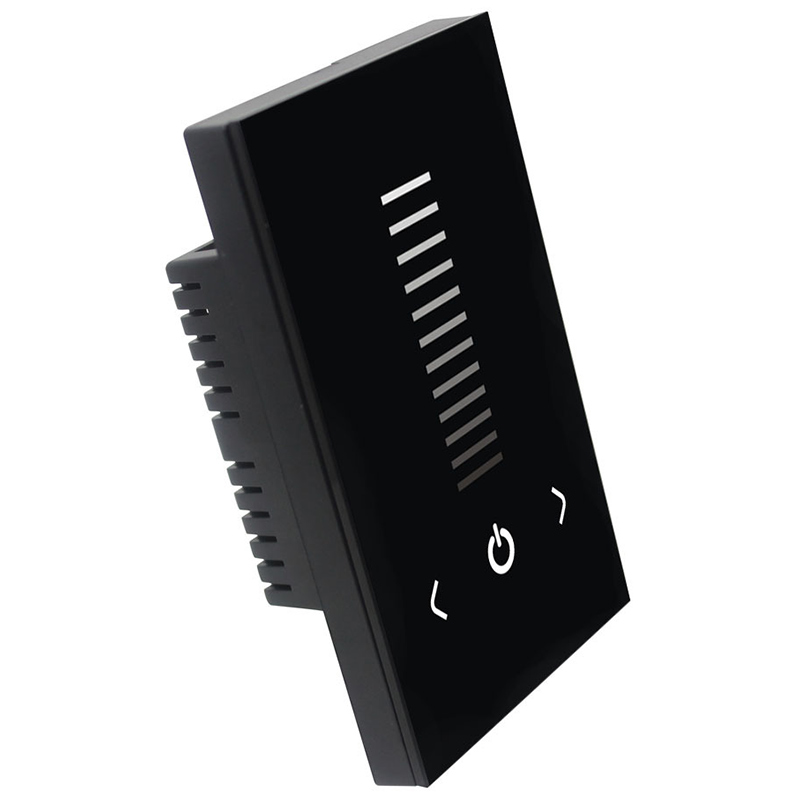

TM120U 0-10V 1 Channel Touch Panel Dimmer, LED Hight Voltage Controller
The American standard touch 0-10V signal dimmer uses an advanced computer control chip, the shell adopts the US standard, and a relay power output is added. As a 0-10V power input, the dimming effect is better; it inherits the advantages of low voltage controller, Adopts glass panel design, beautiful and stylish appearance, high-precision capacitive touch control chip, increases the sensitivity of touch, reduces false trigger; can be used to control various lamps connected to the 0-10V power supply, with the advantages of convenient wiring and simple use; provide Smart lighting control, which is more comfortable, safe and convenient than traditional lighting control, optimizes people's control experience of lighting, thus bringing users a new and comfortable lighting environment.
● Working Temperature: -20-60℃
● Power Supply Voltage: AC90～240V (50～60Hz)
● Output: 1 Channel
● Output Signal: 0-10V

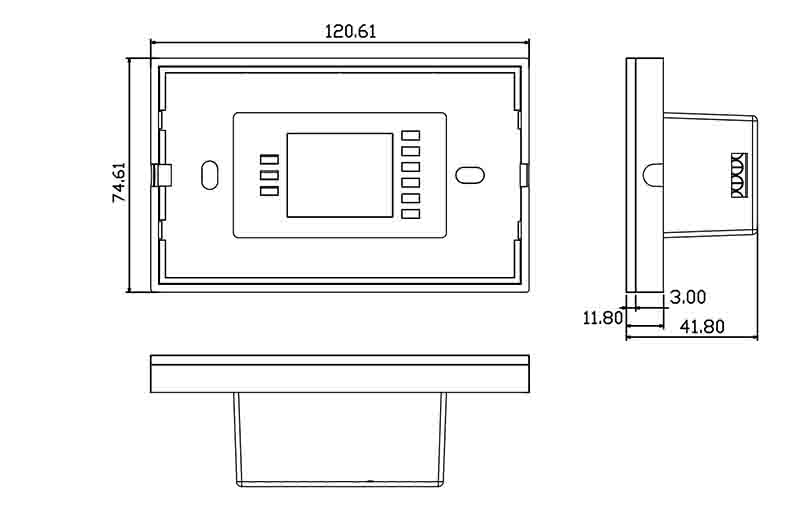

● Dimensions: L74×120×H42mm
● Packing Size: L150×W100×H57 mm
● Net Weight: 172.5g
● Gross Weight: 282.3g
● Static Power Consumption: <3W
● 0-10V Signal Output Current: <15mA
● Maximum Output Power of Relay: <200W

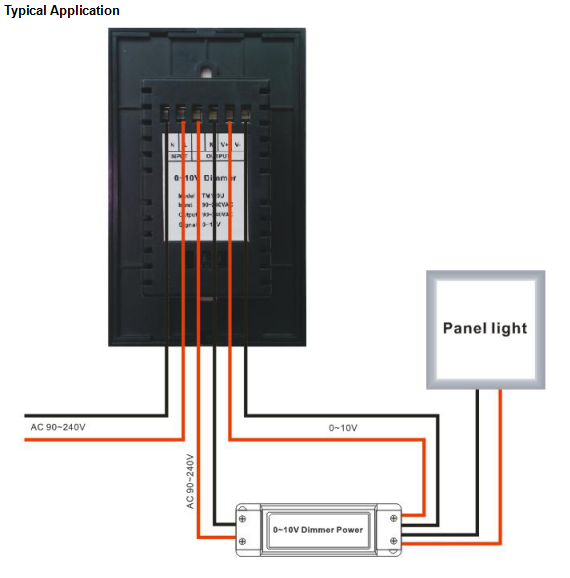

L: AC power input live wire, the voltage range is 90 ~ 240VAC, 50 ~ 60Hz;
N: AC power input neutral, voltage range is 90～240VAC, 50～60Hz;
L: Relay output live wire, the output voltage is 90 ~ 240VAC, 50 ~ 60Hz;
N: Relay output neutral line, the output voltage is 90 ~ 240VAC, 50 ~ 60Hz;
V+: output 0-10V signal positive;
V-: output 0-10V signal negative.
