Individually Addressable RGB LED Strip Lights - CS1908 IC DC12V Breakpoint Continue LED Strips

Name: Individually Addressable RGB LED Strip Lights - CS1908 IC DC12V Breakpoint Continue LED Strips
Brand: SuperLightingLED
SKU: FSL12V-CS1908-5050X60
Price: 59.98 GBP
Availability: InStock

Model: FSL12V-CS1908-5050X60 Review stars

0.0 (0 Reviews) Various options in stock

Starting at: £45.51

Qty Discounts Off Price
1-4 £45.51	5-19 £44.60	20-49 £43.24	50+ £41.42
* Discounts may vary based on options below

Select Specifications:

Select Kit:

Select PCB Width:

10mm (0.39in)

Select Brightness:

Select Length:

16.4ft (5 meters)

Select Waterproof Rating:

Qty: -+

Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

Product Information

Our newest DC12V Addressable RGB LED Strip, using CS1908 external IC (similar to WS2815, GS8208), dual-signal wires version, breakpoint resume series. If one LED is damaged, it will not affect the other LEDs working. Individually Addressable, every 1 IC controls 1 LED, each LED can be addressed and show any color you want. Total 300 pixels in 5m strip length, 60LEDs/m, digital and MADRIX programmable. No voltage drop in 16.4ft, you just need to power this digital led strip at one end.

This led light strip is available with two light brightness versions, normal brightness and super brightness, meeting different lighting needs. With 4-pin male connector and separated power wires at both ends for easy interconnection and power injection. Wide compatibility. Suitable for decorative lighting and atmosphere lighting. Widely applied for KTVs, hotels, bars, clubs, etc.

Normal Brightness VS. High Bright

Wattage is the same, are both 14.4W/m; High Bright than the brightness of Normal Brightness about 300MCD, High Bright 2300MCD, Normal Brightness 1900MCD.

LED Strips + Controller: 16.4ft CS1908 Programmable LED Strip + SP107E Bluetooth Music Controller

LED Strips + Controller + Power Supply: 16.4ft CS1908 Programmable LED Strip + SP107E Bluetooth Music Controller + 100W 12V 8.5A Meanwell Switching Power Supply + AC Plug

If you need lighting accessories, please click here to buy.

Product Specification

DC12V

LED Strip Type:	CS1908 Individually Addressable LED Strip
LED Chip:	RGB 5050 SMD
Input Voltage(V):	12VDC

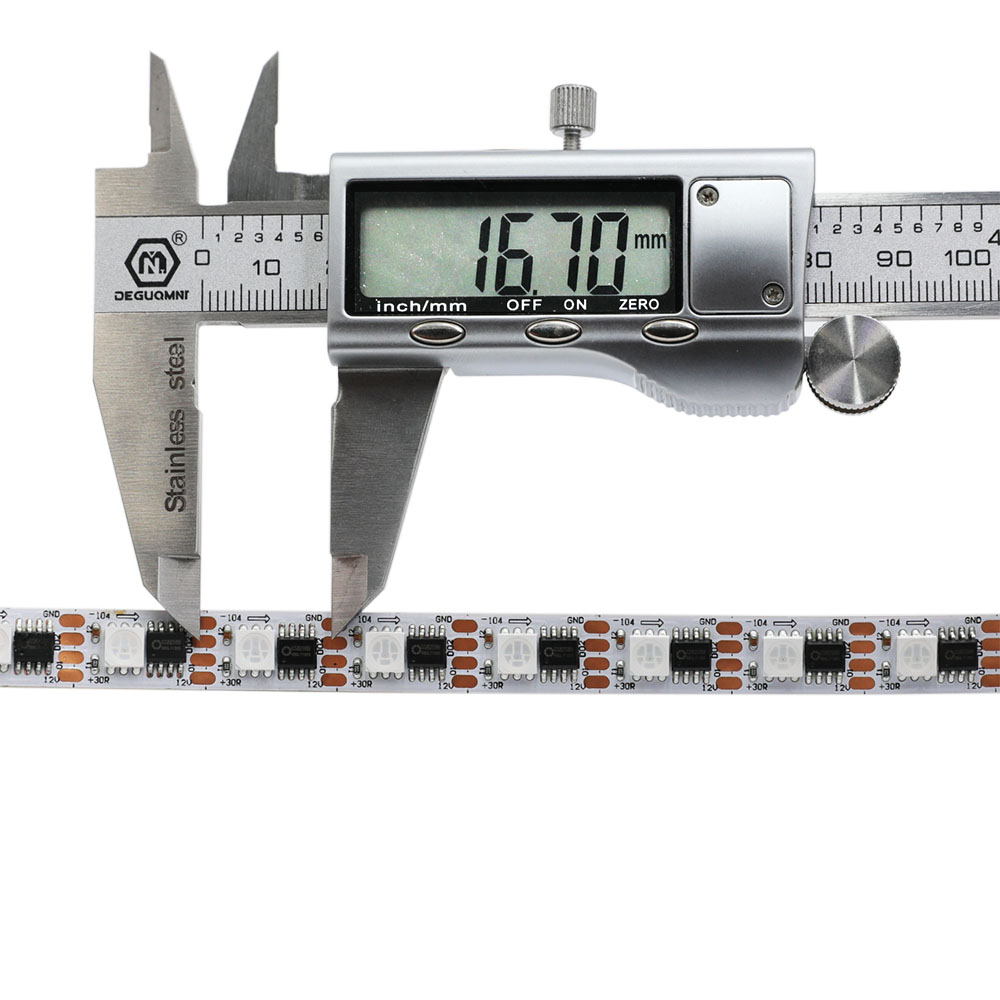

Length:	16.4ft/roll, every LED (16.7mm) can be cut
LED Quantity:	60 LEDs/m
IC Quantity:	60 pixels/m
Lumen Per LED:	20~22Lumen 3300lm Max /16.4ft
LED Color:	RGB Deram Color Change

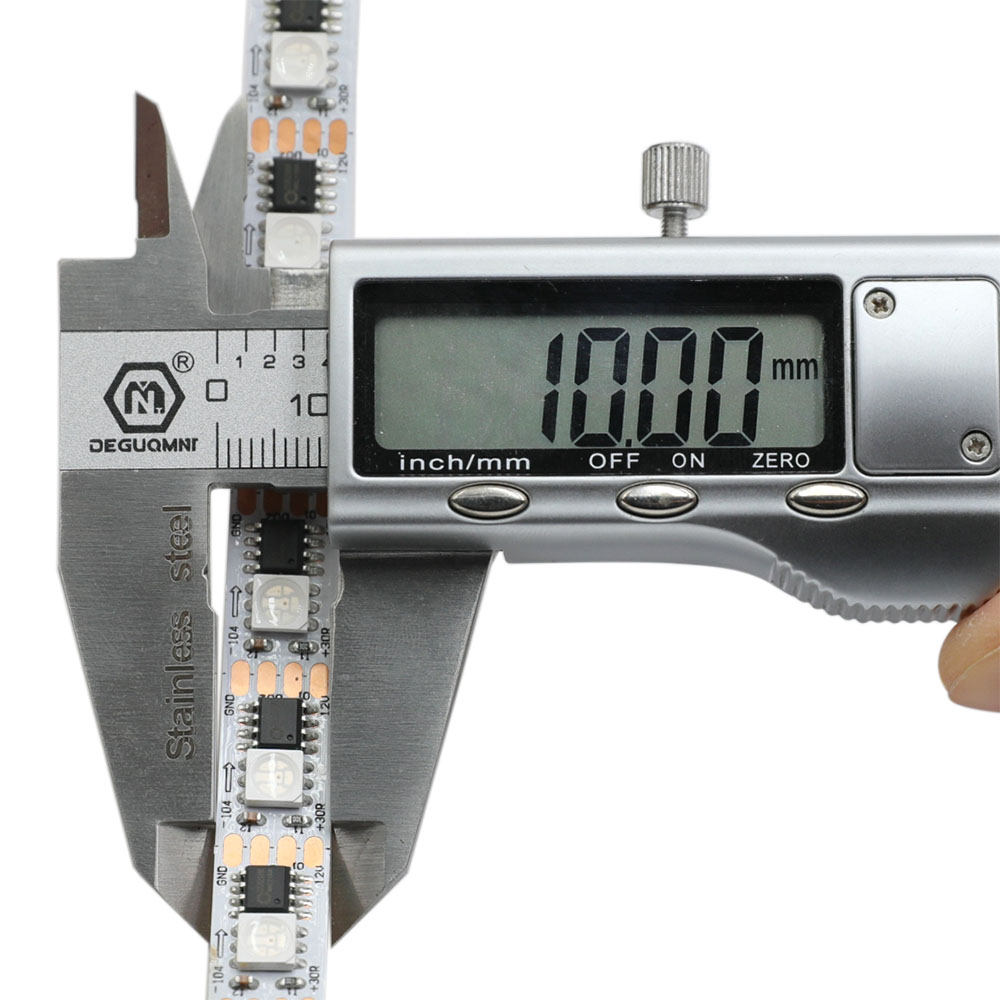

PCB Width:	10mm
Wavelength NM:	Red(620-630nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm)
Working Power:	72W /16.4Ft Max
Waterproof Rating:	Non-waterproof IP20, Waterproof IP65, IP67, IP68
Beam Pattern:	120 degrees
Lifespan:	50,000+hours
Max Running Length:	5-7 meters (16.4ft-23ft) with one end power

Waterproof Level Description

led strip waterproof level

How To Wire Addressable LED Strip Lights?

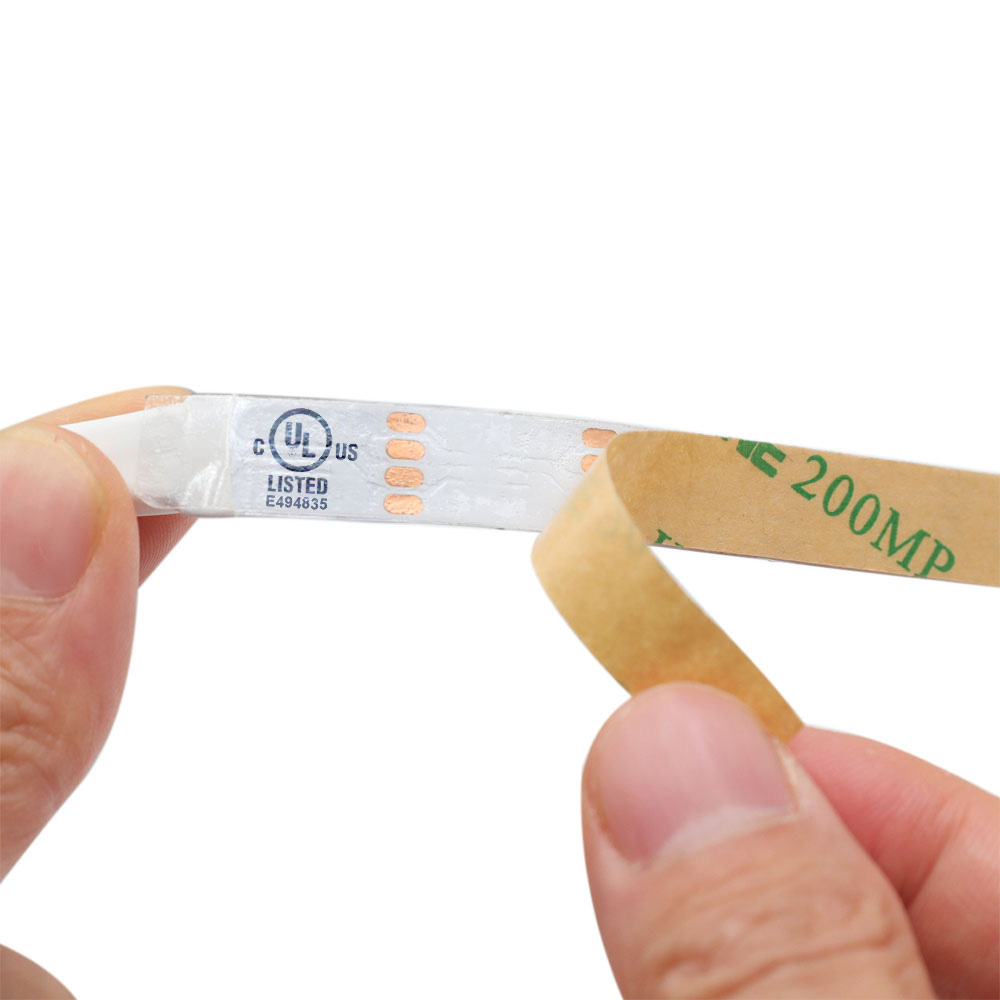

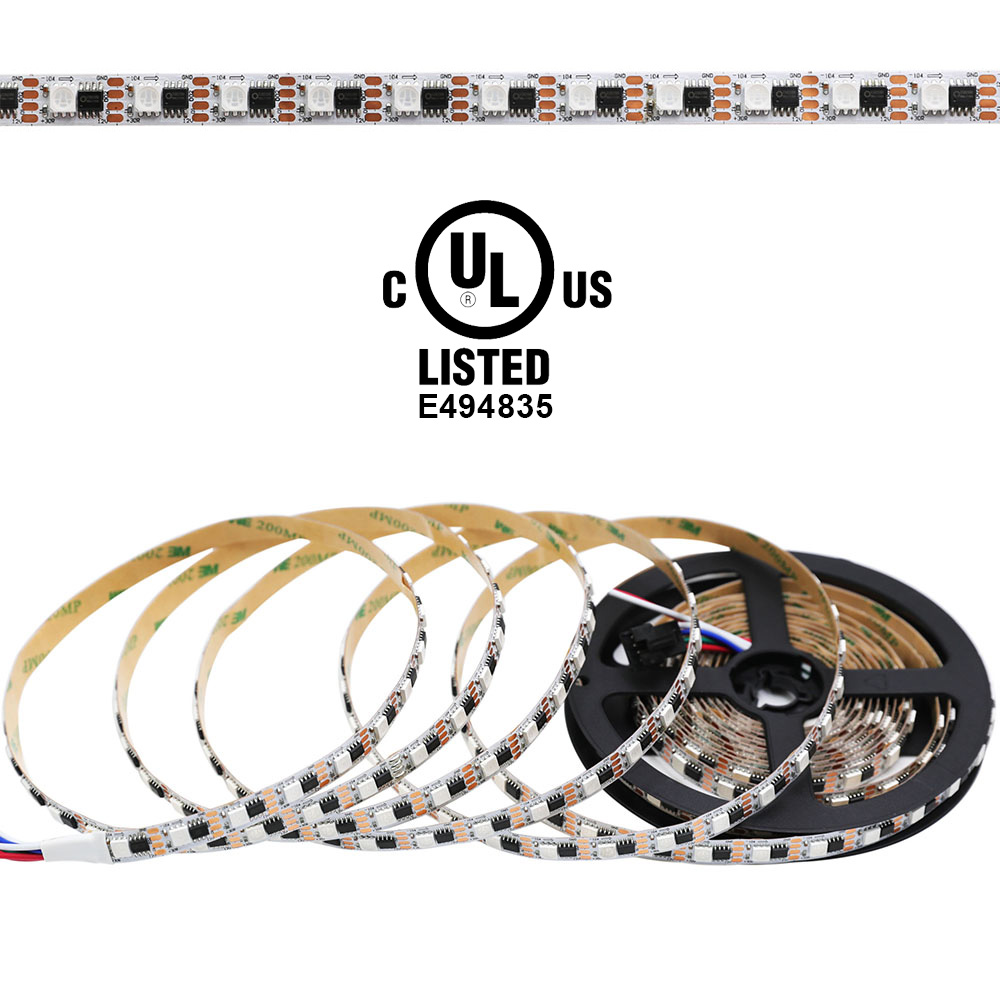

UL Listed Addressable RGB LED Strip Lights

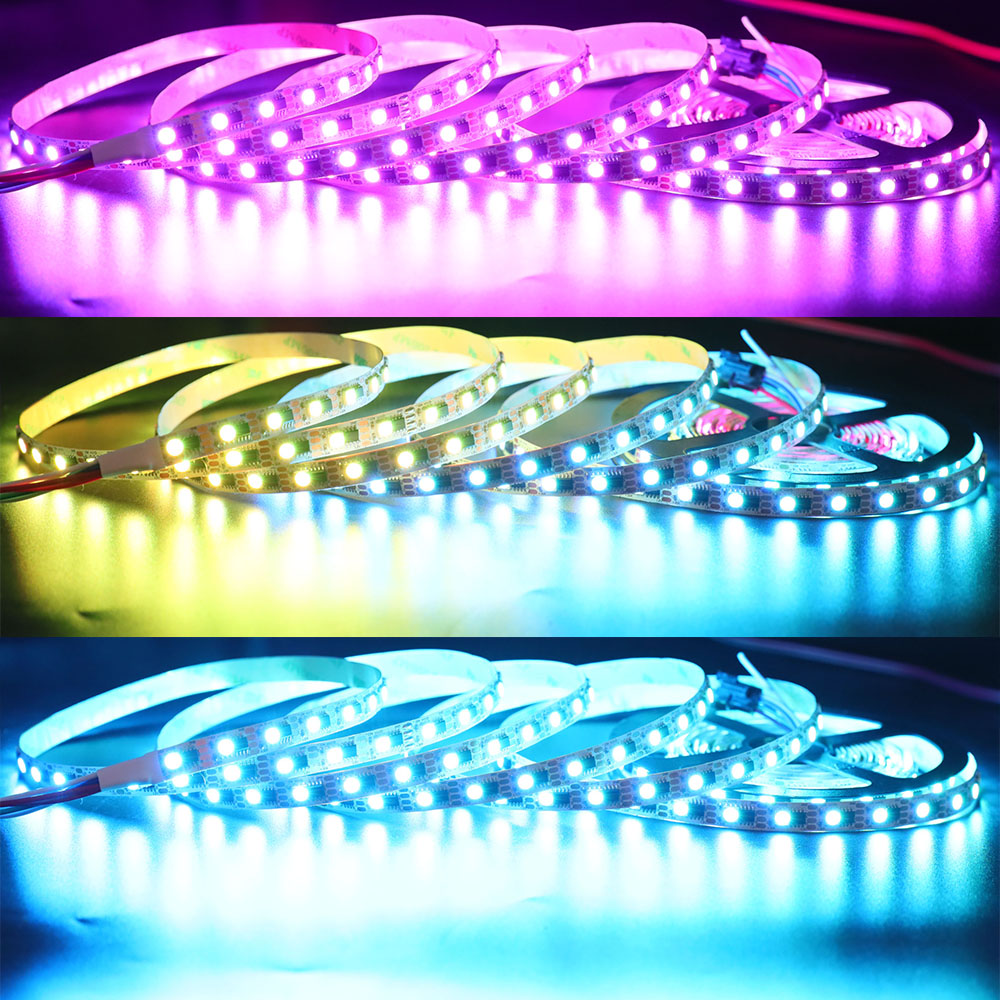

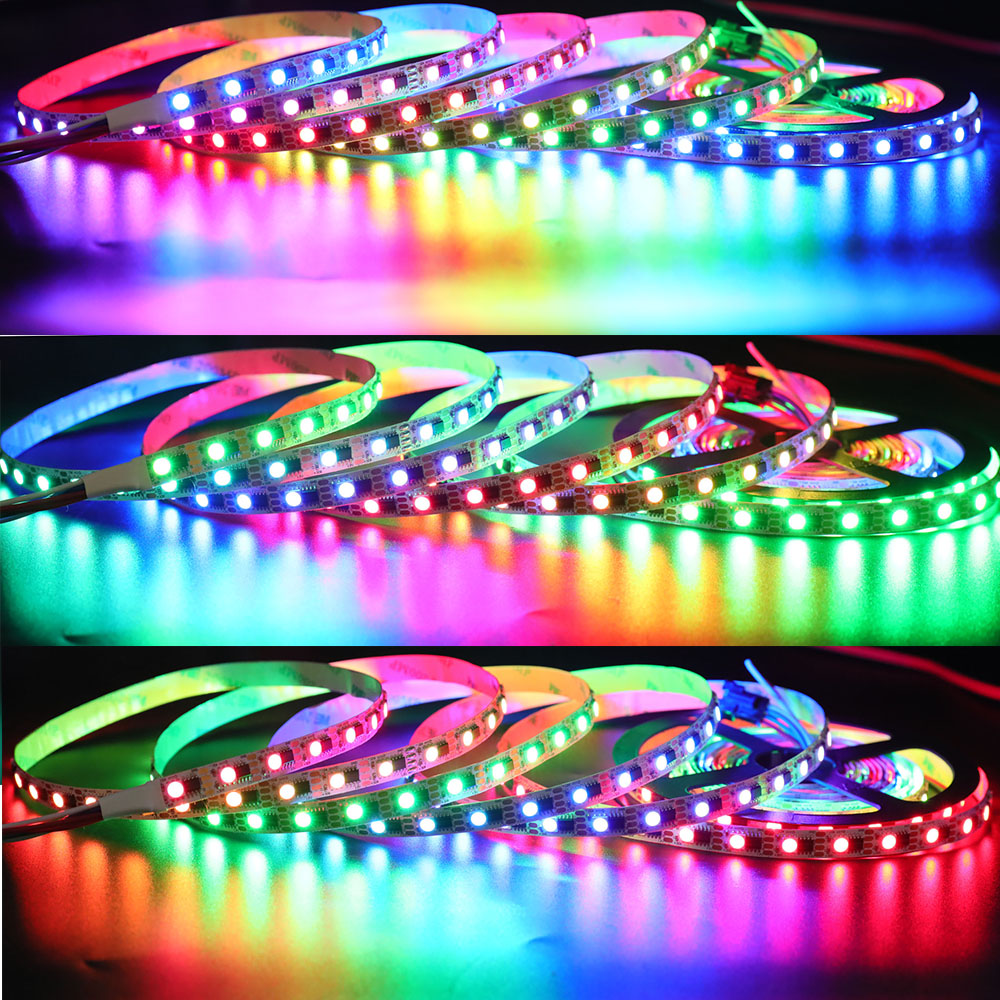

UL Listed Addressable RGB LED Strip Lights - photo 7

Reviews

Customer Experience

Your feedback is important to us! Share your thoughts and photos with other customers.

Write a Review & Upload Photos

Downloads

Files for FSL12V-CS1908-5050X60

PDFFSL12V-CS1908-5050X60 product data sheetFull specifications, dimensions, cut points, wiring and IP options — the same details shown on this page, laid out for printing and engineering review.PDF · generated from the current product page · opens in a new tabOpen PDF

Need this page for a project file or an engineering check? Click Open PDF, then save or print it from your browser. For CAD drawings, IES files or a signed test report, contact our engineers and quote the model number.

Images

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

LED Strip Light Guide

Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.

Which controller does this LED strip light need?

Addressable LED strip lights take a data signal, so they need an SPI (pixel) controller that supports this IC — an ordinary RGB controller will not drive them. Data flows one way: connect the controller to the input end marked with the arrow. Wiring addressable LED strip lights

Do I need power injection?

5 V addressable LED strip lights lose voltage fastest, so longer runs need power fed in at both ends and at intervals along the run; 12 V and 24 V versions carry further. Keep the data line short between controller and first pixel. Choosing an addressable LED strip light

Which waterproof rating should I choose?

Available on this model: Underwater IP68 - Adhesive Back · Outdoor Silicone Tube IP67 - With Brackets · Surface Glued IP65 - Adhesive Back · Non-Waterproof IP20 - Adhesive Back. IP20 is for dry indoor use, IP65 handles splashes, IP67 suits outdoor and wet areas, IP68 is for continuous submersion. Choosing a waterproof rating

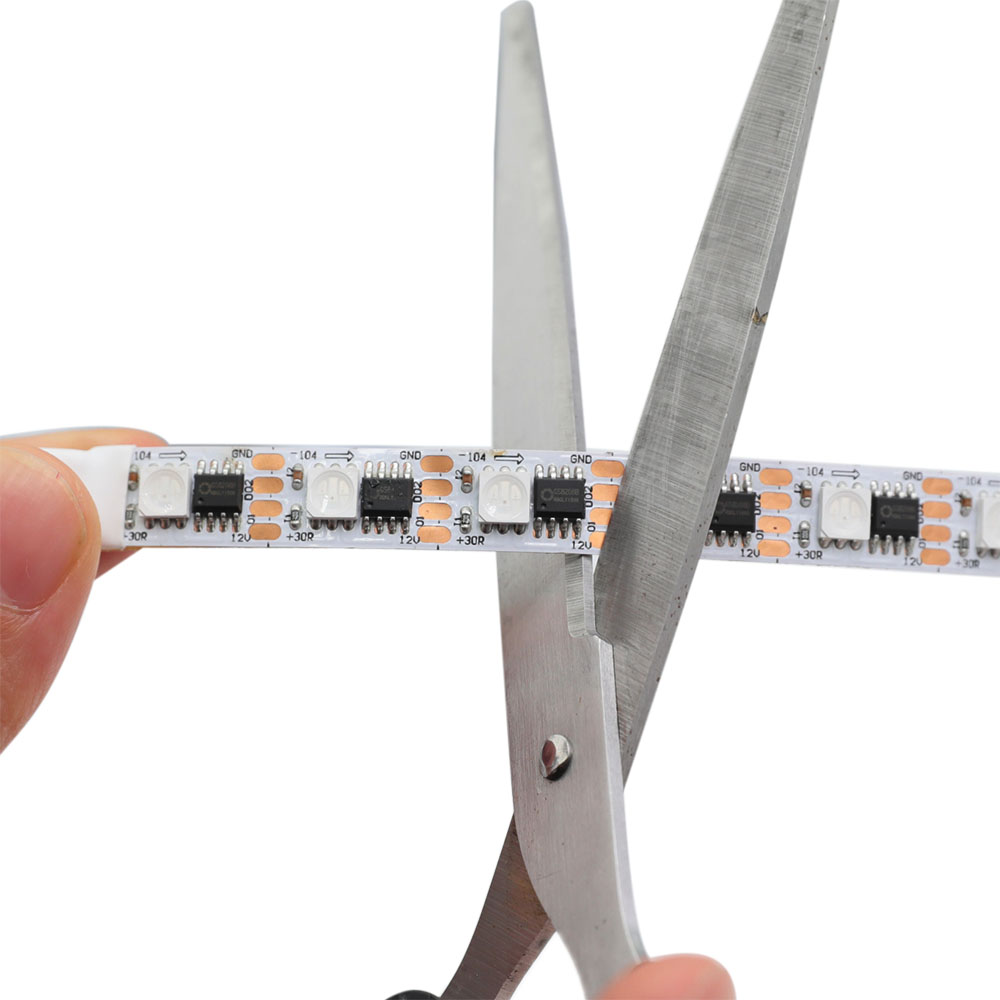

Can I cut it to length?

Yes. Cut only on the marked cut lines between the copper pads — the cut interval for this model is on its spec sheet. Rejoin with solder or a solderless connector. Cutting LED strip lights · we can also cut to length and fit your connector before shipping: custom LED strip light assembly.

What size power supply do I need?

Take the watts per metre from the specification above, multiply by the length you are running, then add about 25% headroom. Power calculation guide · Choosing a power supply

Will it fit an aluminium profile, and how dense are the LEDs?

PCB width 10mm (0.39in). Choose a profile whose inner width is at least the PCB width; denser LEDs give a smoother line close to a diffuser. LED aluminium profiles
