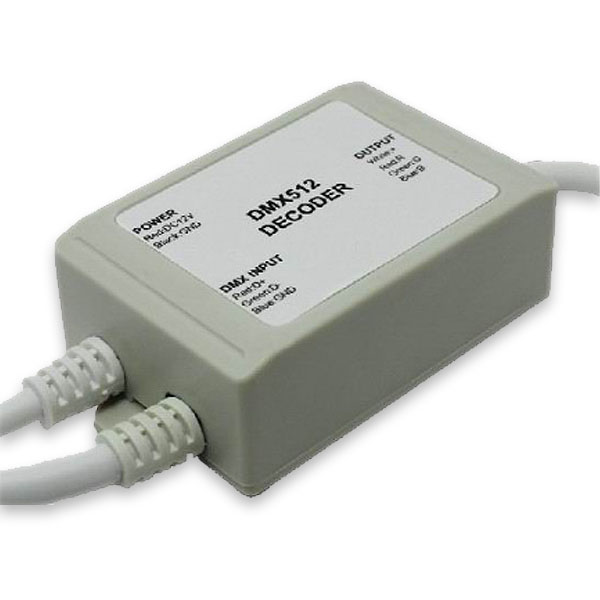

DC12-24V DMX PWM Waterproof Controller LN-DMXTCON(FS)-3CH-LV
DMX waterproof controller adopts an advanced computer control chip, receives DMX512 standard digital control signal widely used in the world, and converts it into a PWM control signal to drive LED; it can be connected with DMX digital console to achieve dimming or various program changes.
Working temperature: -20-60℃
Supply voltage: DC 12-24V
Output: 3 Channel
Connecting mode: Common anode
Gray series: 256
Gross weight: 210g
Output current：<4A（each channel）
Static power consumption：<1W
Output power: 12V<144W, 24V<288W
Direction for use

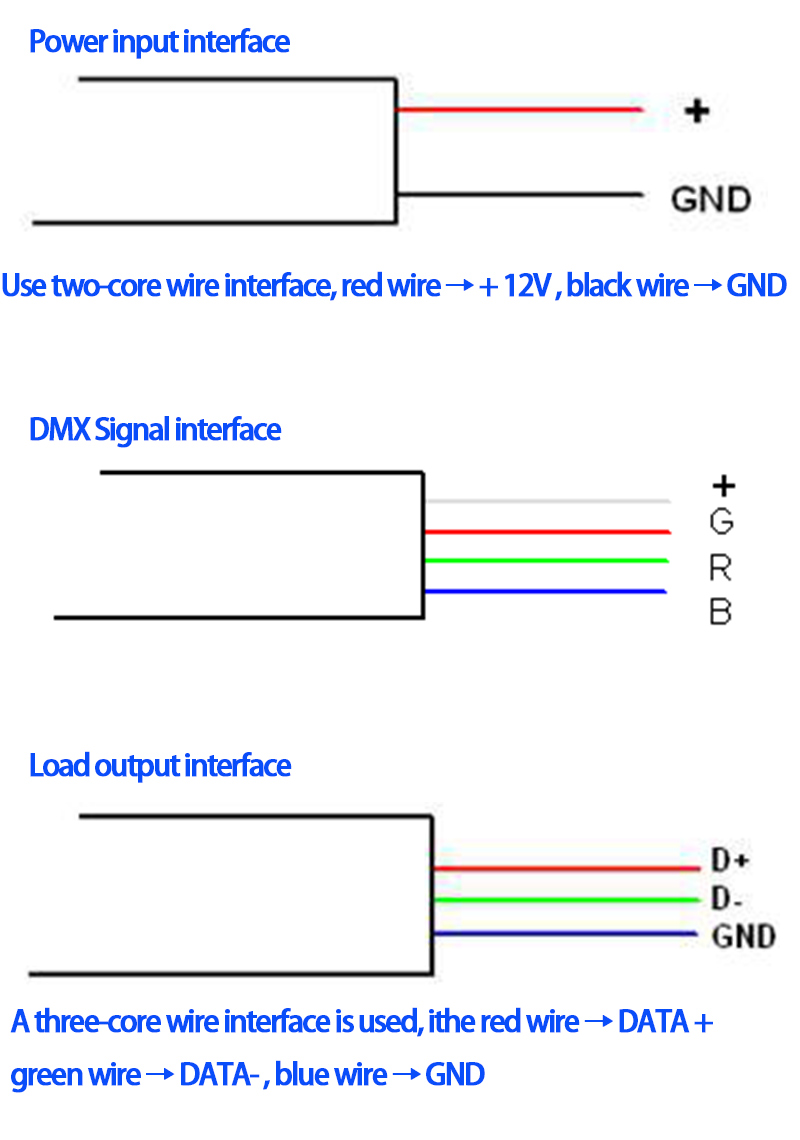

1.According to DMX decoder panel silk-screen prompt, in sequence to connect the input and output signal wire. Please ensure short circuit can not occur between connecting wire before you turn on the power.
2.In the absence of receiving DMX signal, the module will achieve a seven color gradual changing mode(built-in function).
3.Receiving DMX signal, the built-in function is not available, it will be controlled by computer console control.
4.You could set the address code of module ( from 1 to 1022) through the DMX editor of our company.

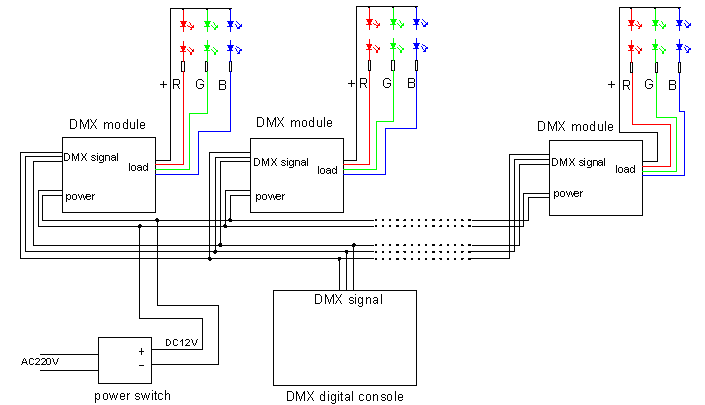

Typical application 1 (without DMX function):
