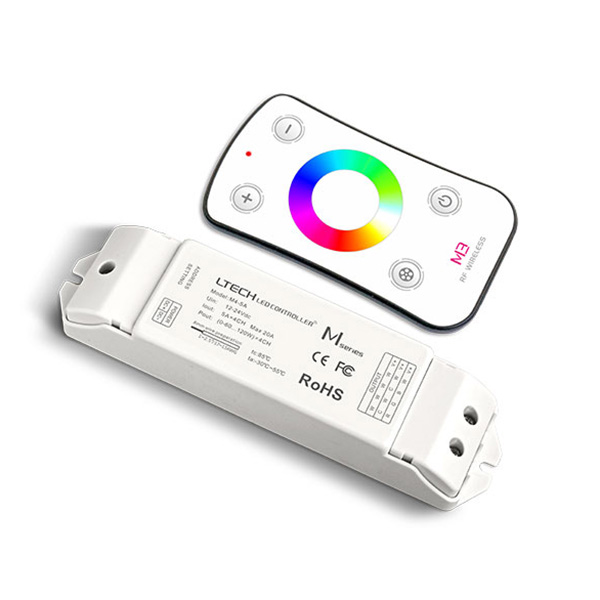

RGB Controller M3+M4-5A
M series LED controller is compatible with 8 kinds remotes of different function (patent technology) .
which means using one receiver could experience single color/CT dimming, RGB/RGBW adjustment to
meet customers' different lighting requirements. With the RF remote, speed/brightness adjustment.
customise color and lighting changing modes selection could all be achieved

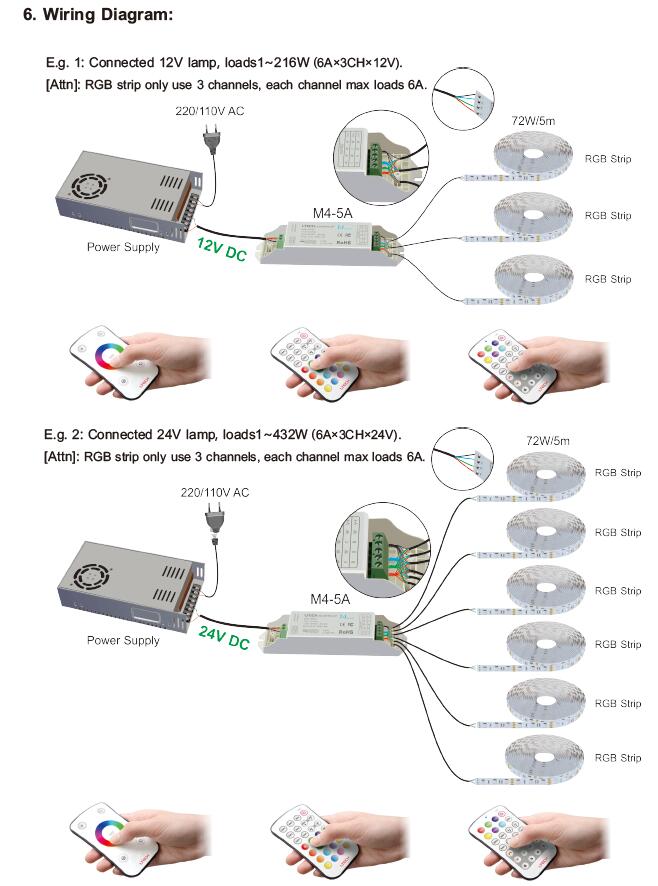

CV Receiver (RGB)
Input Voltage: 12~24V DC
Max Current Load: 6A×3CH Max 18A
Max Output Power: 90W/216W/432W(5V/12V/24V)
M3 Remote Control
Working voltage: DC3V(Battery CR2032 )
Working Frequency: 433.92 MHz
Remote Distance: 40-50m
Working Temp. :-30℃~55℃
Weight (N.W.): 42g
