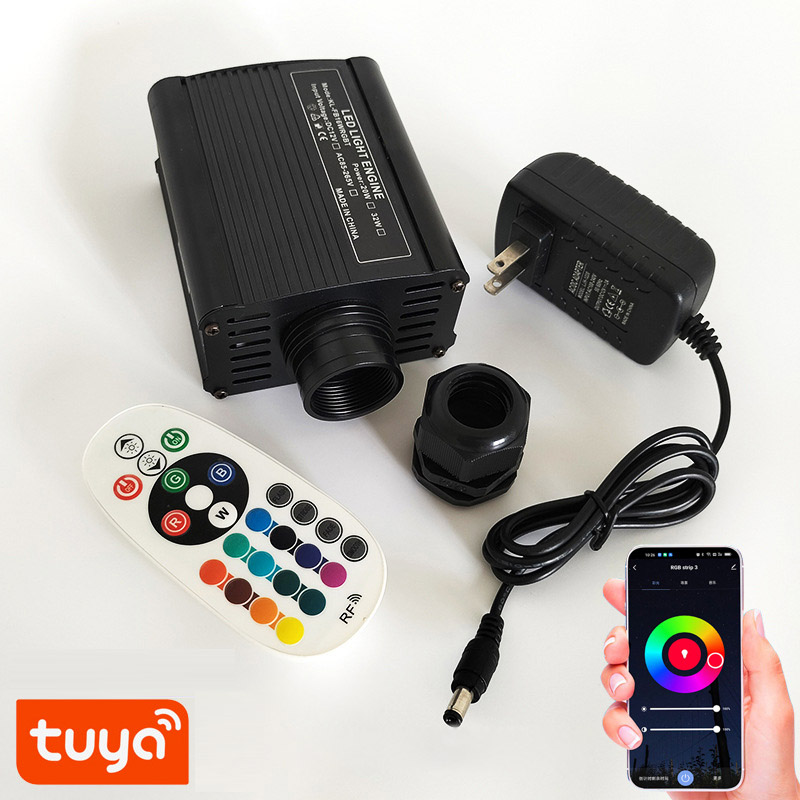

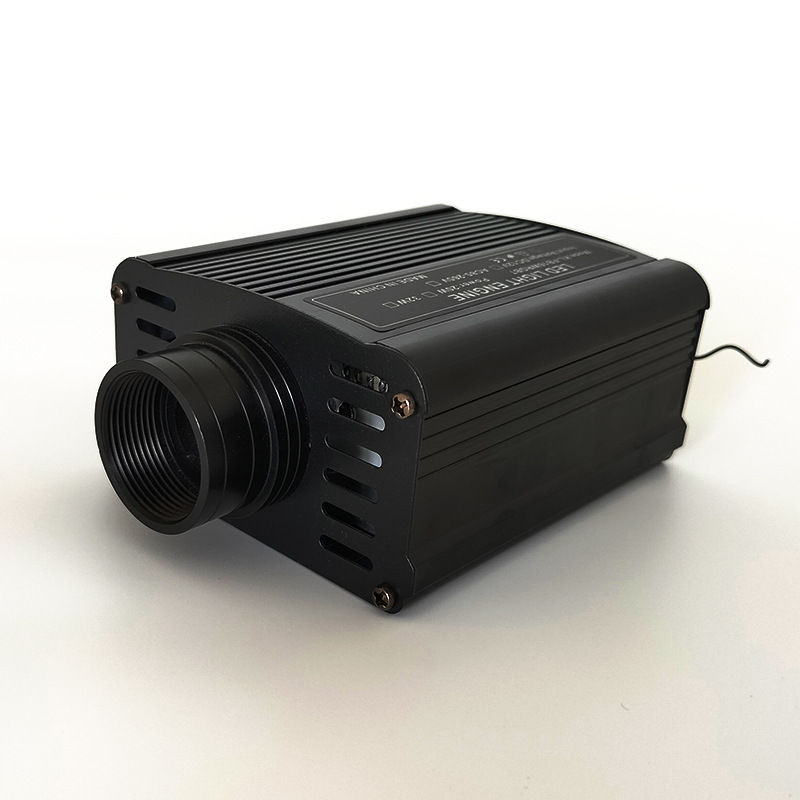

WiFi Tuya 16W RGBW LED Light Engine RF Remote Control Fiber Optic Lighting

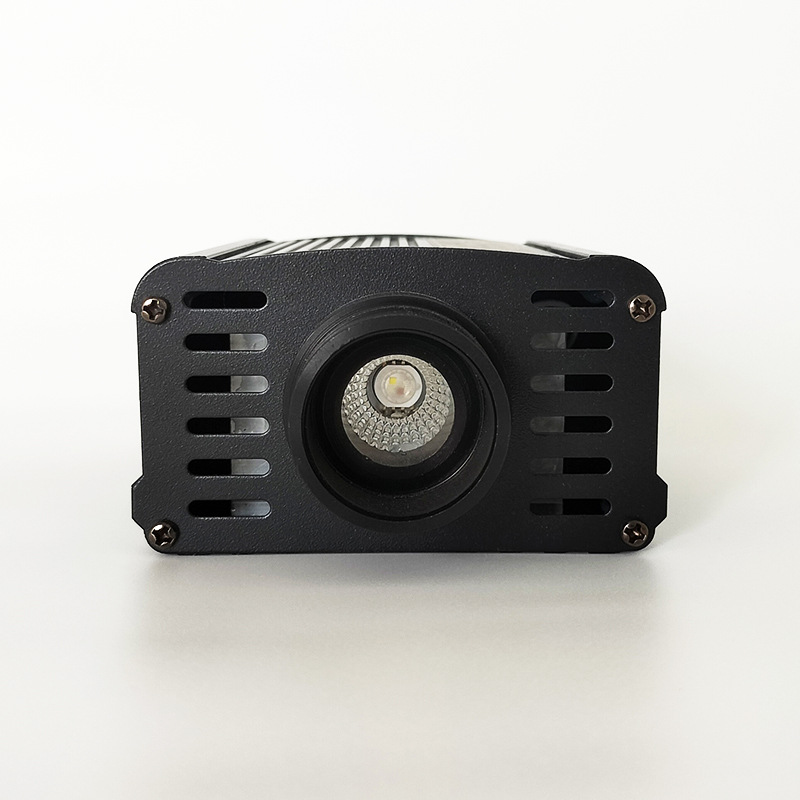

This is an RGBW color changing illuminator for fiber optic lighting. The coupling head is 20mm in diameter and can fit 600pcs 0.75mm or 300pcs 1mm fiber optic cables.
Smartphone APP Tuya or RF remote to control the fiber optic light color, brightness, and dynamic mode. Support Amazon Alexa, Google Assistant, Xiaodu, and Tmall Genie intelligent voice control.
The product comes with a microphone, the fiber optic LED lights can follow the rhythm of the music changes.
More about fiber optic lighting, click here to view.
Product size: 115 * 95 * 55mm
Operating temperature: - 10-50 ℃
Diameter of coupling head: 20mm
Installation quantity of fiber optic cables: 0.75mm (600 pieces) 1mm (300 pieces)
1. Scan the QR code on the product to download the Tuya APP and register the account.
2. Open the app and click Add Device to complete product matching.
3. Enter the main interface of the APP for control operations (light color, scene, music, timing)
