WS2811 LED Strip 24V RGB Engineering Lighting 300 LEDs 100 Pixels
WS2811 pixel led light strip for project lighting. 5m/16.4ft for sale. 24VDC low voltage input, 60 RGB lights (20 WS2811 pixels) per meter, 3 LED lights can be cut. 15 meters with almost no voltage drop at both ends of the power injection.
24V WS2811 led strip lights are usually 6 lights a cut, it is 3 lights a cut, the cut length is more accurate, and you can easily get the strip length you want to install.
Adapts 5050 SMD LEDs, the color chasing strip lights consume 14.6W per meter, high brightness, and low energy consumption. It needs a 24V meanwell power supply that is available with at least 87.6W to run a 5m strip light.

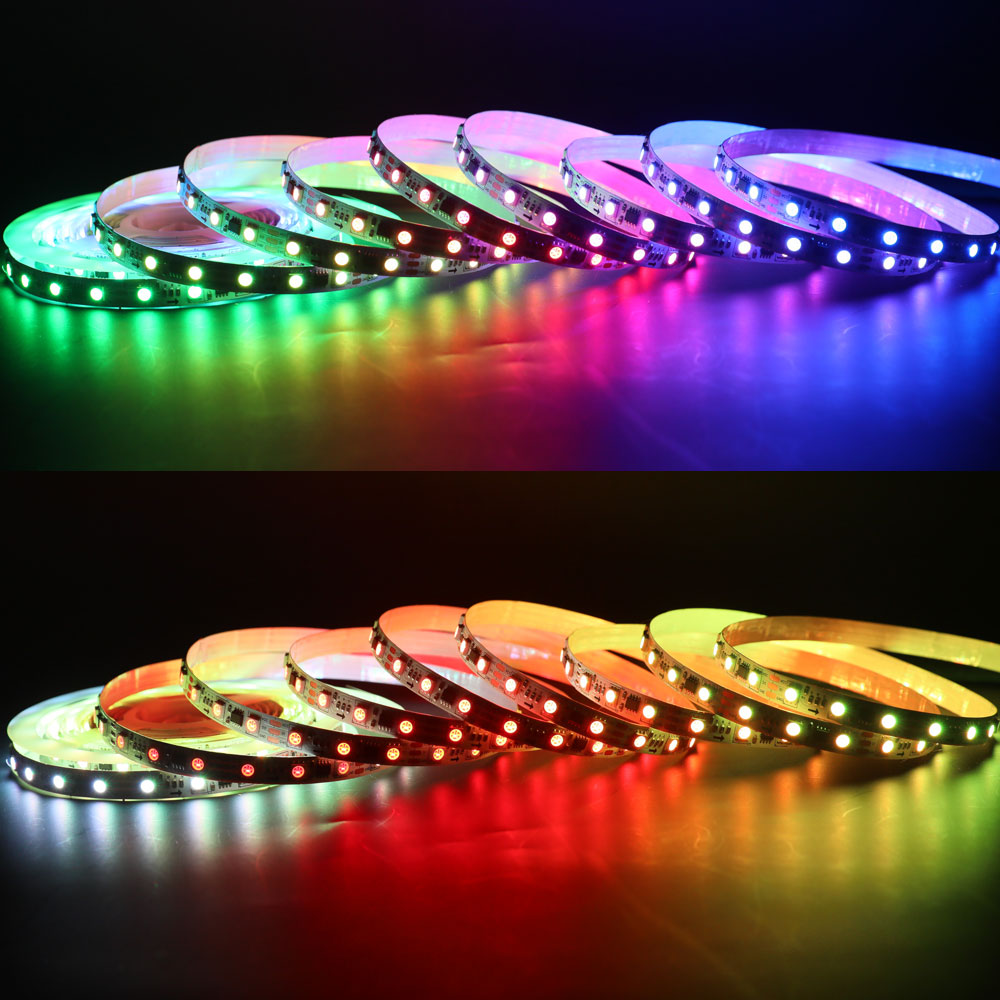

This WS2811 lights addressable led strip can display a variety of dynamic light effects through the WS2811 controller (SPI controller). It comes with a 3pin JST connector and a 2pin power wire to connect, easy to use.
Note: If you select the kit, we will send you a 16.4ft led strip + a SP107E Bluetooth controller + a 100W Meanwell switching power supply.
Standards and Certifications
|Light Strip Type:||WS2811 LED Addressable RGB Light Strip|
|LED Chip:||SMD5050 + WS2811 IC|

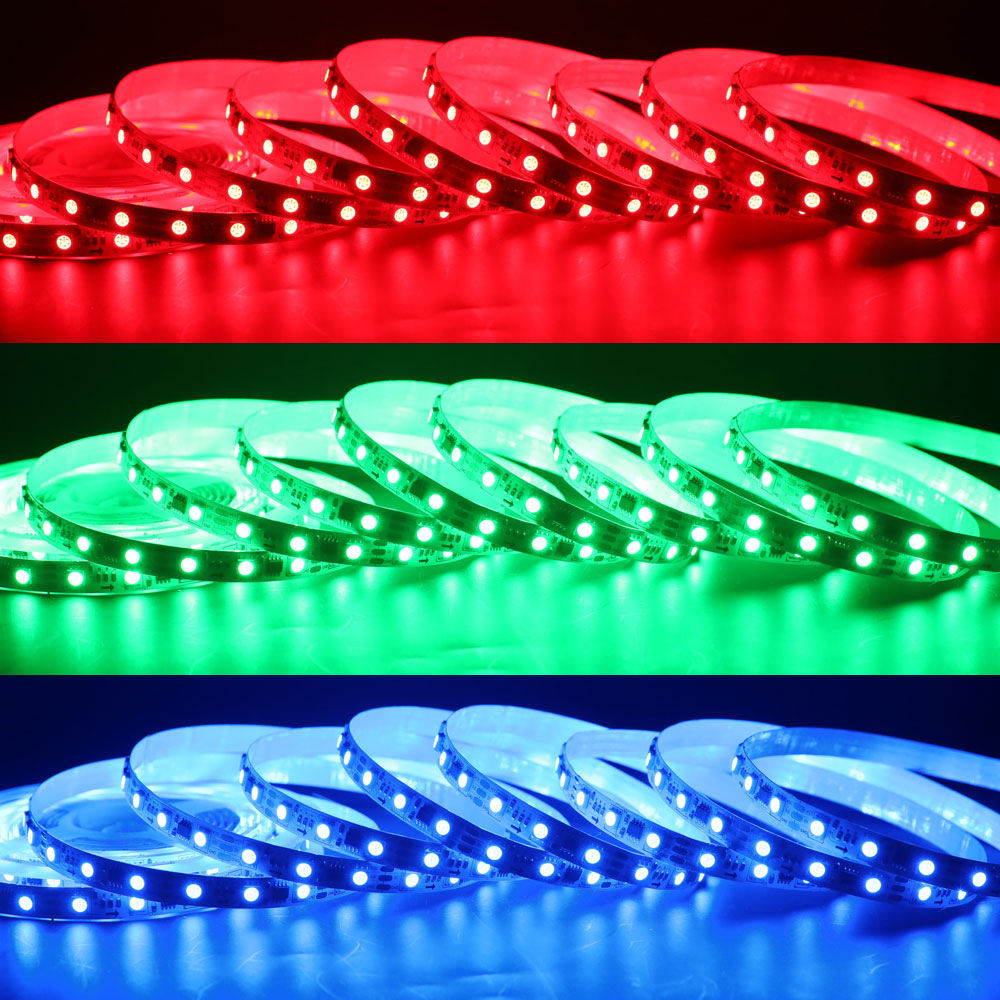

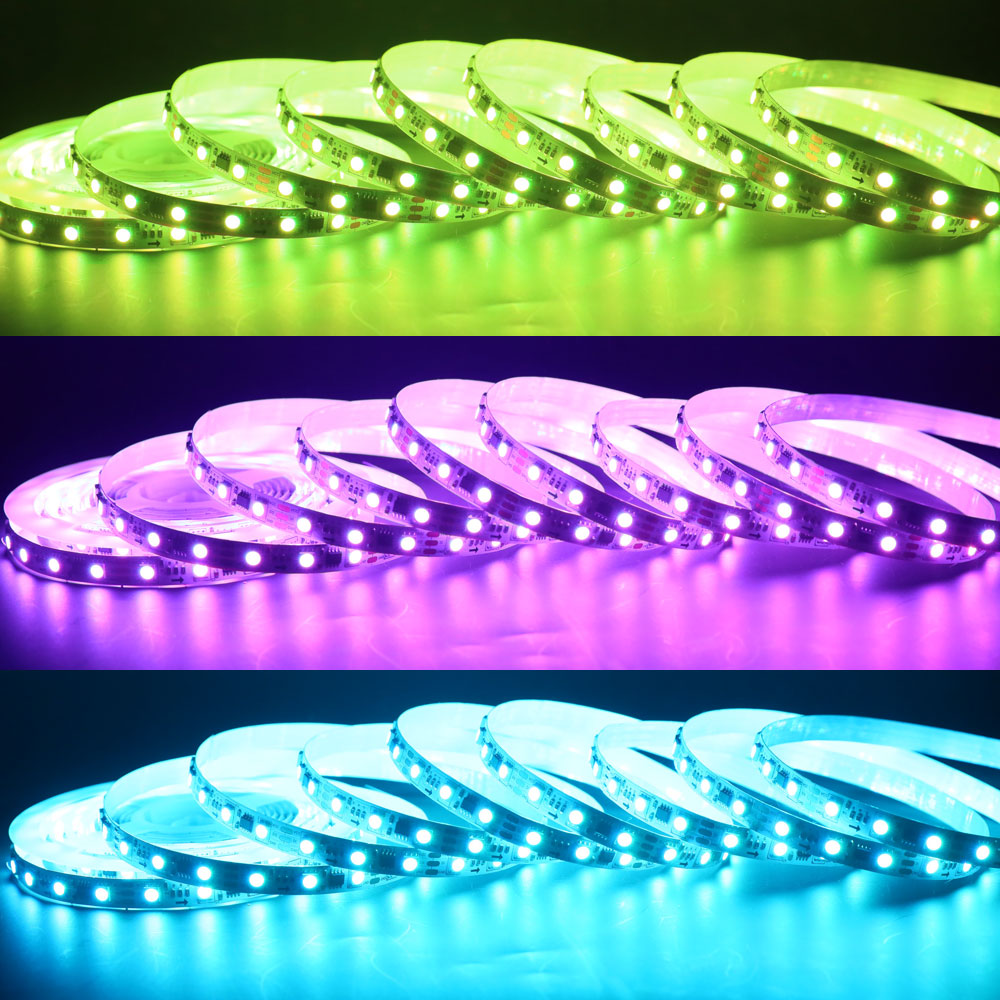

|LED Color:||RGB Dream Color|
|LED Quantity:||60 LEDs/m, 300 LEDs per roll|
|IC Quantity:||20 ICs/m, 100 ICs per roll|

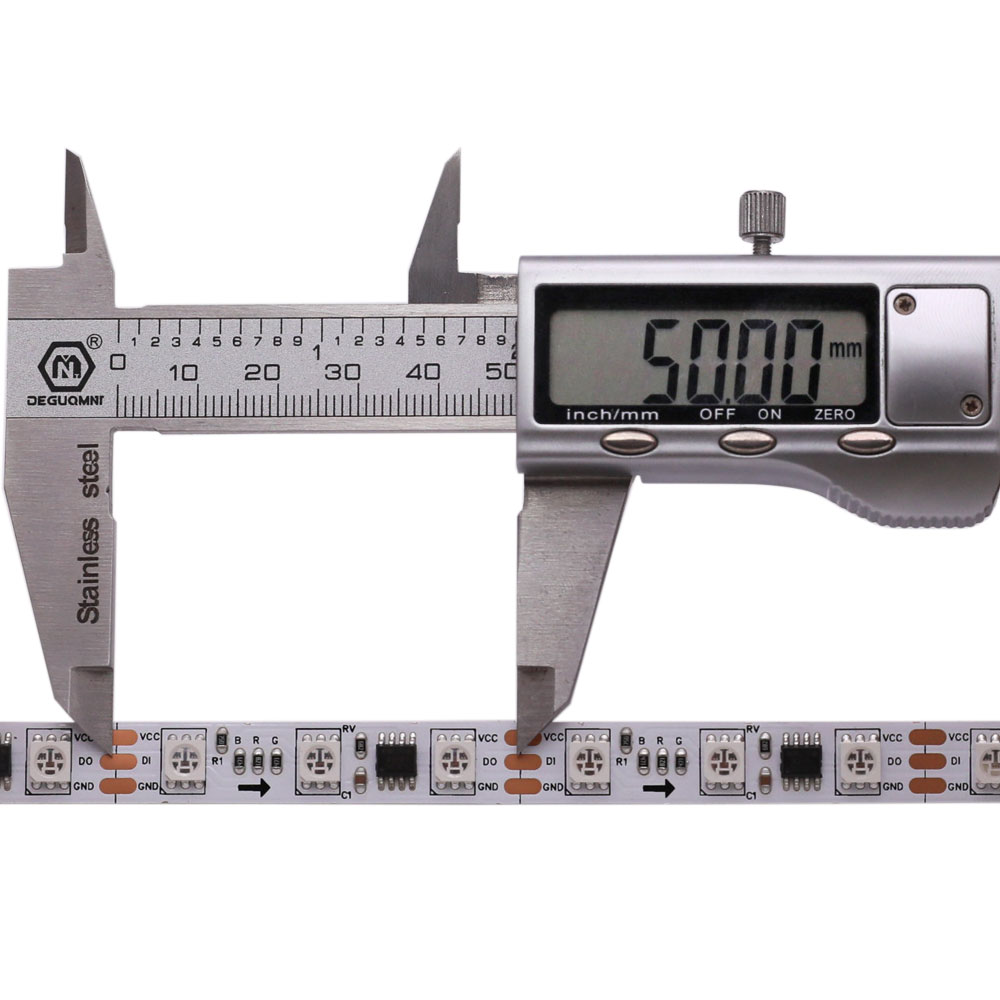

|Cut Unit:||50mm - 3 LEDs can be cut|
|Waterproof Rating:||Non-waterproof IP20, Indoor Waterproof IP65, Outdoor Waterproof IP67 IP68|
|LED Chip Brand:||Epistar|
|Lumen:||22 lm/LED, 6600lm/16.4ft|
WS2811 Wiring Diagram:
Available WS2811 LED Pixel Strip Light Fixtures:
LED silicone sleeve is flexible and IP67 outdoor waterproof, there are different internal structures, allowing you to change the light-emitting angle and luminous type.
LED aluminum profile is also available with multiple types to create various linear lighting, such as under cabinet lighting, wall lighting, ceiling lighting, etc. And they all evenly diffuse the LED lights and protect the strips.
LED programmable digital display
Hotels, theaters, clubs, shopping malls decorations
Architectural decorative lighting
Show exhibition decorations
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
