LN-SPIR-1CH-LV 1 Channel Human Body Induction Switch, Infrared Detection Controller
The human body induction switch is an infrared detection controller that uses infrared detection to control the load switch. The user can install the human body sensor in an appropriate environment according to actual needs.
Working Temperature: -20-60℃
Power Supply Voltage: DC12-24V
Output Voltage: DC12-24V
Sensing Distance: 5-8 M
Output Current: <6A
Output Power: 12V:<72W, 24V:<144 W
Delay Time: 1-10 min (adjustable)
Dimensions: L76ΧW45ΧH34 mm
Packing Size: L87ΧW54ΧH38mm
Net Weight: 32g
Gross Weight: 60g

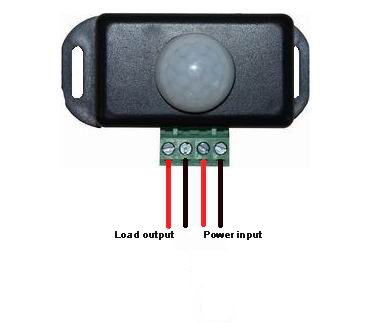

Power input/load output interface
Instructions for use

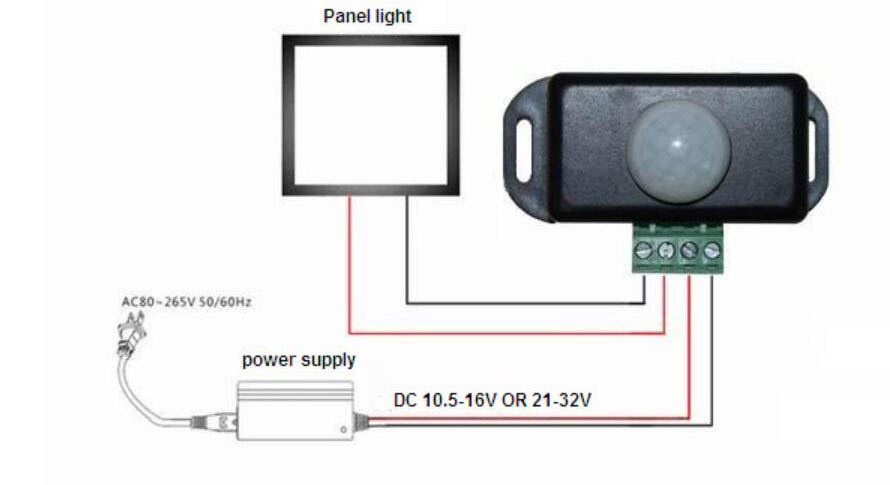

1. Connect the load line first, and then the power line; make sure there is no short circuit between the connection lines before powering on;
2. There is a time setting knob on the back of the controller. Rotate the knob to set the minutes of the switch off delay. When a person is detected, the load light is turned on. When the person leaves for the set number of minutes, the load The light goes out automatically.
3. The signal output line and input line of the controller should be connected correctly.
|By : Michael Rebustillo Date Added: 11/02/2015|
|Works great. I wasn't sure if it would work to trigger my pneumatic Halloween prop but it works and the two second delay is perfect. I initially had some problems when I first hooked it up. It was non responsive. It could've been the way I wired it. After trying it again the next day it worked. I had to cut the connectors because my connections are bare wires. I would recommend if you're looking for an inexpensive motion trigger.|
