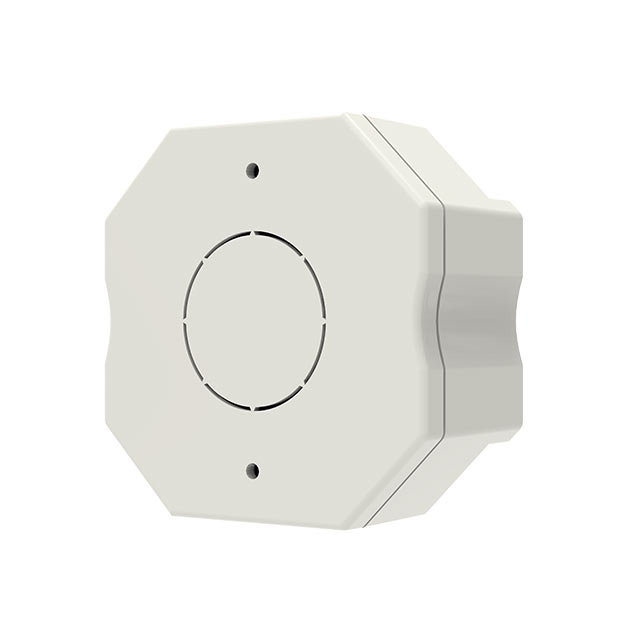

ZigBee & RF AC Triac Dimmer S1-B(WZ)

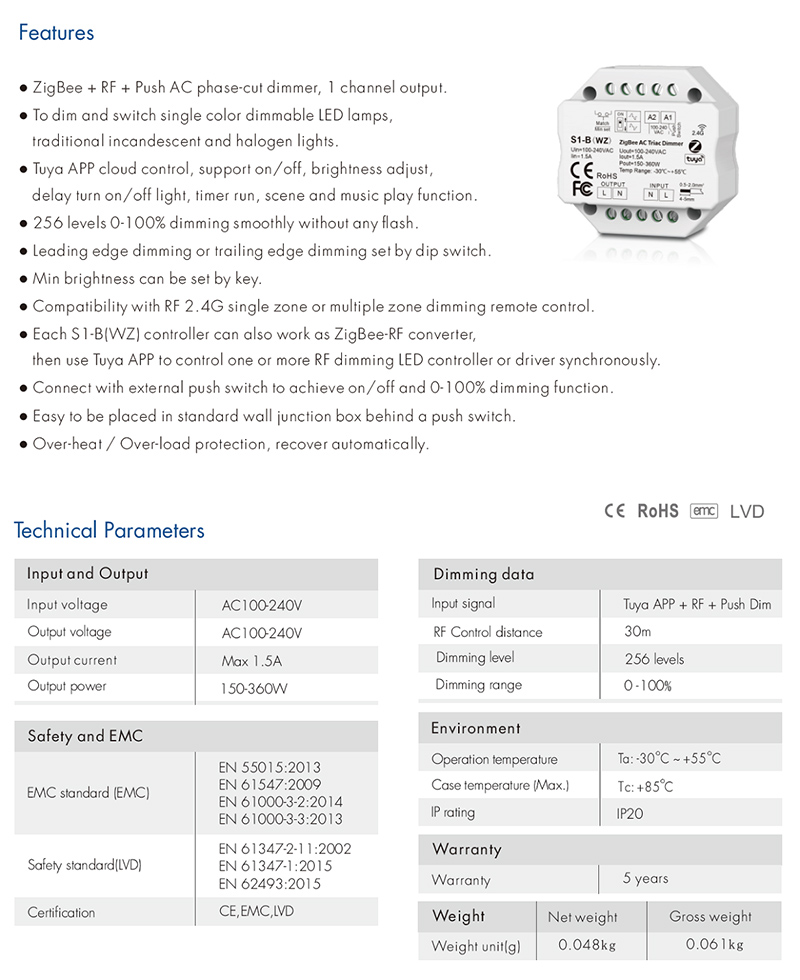

ZIGBEE+RF+PUSH AC phase-cut dimmer,1 channel output.
To dim and switch single color dimmable LED lamps , traditional incandescent and halogen lights.
Tuya APP cloud control, support on/off, color temperature and brightness adjust,delay turn on/off light,timer run, scene and music play function.
256 levels 0-100% dimming smoothly without any flash.
Leading edge dimming or trailing edge dimming set by dip switch.
Min brightness can be set by key.
Compatibility with RF 2.4G -single zone or multipe zone dimming remote control
Each S1-B(WZ) controller can also work as WIFI-RF converter,
then use Tuya APP to control one or more RF dimming LED controller or driver synchronously.

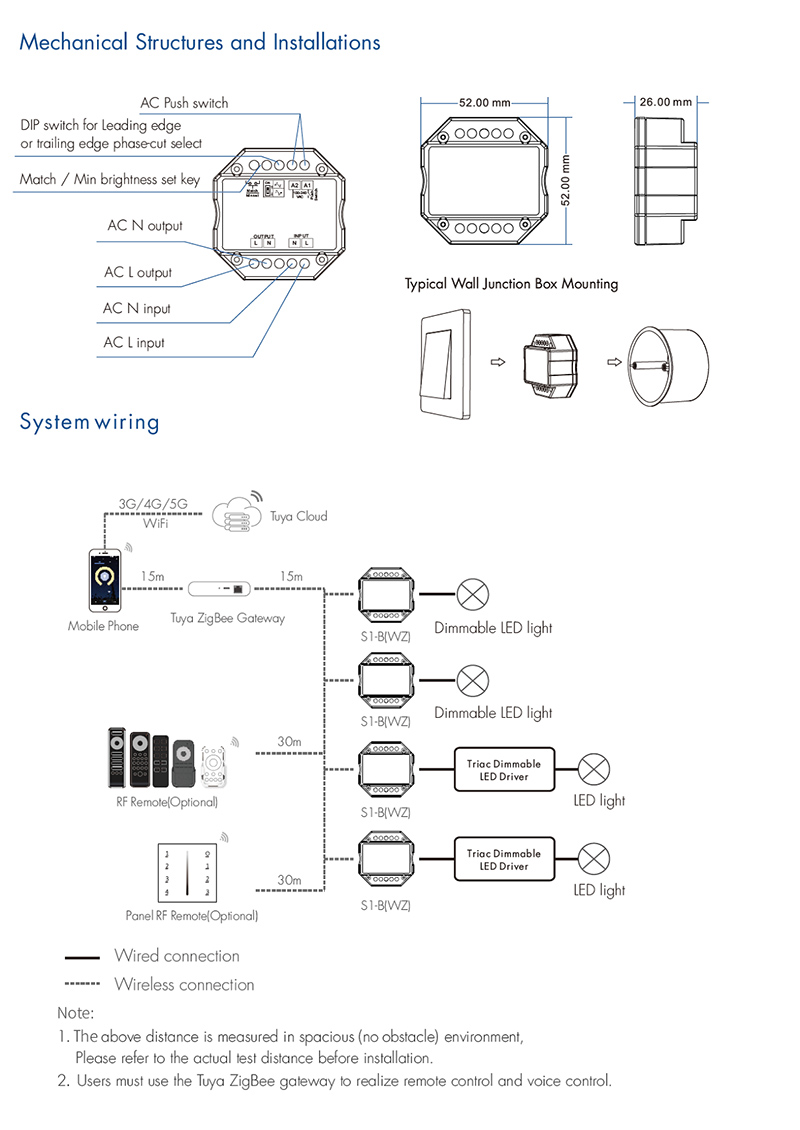

Connect with external push switch to achieve on/off and 0-100% dimming function.
Easy to be placed in standrad wall junction box behind a push switch.
Over-heat/Over-load protection, recover automatically.
Input Voltage: AC100-240V
Output Voltage: AC100-240V
Output current: MAX 1.5A
Ourput power: 150-360W
Input signal: Tuya APP+RF+Push Dim
Control distance: 30m
Dimming gray scale: 256 levels
Dimming range: 0-100%
Safety and EMC
EMC Standard (EMC): EN55015,EN61547,EN61000
Safety Standard(LVD): EN61347, EN62493
Standards and Certifications
