Product Information
Deliver precise, professional-grade lighting control to your specialized fixtures with the Ltech MT-100-400-D1A1, a dedicated 0-10V constant current LED driver. Uniquely engineered for magnetic and linear lamp systems, this compact magnetic driver ensures whisper-quiet operation, eliminating the high-frequency noise common with lesser components. It provides exceptionally smooth, flicker-free dimming from 0% to 100%, automatically adapting to both 0-10V and 1-10V control signals. With features like non-polarized inputs, selectable current outputs, and comprehensive safety protections, the MT-100-400-D1A1 simplifies installation while delivering the reliable performance required for high-end architectural, retail, and gallery lighting. This driver is an essential component for any advanced Ltech Control System installation.
Key Features
Optimized for Magnetic & Linear Lights
Specifically designed for quiet magnetic installation and seamless integration with linear lighting systems.
Versatile 0-10V & 1-10V Dimming
Automatically identifies and adapts to both 0-10V and 1-10V dimming signals for broad compatibility.
Selectable Constant Current Output
Features multiple output current settings between 100mA and 400mA to precisely match your LED load.
Flicker-Free Performance
Delivers an exceptionally smooth dimming curve from 0% to 100% without any visible flicker or noise.
Simplified Installation

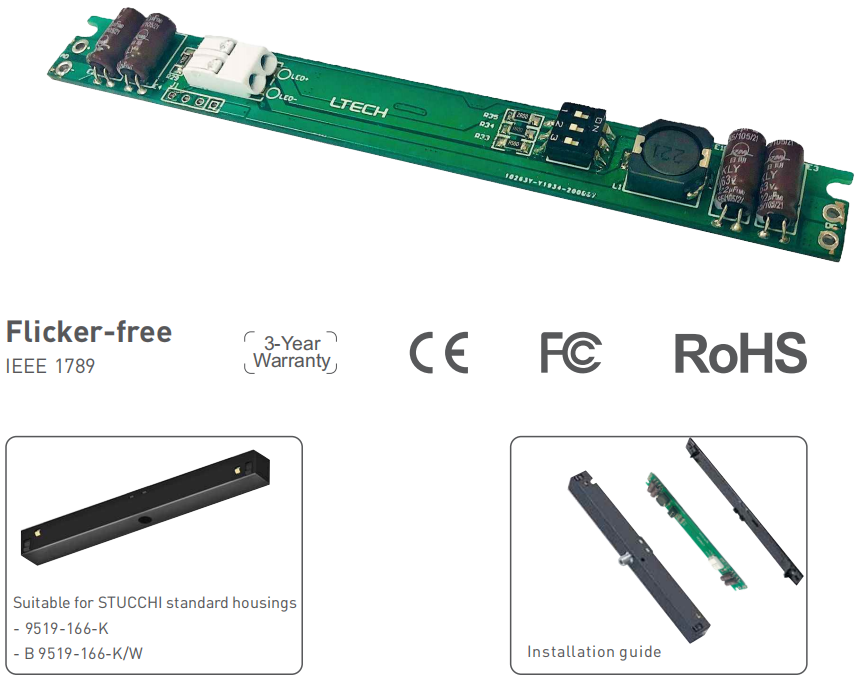

Features non-polarized inputs, hot-pluggable connections, and compatibility with STUCCHI standard housings.
Robust Safety Protections
Equipped with short circuit, overload, no-load, and anti-reverse protections for maximum reliability and safety.
Technical Highlights
- DC to DC constant current output ensures stable and consistent light quality.
- Engineered for silent magnetic mounting, eliminating audible high-frequency buzzing.
- Input and output connections support hot-plugging for easier on-site adjustments.

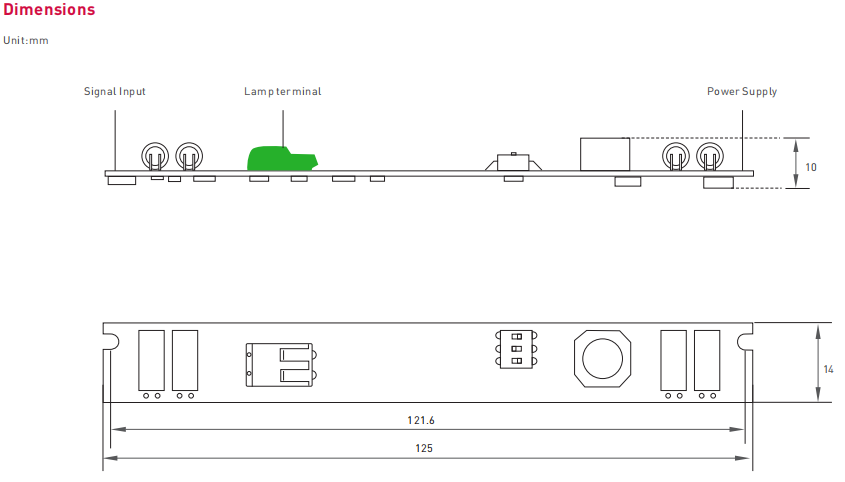

- Compact form factor is designed to fit perfectly within standard STUCCHI housings.

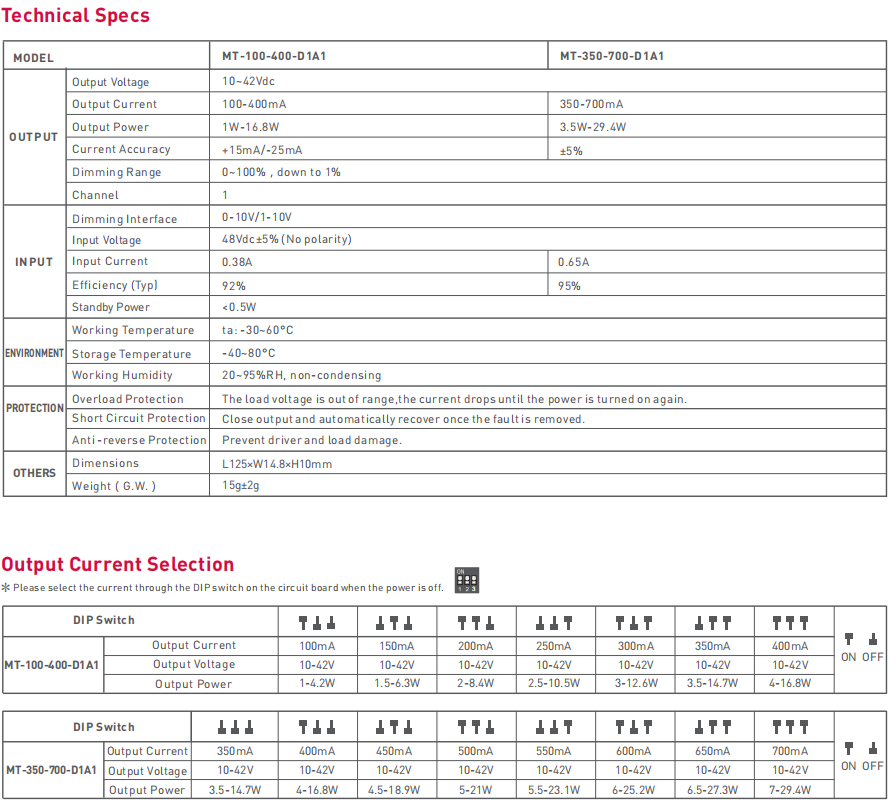

Product Specifications
| Parameter | Details |
|---|---|
| Model | MT-100-400-D1A1 |
| Brand | Ltech |
| Dimming Protocol | 0-10V / 1-10V (Auto-identifying) |
| Output Type | Constant Current (CC) |
| Output Current | Multiple selectable settings (100-400mA range) |
| Input Type | DC |
| Input Polarity | Non-Polarized |
| Specialty | Magnetic & Linear Lamp Systems |
| Housing Compatibility | STUCCHI Standard Housings |
| Performance | Flicker-free, quiet operation |
| Hot-Plug Support | Yes (Input & Output) |
| Protections | Short circuit, overload, no-load, anti-reverse |
Application Scenarios
How to Install & Use This 0-10V Driver
- Ensure all power is disconnected before beginning installation.

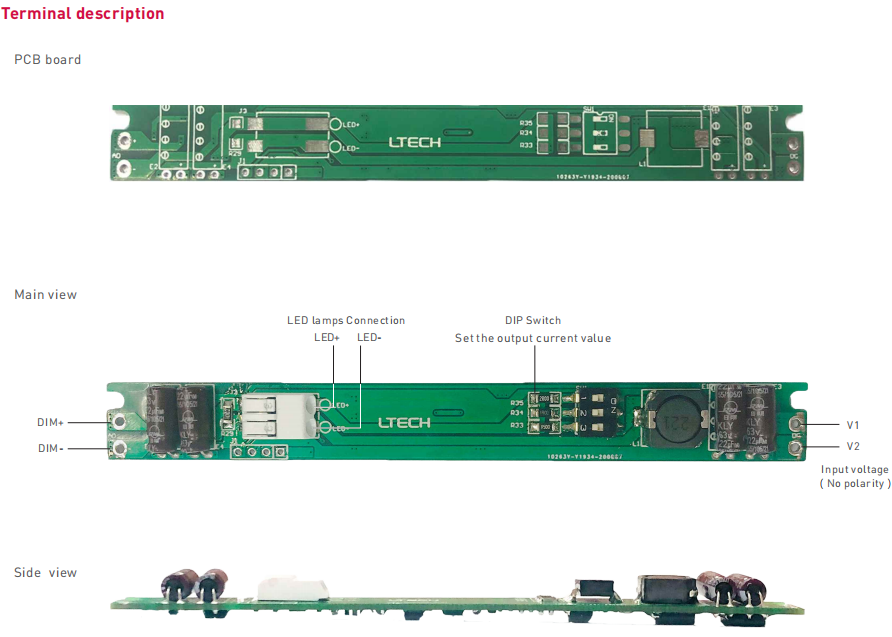

- Select the desired constant current output using the DIP switches on the driver. Refer to the product datasheet (in the Downloads section) for specific settings.

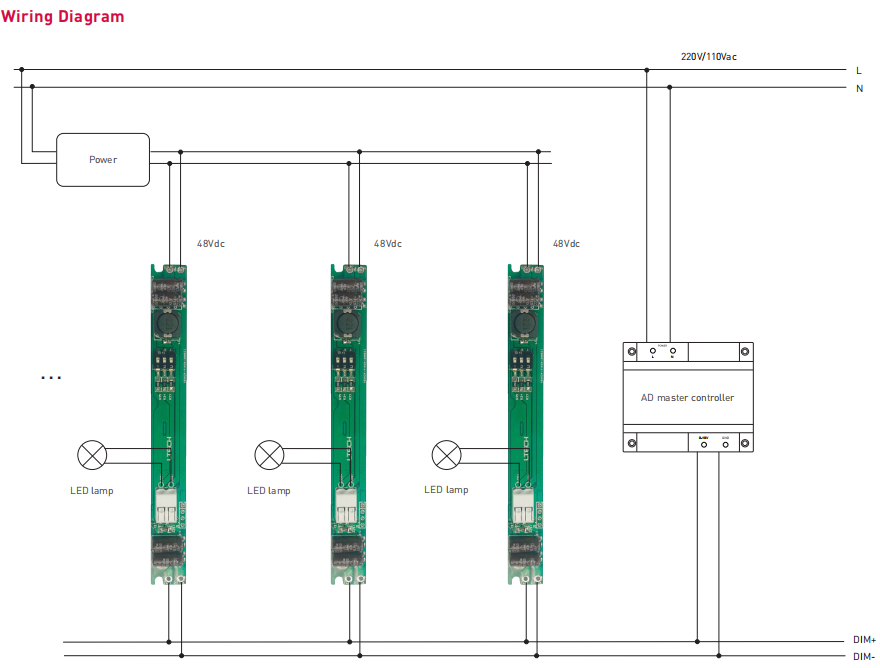

- Connect the low-voltage DC power source to the driver's input terminals. Thanks to the non-polarized design, the positive and negative wires can be connected to either terminal.
- Connect the signal wires from your 0-10V or 1-10V wall dimmer or control system to the DIM+ and DIM- terminals.
- Connect the driver's output wires to your magnetic track system or linear LED lamp, ensuring correct polarity (+ to +, - to -).
- Mount the driver in a suitable location. The magnetic base allows for easy attachment to ferrous metal surfaces.
- Restore power and test the full range of dimming to ensure smooth operation.
- Ensure the connected LED fixture is designed for constant current operation and its required current falls within the 100-400mA range of this driver.
- Do not exceed the maximum load capacity of the driver.
- This is a constant current driver, which operates differently from a constant voltage model. Using it with incompatible LEDs can cause damage.
What's in the Box
- ✓1x MT-100-400-D1A1 0-10V Constant Current LED Driver
⇩ Downloads & Documents
Frequently Asked Questions
Q: What makes this driver special for magnetic and linear lamps?
A:It's designed for quiet magnetic installation without high-frequency buzzing and is shaped to fit within standard STUCCHI housings used in many linear and track systems.
Q: Can I use this with a 1-10V dimmer?
A:Yes, this driver automatically detects both 0-10V and 1-10V dimming signals, making it compatible with a wide range of control systems.
Q: How do I set the output current?
A:The output current is set using physical DIP switches on the driver's housing. Please refer to the datasheet for a guide to the switch positions for each current level.
Q: What does 'no input polarity' mean?
A:It means you can connect the positive and negative DC input wires to either input terminal without risk of damage, which simplifies and speeds up installation.
Q: Is this a constant current or constant voltage driver?
A:This is a constant current (CC) driver. It is crucial to pair it with LED fixtures that are designed to be driven by a constant current source.
Q: Does this driver support hot-plugging?
A:Yes, both the input and output connections support hot-plugging, allowing for more flexible installation and maintenance, though we always recommend disconnecting power as a best practice.
