Product Information

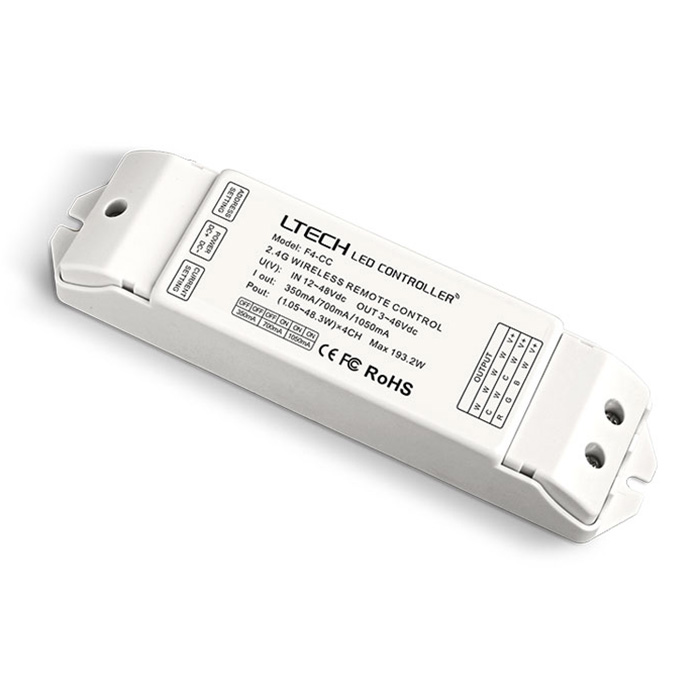

The Ltech F4-CC is a high-performance wireless light receiver designed specifically for constant current LED lighting systems. It stands apart with its exceptionally wide 12-48Vdc input range and selectable 4-channel output, offering 350mA, 700mA, or 1050mA to precisely match the requirements of your LED fixtures. As a core component of the Ltech LT-BUS control system, the F4-CC provides a robust and reliable solution for achieving smooth, flicker-free dimming in professional settings. It eliminates the need for complex control wiring, making it ideal for architectural lighting, high-power spotlights, and multi-zone commercial installations where precise current control and wireless flexibility are paramount.
Key Features
Selectable Constant Current
Easily match your LED fixture's requirements by selecting 350mA, 700mA, or 1050mA per channel via DIP switches.
Wide 12-48Vdc Input Voltage
Offers superior flexibility for a variety of power systems, accommodating higher voltage setups common in professional lighting.
4-Channel PWM Output
Independently control up to four constant current LED fixtures or zones for dynamic and versatile lighting scenes.
High Power Capacity
Delivers up to 48.3W per channel with a total maximum output of 193.2W, capable of driving demanding lighting loads.
LT-BUS Wireless Integration
Pairs seamlessly with Ltech's reliable LT-BUS ecosystem of remotes and wall panels for stable, long-range wireless control.
Technical Highlights
- Delivers stable, flicker-free dimming for high-quality visual comfort and performance.
- Engineered for seamless integration with the Ltech LT-BUS wireless control system.
- Robust construction with a wide operating temperature range (-30℃ to 55℃) for reliability in various environments.
Product Specifications
| Parameter | Details |
|---|---|
| Model | F4-CC |
| Input Voltage | 12~48Vdc |
| Output Voltage | 3~46Vdc |
| Output Type | Constant Current (CC) |
| Selectable Output Current | 350mA / 700mA / 1050mA per channel |
| Output Channels | 4 |
| Output Power | 1.05W - 48.3W per channel |
| Max Total Power | 193.2W |
| Control Protocol | LT-BUS RF Wireless |
| Working Temperature | -30℃ ~ 55℃ |

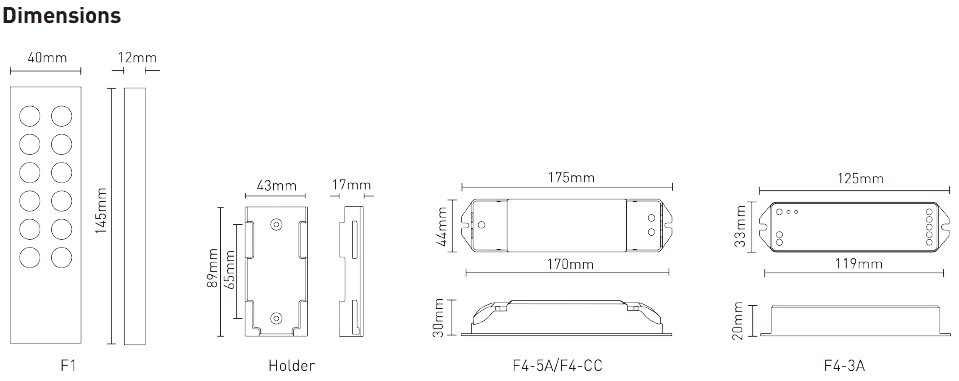

| Dimensions (L×W×H) | 178 × 48 × 33 mm |
| Gross Weight | 165g |
Application Scenarios

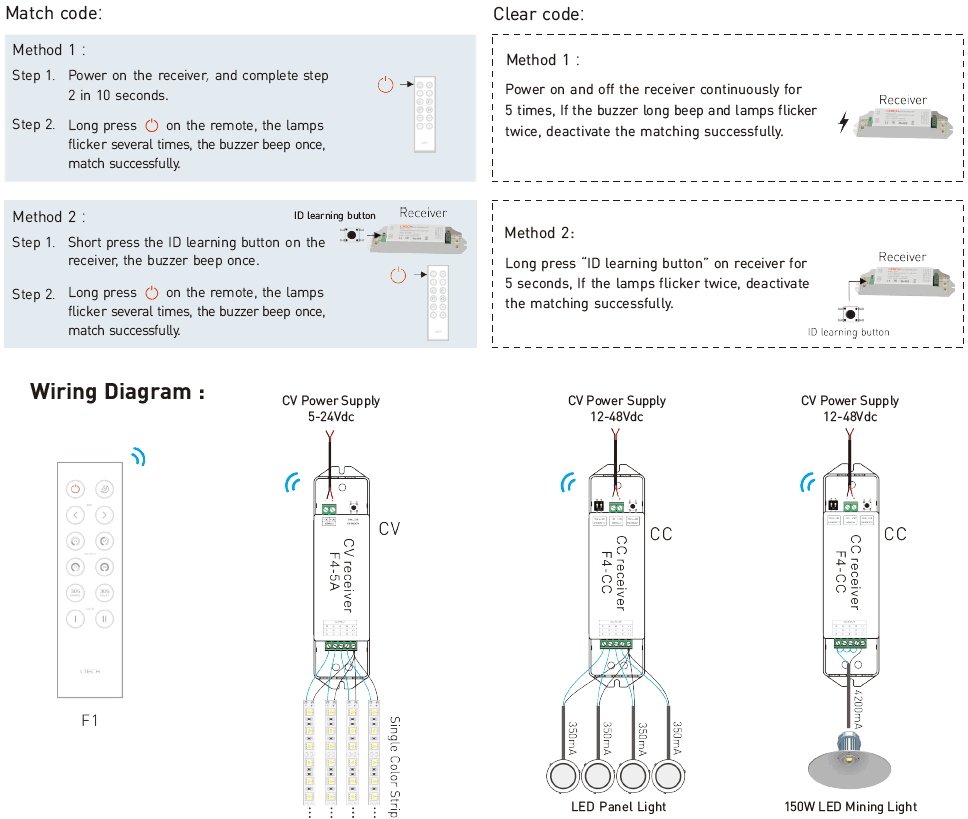

How to Control & Use This Controller
- Select Output Current: Before wiring, use the DIP switches on the receiver to select the correct constant current output (350mA, 700mA, or 1050mA) to match your LED fixtures' specifications.
- Wire Power Input: Connect a compatible 12V to 48V DC power supply to the receiver's 'INPUT' terminals. Ensure correct polarity (+ to +, - to -).
- Wire LED Output: Connect your constant current LED fixtures to the 'OUTPUT' terminals (CH1, CH2, CH3, CH4). Verify the polarity is correct for each channel.
- Pair with Remote: Follow the instructions for your Ltech LT-BUS remote control or wall panel to pair it with the F4-CC receiver. This typically involves pressing a learning key on the receiver while the remote is in pairing mode.
- Test Operation: Once paired, test the dimming and on/off functions for each connected channel to confirm the system is working correctly.
- Always disconnect power before wiring or changing DIP switch settings.
- Ensure your power supply has a voltage within the receiver's 12-48Vdc input range.
- Do not exceed the total maximum power output of 193.2W.
- This receiver is designed for constant current LED fixtures only. Do not connect it to constant voltage LED strips.
What's in the Box
- ✓1 x F4-CC Constant Current Wireless Receiver
- ✓1 x User Manual
⇩ Downloads & Documents
PDFF4-3A
Frequently Asked Questions
Q: What is the main difference between the F4-CC and the F4-5A receiver?
A:The F4-CC is a Constant Current (CC) receiver designed for fixtures like spotlights and downlights. The F4-5A is a Constant Voltage (CV) receiver used for products like standard LED strips.
Q: What kind of remote controls are compatible with the F4-CC?
A:This receiver works with any remote control or wall panel from the Ltech LT-BUS ecosystem. Please verify compatibility before purchasing a remote.
Q: Can I control four different single-color LED lights with this one receiver?
A:Yes, if your remote supports multi-zone control, the four channels can be managed independently to control four separate areas or fixtures.
Q: How do I select the output current?
A:The output current (350mA, 700mA, or 1050mA) is set using the physical DIP switches on the side of the unit. This must be done before you connect power.
Q: Is this a DMX receiver?
A:No, the F4-CC uses Ltech's proprietary LT-BUS wireless protocol. For DMX control, please see our F4-DMX-5A receiver or other DMX decoders.
Q: What kind of power supply do I need for this receiver?
A:You need a constant voltage DC power supply with an output between 12V and 48V. Ensure it can provide enough wattage for the total load of all your connected LED fixtures.
