12CH DMX-PWM Decoder LT-890

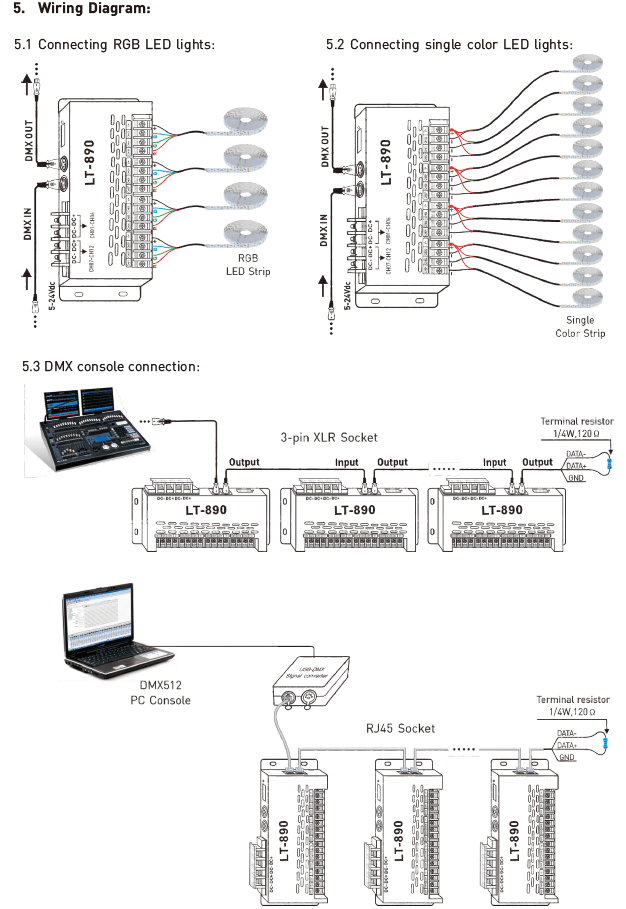

LT-890 DMX CV decoder converts the universal standard DMX512 signal into PWM signal to drive LEDs. works with DMX512 console, 256 grayscale output per channel, 0-100% dimming range with various changing effects. Equipped with DMX standard 3-pin XLR, RJ45 interface, controls single color, two colors, RGB LED lights.
LT-890 12CH DMX-PWM Decoder
Input Signal :DMX512
Input Voltage: DC5V～DC24V
Max Load Current :5A ×12CH Max 60A
Max Output Power 3:00W/720W/1440W(5V/12V/24V)
DMX512 Socket: RJ45, XLR-3
Dimming Range: 0～100%
Operating Temp. :-30℃～65℃
Product Size :L222×W108×H42(mm)
Package Size: L242×W113×H46(mm)
Weight (G.W.) :740g
