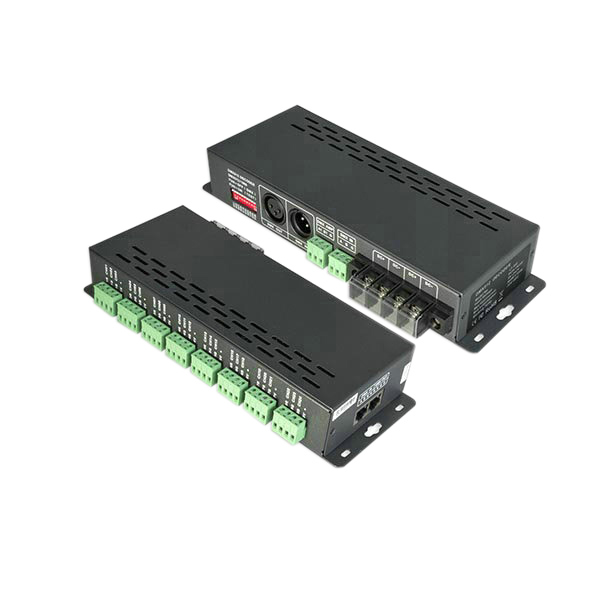

LT-880-350, 16CH DMX Controller, High-end Standard for RGB/RGBW LED Wall Lights, 5 Warranty

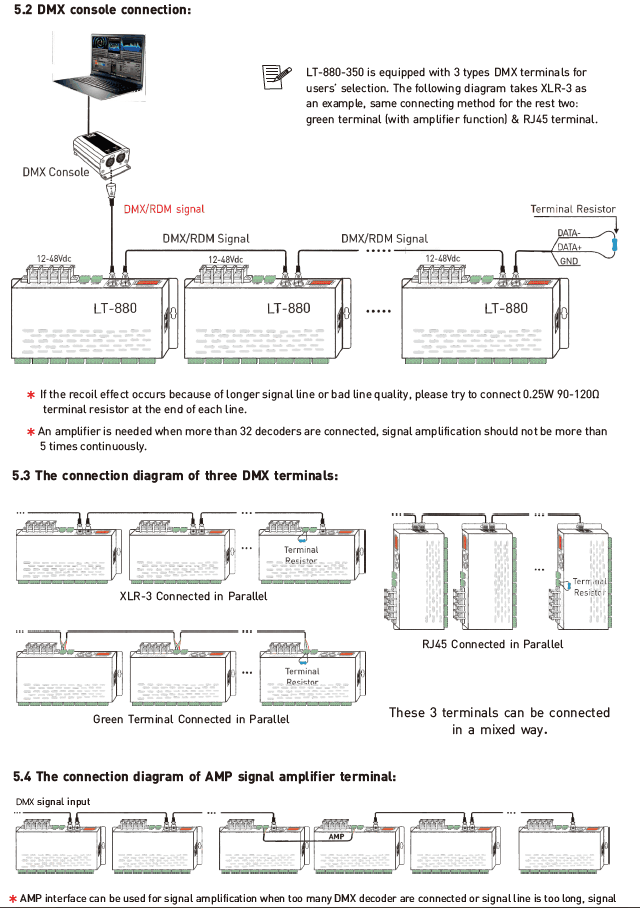

LT-880-350 with the standard RDM remote device management protocol supports DMX512 signal bi-directional communication achieves remote management of reading and writing DMX address (DMX master controller must recognize the RDM protocol). This compact decoder works with DMX512 console. Realize 0-100% brightness and various changing effect. Equipped with DMX standard XLR-3, RJ45 and green terminal interface, easy to operate. And it can control single color, bi-color, RGB LED lights.
LT-880-350 16CH DMX-PWM Decoder
Input signal: DMX512
Input power: DC12V～DC48V
Output voltage: DC3V~DC42V
Max load current: 350mA ×16CH
Output power: 1.05W~14.7W×16CH Max 235.2W
DMX512 socket: XLR-3, Green terminal (with signal amplification function)
Dimming range: 0~100%
Working temperature: -30℃～65℃
Package Size: L268×W127×H44mm
Weight (G.W) : 950g
