Product Information
This LED strip is prone to lighting failures, and we have not yet resolved this issue. We do recommend you purchasing this 12V 768LEDs/m RGB+Warm White 3000K cob led strip.
We have other 8mm narrow RGBW strip lights, please check these models: ►24V 3535 120LEDs/m, ►24V 5050 96LEDs/m, ►24V s-shape 5050 60LEDs/m.
Special SMD 4040 4-in-1 RGBW led tape with 120LEDs/m high density design and 8mm narrow strip width. This colored RGBW light strip breaks away from the usual aspects of RGBW led strips such as the use of 5050 RGBW LEDs and 12mm or 10mm wide PCB boards. Its 4040 RGBW LEDs, 8mm narrow PCB, and high density of 120LEDs/m allow RGBW lighting to be used in more applications such as under cabinet channel lighting and other locations that require smaller fixtures.
This dense RGBW strip lights combines small size and high lumens to bring RGBW led lighting to more delicate details. DC12V input and 1 inch (3-LED/25mm) cut unit, DC24V input and 2 inches (6-LED/50mm) cut unit, adaptable to all kinds of residential and commercial projects. RGB white led strip lighting has a clear advantage in color representation. The introduction of a separate white light channel enables the white light closer to natural light. Provides more comprehensive color control to meet diverse needs from decorative lighting to task lighting. Comes 5-pin JST connectors at both ends for easy connection.
Other 12V 4-in-1 RGBW led strips you can choose:
Product Specification
| LED Strip Type: | Narrow Dense 4040 RGBW LED Strip Light |
| LED Chip: | SMD4040 4-in-1 |

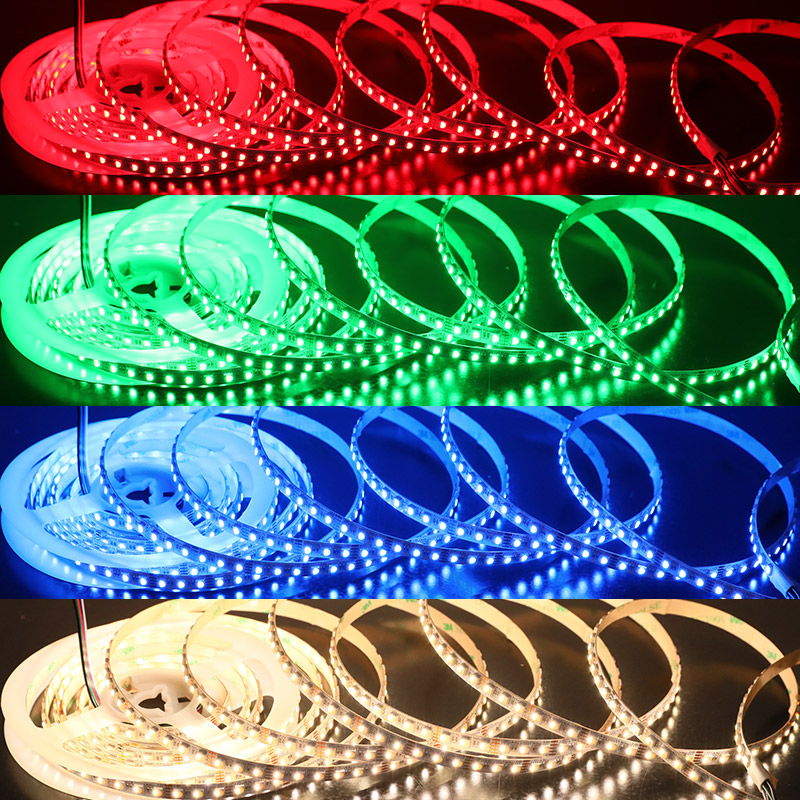

| Light Color: | RGB+W3000K, RGB+W4000K, RGB+W6000K |
| Input Voltage: | DC12V, DC24V |
| LED Quantity: | 120 LEDs per meter, 36/ft |
| Dimension: | 16.4ft/roll |

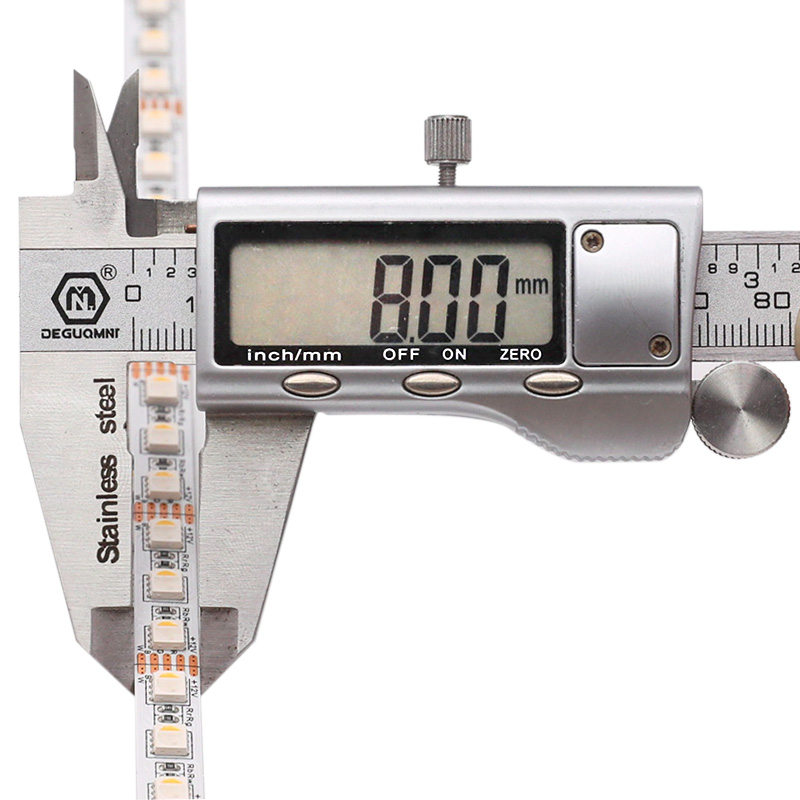

| Strip Width: | 8mm (0.3") |

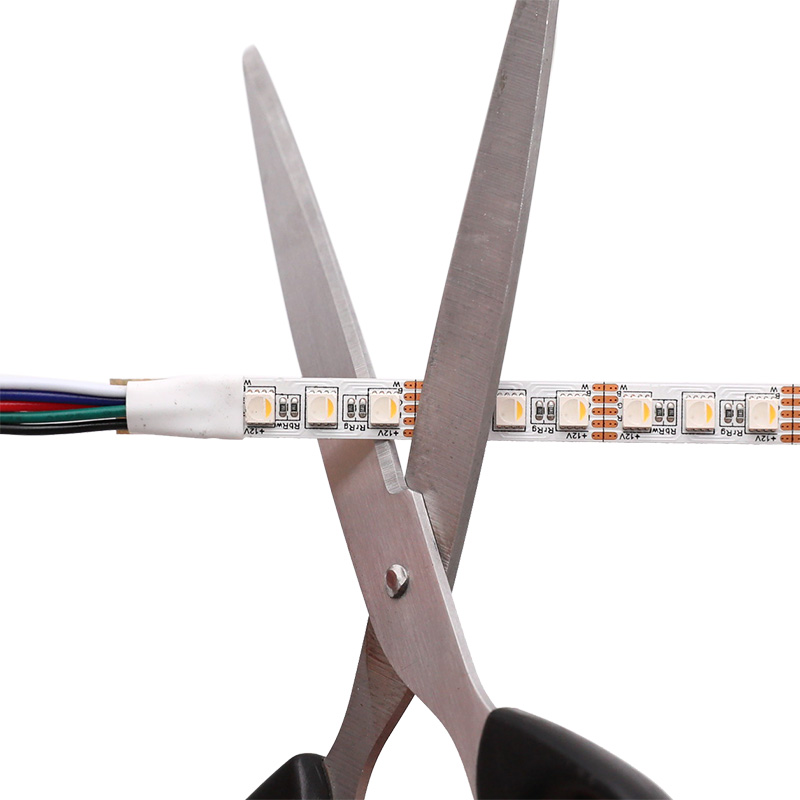

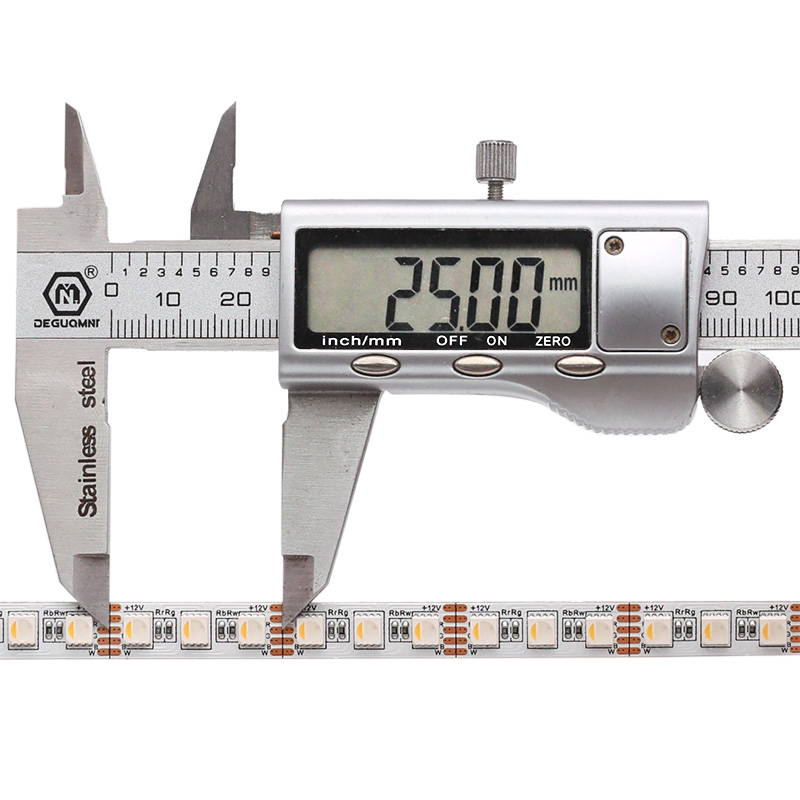

| Cut Unit: |
DC12V - 3 LEDs, 25mm/1" DC24V - 6 LEDs, 50mm/2" |
| Working Power: | 20W/m Max, 100W/Roll |
| Beam Pattern: | 120 degree |
| Waterproof Rating: | Non-waterproof IP20 |
| Lifespan: | 50,000+ hours |
How To Wire RGBW LED Tape Lights?
This 8mm 120LEDs/m 4040 RGBW led strip requires an RGBW controller to control its color and brightness, consumes 20W per meter, pay attention to the power selection of the power supply in the actual application.
If you choose the KIT option, we will send you corresponding smart controller WIFI-BT-WB5 and LRS-150-12 Meanwell power supply.
