16.4ft/roll 20*20mm 120° Without Bottom Top Emitting Waterproof IP67 Silicone Flexible LED Neon Tube For 12mm LED Light Strips
Before choosing the right neon light, you need to know the size of your space range, if you need a regular length LED neon light, such as 5/10/15m, please order directly. When you purchase multiple rolls, please note we send a whole roll without cut by default not several rolls; if you need the irregular length, such as 7.5m/24.6Ft, you need to purchase 5m+2m+1m LED neon tube, and we will help you cut the led neon tube and send a whole 7.5m/24.6Ft LED noen tube and 3 group end caps to you, if you need a custom length or need to thread the LED strip into the LED neon, we will make it freely for you, you only need to note your needs in the second step of the checkout..

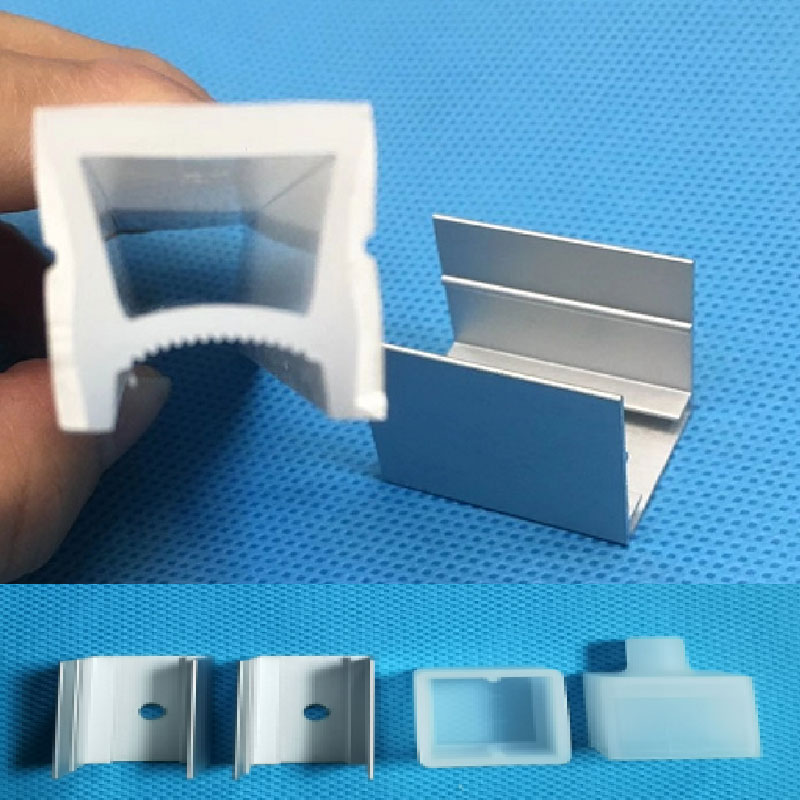

If you also need the extra LED mounting brackets(this link include 10 pcs), please purchase them by yourself, we recommend that two pcs LED mounting clips are needed per meter.
When you purchase the LED strip light to use with LED neno tube, note the applicable size of the LED neon tube should be consistent with the LED strip, like this product, LED neon tube innner width is 13.5mm/0.47in,we need to reserved at least 0.5mm/0.02in at per side, so it is only suitable for within 12mm/0.47in LED strip light, please check the size of the installation space before installation to ensure the LED neon can be installed smoothly.

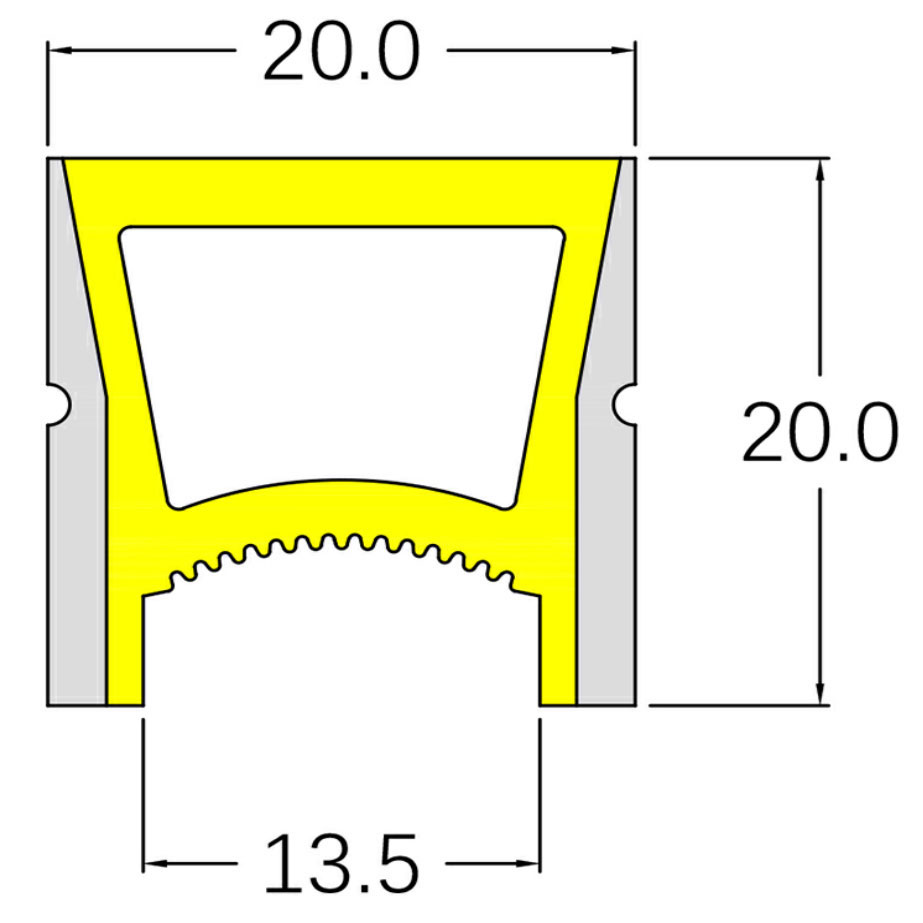

Specification
Length: 5m/roll
External Width: 20mm/0.79in
Inner Width: 13.5mm/0.53in
External Height: 20mm/0.79in
PCB Width: 12mm/0.47in
Beam Angle: 120°
Lighting Direction: Top Lighting(without bottom)
Waterproof Rating: IP67
Cutting Mark: Yes
Working Temperature: -50°C to 200°C
Neon Flex LED Rope Lights Spec sheet 1
Neon Flex LED Rope Lights Spec sheet 2
Product List
If you purchase 1m led neon tube, the following is the package list: (by default)
1* 1m led neon tube
2* end cap with hole
If you purchase 2m led neon tube, the following is the package list: (by default)
1* 2m led neon tube
2* end cap with hole
If you purchase 5m led neon tube, the following is the package list: (by default)
1* 5m led neon tube
2* end cap with hole
(The product does not include led light strip)
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
