Product Information

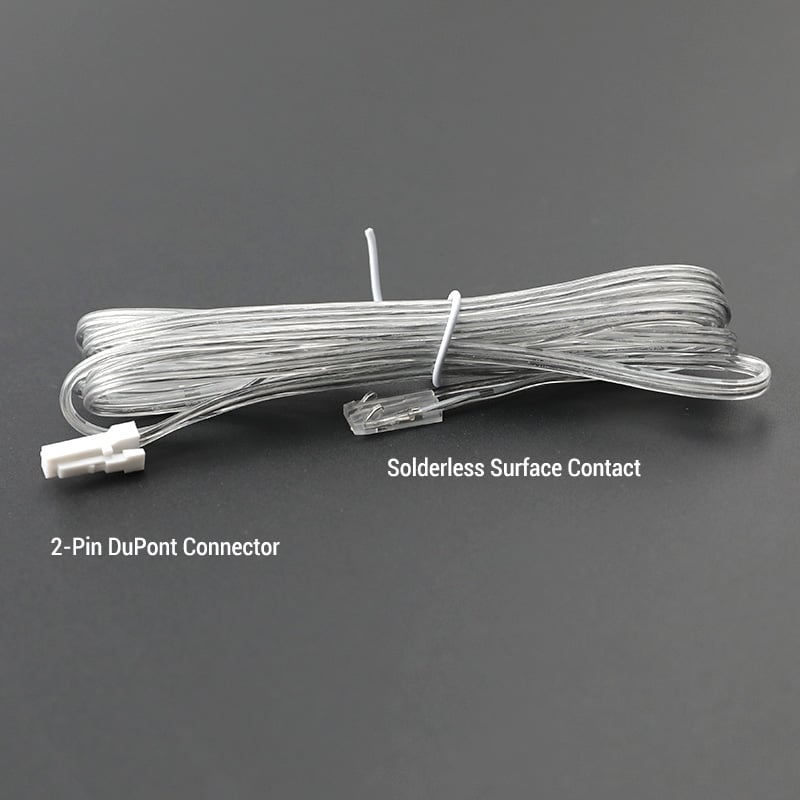

The power pigtail cord connects cut sections of single-color dotless neon LED strip directly to multi-port distribution blocks without soldering. Engineered with a specialized 2-pin pressure-contact head at one end and a standard 2-pin Dupont male connector at the other, this 1.5m (59-inch) transparent 22AWG cable simplifies millwork and cabinet lighting runs.
By eliminating manual wire soldering onto tiny neon pads, installers can cut continuous neon LED strip into precise lengths for display cases, shelving, or toe kicks, then snap each segment into this power pigtail cord. Each wire routes into a central junction block before connecting to your primary DC 24V power supply, maintaining clean wiring paths inside tight joinery.
Core Technical Advantages
Solderless Neon Contact Interface

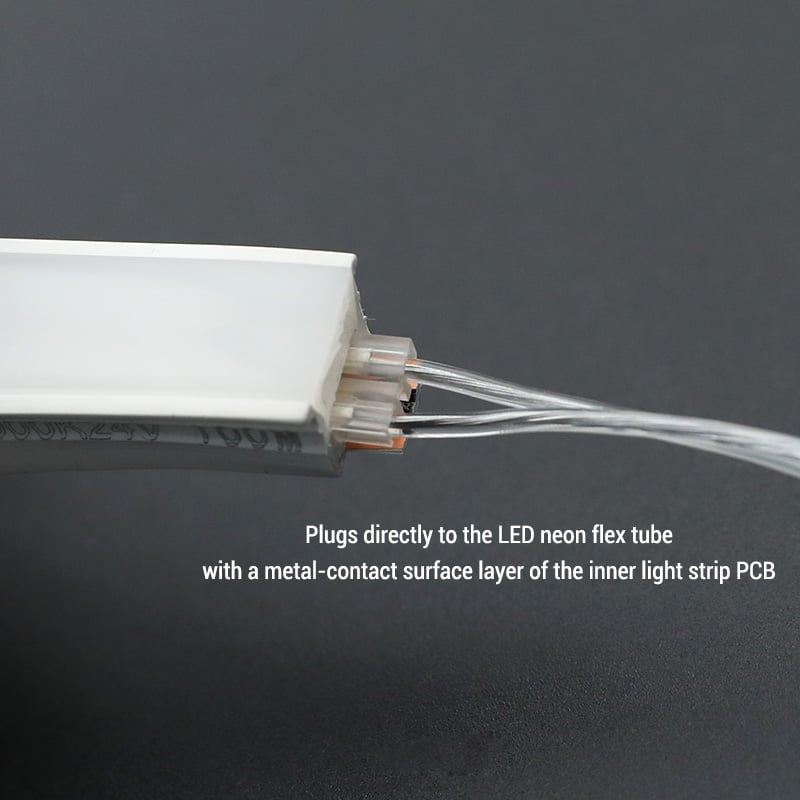

Pressure-contact terminal locks securely onto the contact pads of cut-to-length flexible neon LED strip without heat or flux.
Standard 2-Pin Dupont Male Plug
Terminates in a compact 2-pin Dupont connector that plugs straight into multi-port distribution splitters.
Discrete 22AWG Transparent Wire
Parallel 2-conductor copper wire features a clear jacket that blends against light cabinetry, millwork, and furniture surfaces.
1.5-Meter Extension Reach
Provides 150cm (59 inches) of factory-assembled wire to run cleanly through cabinet partitions to central driver boxes.
System Architecture & Wiring Efficiency
- Eliminates on-site iron soldering on sensitive silicone neon jackets, cutting prep time down to seconds per segment.
- Built specifically for pairing cut-anywhere single-color neon LED strips with localized multi-channel distribution boxes.
- Compatible with modular cabinet lighting accessories and junction hubs commonly specified in residential casework.
Product Specifications
| Parameter | Details |
|---|---|
| Product Model (SKU) | NEONACC-2PDP-150CM-SSC |
| Product Sub-Type | Solderless Neon Power Pigtail Cord |
| Input Terminal | 2-Pin Pressure Contact Pad Connector |
| Output Terminal | 2-Pin Dupont Male Connector (2.54mm Pitch) |
| Conductor Count | 2-Core Parallel |
| Wire Gauge | 22 AWG Stranded Copper |
| Overall Cable Length | 150 cm (1.5 m / 59 in) |
| Cable Jacket Style | Transparent Clear PVC |
| Rated Operating Voltage | DC 5V, DC 12V, DC 24V |
| Compatible Strip Type | Single-Color Cut-Anywhere Neon LED Strip |
| Connection Type | Tool-Free Press-Fit / Plug-and-Play |
| IP Rating at Terminal | IP20 (Indoor dry locations) |
Recommended Installation Scenarios
Installation and Connection Steps
- Cut your single-color neon LED strip along the designated cutting line to expose the conductive copper contact pads.
- Align the positive (+) and negative (-) pads of the neon LED strip with the contact pins inside the pigtail head.
- Firmly seat the neon LED strip end into the contact housing until the internal pins firmly engage the copper pads.
- Route the 1.5m transparent 22AWG wire through your millwork or cabinet wire chases toward your junction area.
- Insert the 2-pin Dupont male connector directly into the corresponding port of your multi-way Dupont distributor hub (sold separately).
- Verify polarity before energizing your main DC power supply.
⚠ Precautions
- Ensure the neon LED strip contact pads are completely clean and free of silicone debris before closing the connector clip.
- Verify that your distributor box matches the 2-pin Dupont male pin configuration before connecting.
What is in the Box
- ✓1 x 1.5m 22AWG 2-Pin Neon Contact to Dupont Male Power Pigtail Cord
