24 CH Constant Voltage DMX512 Decoder D24 For LED light strip waterproof

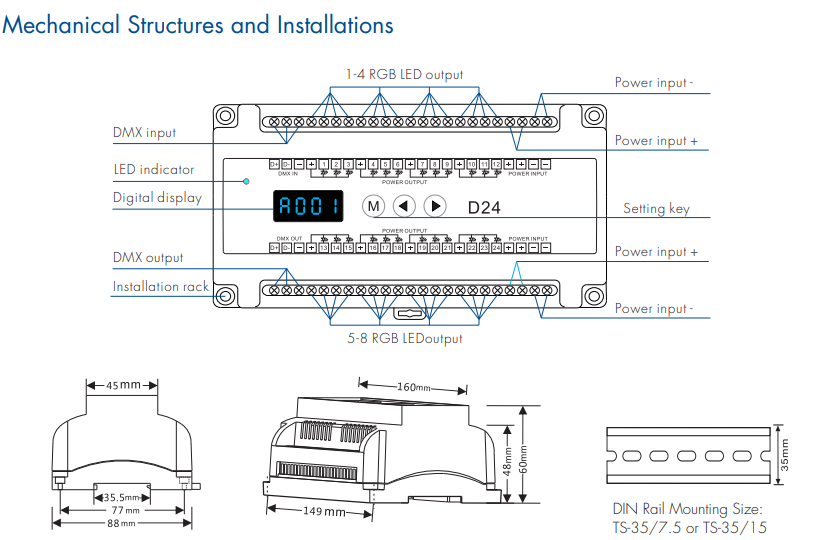

Din rail mounted DMX512 constant voltage decoder, 24 channel output, 3A per channel.
With standard DMX512 compliant interface, DMX address can be set easily and shown on the digital numeric display.
It also can work as stand-alone 24ch RGB controller, have 4 kinds dynamic mode.

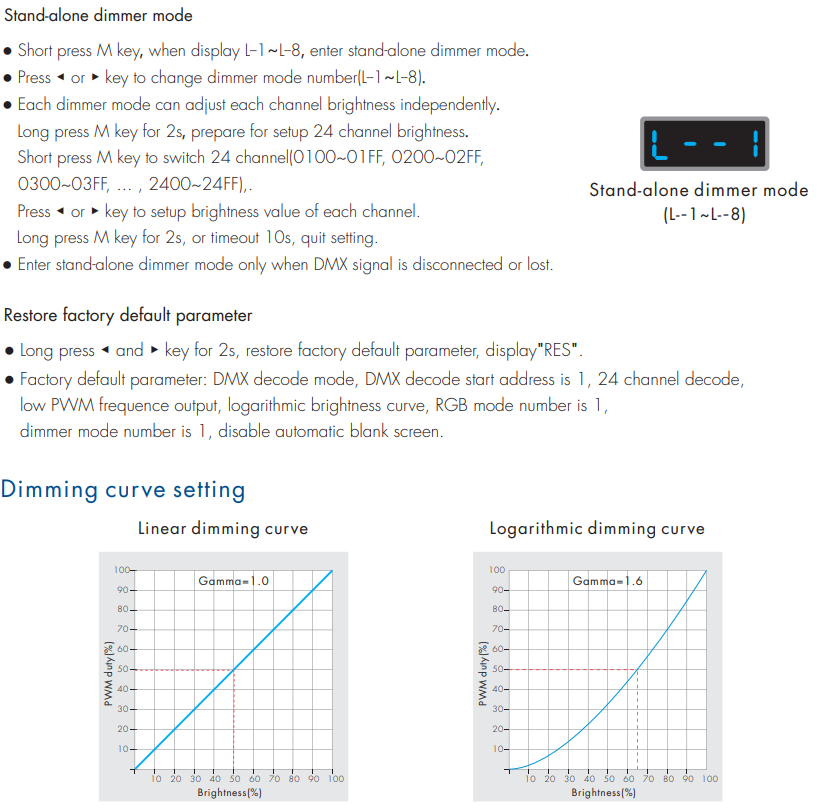

It also can work as stand-alone 24ch dimming controller, each channel adjust brightness independently, and save up to 8 groups brightness.
Work with power repeater to expand output unlimitedly.
Standards and Certifications
Input voltage: 5-24VDC
Input signal: DMX512
Output type: PWM constant voltage
Output current: 24CH,3A/CH
Output power: 360-1728W
Decode number: 1/3/6/24 DMX Channel
Grey levels: 4096/CH
Dimming range: 0-100%
Working temperature: -30℃~55℃
