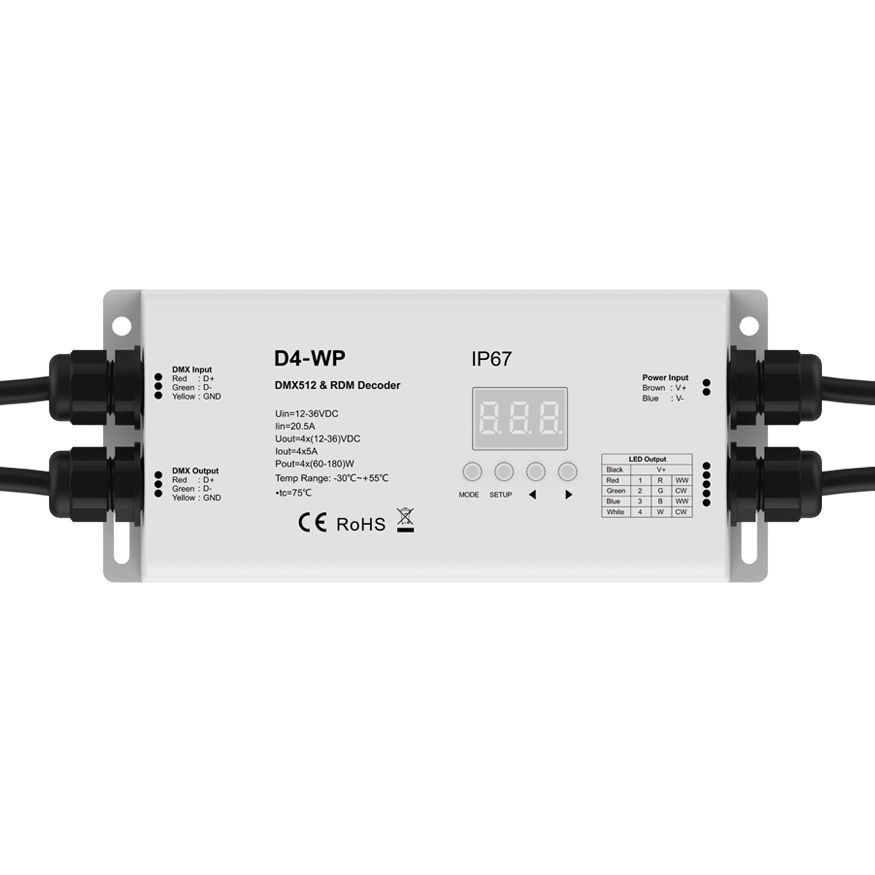

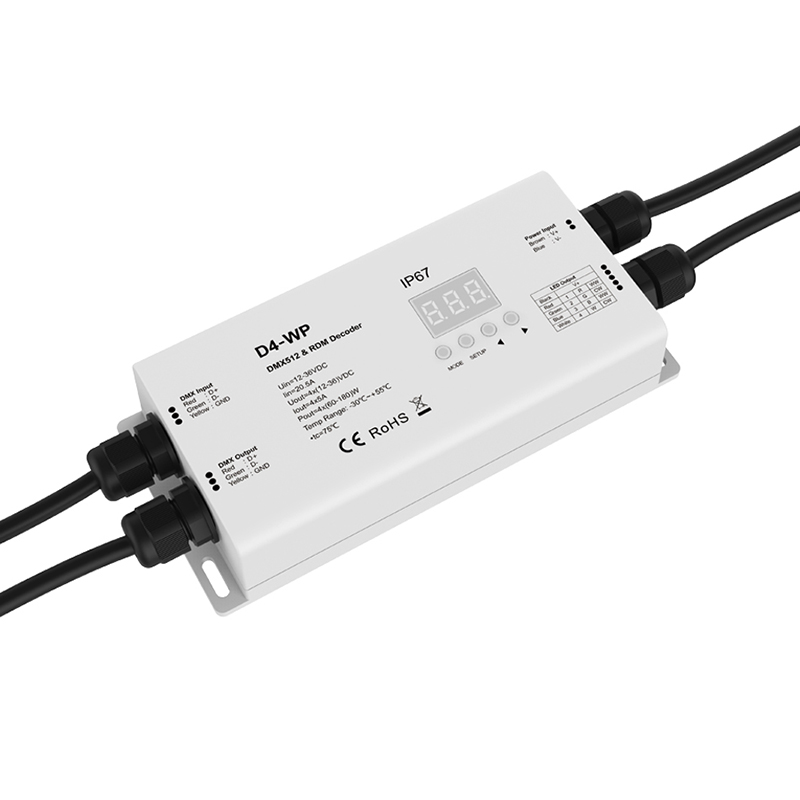

4 Channel Constant Voltage Waterproof DMX512 & RDM Decoder D4-WP

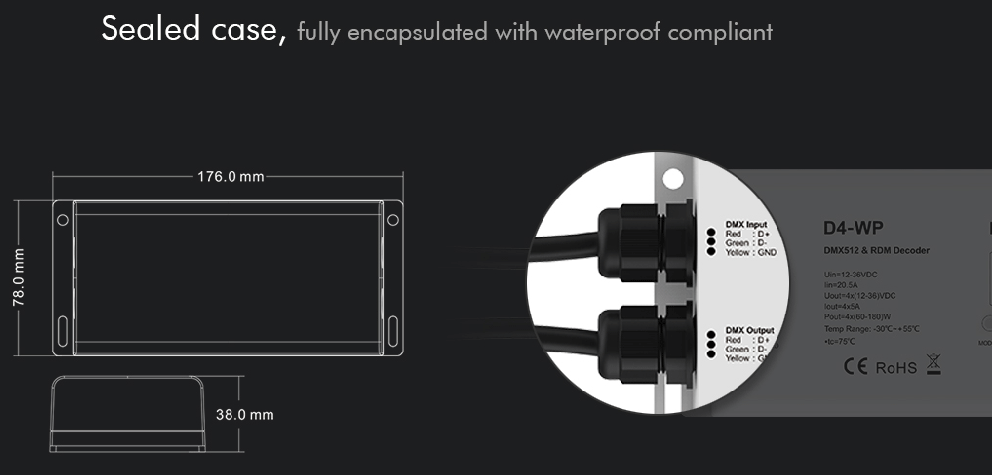

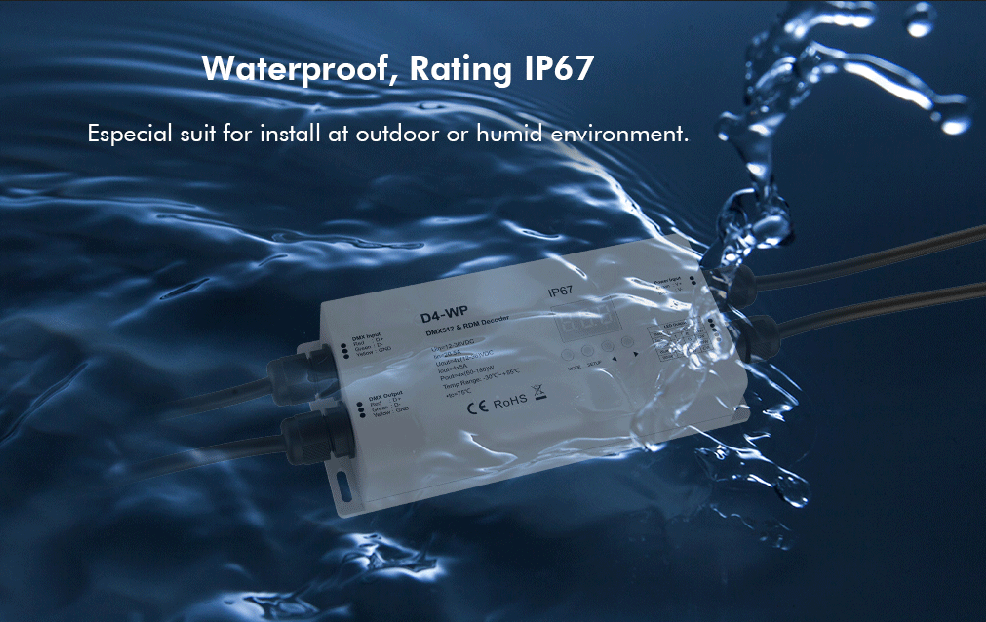

Waterproof DMX512 decoder with an IP67 rating, suitable for the outdoor and damp environment.

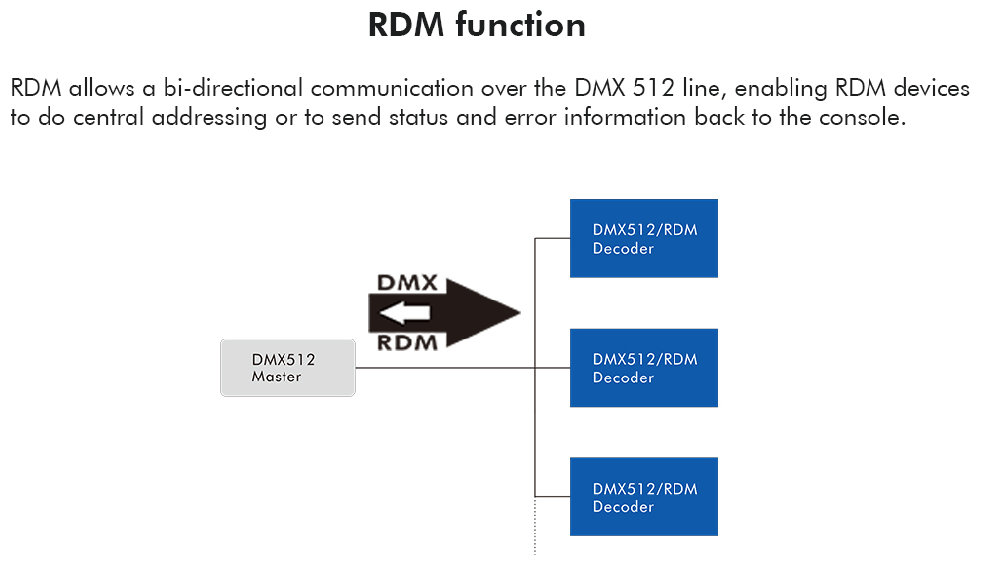

Comply with the DMX512/RDM standard protocols.
Digital numeric display set DMX to decode start address by buttons.

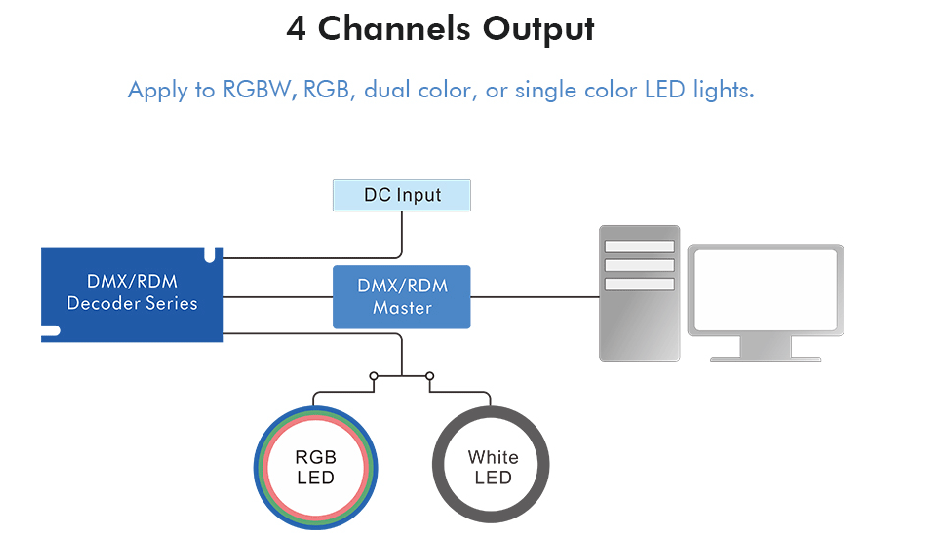

1/2/4 DMX channel output selectable.

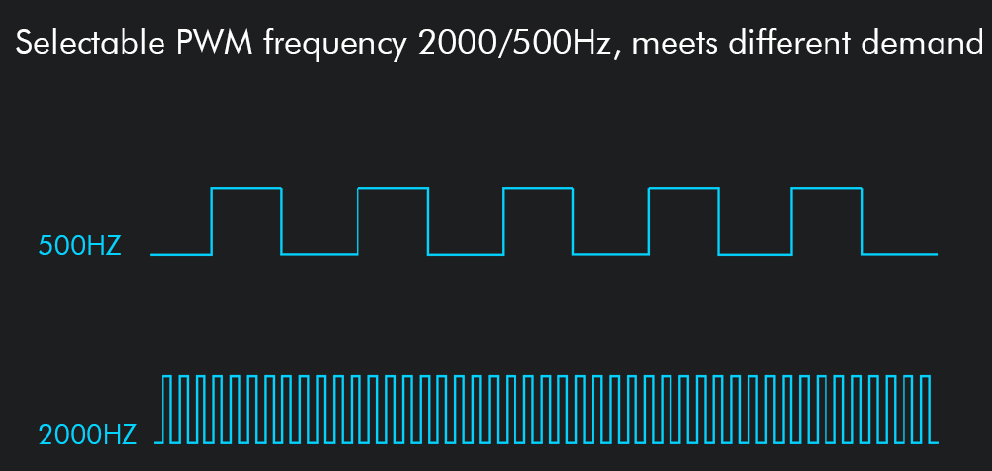

PWM frequency 2000/500Hz is selectable.

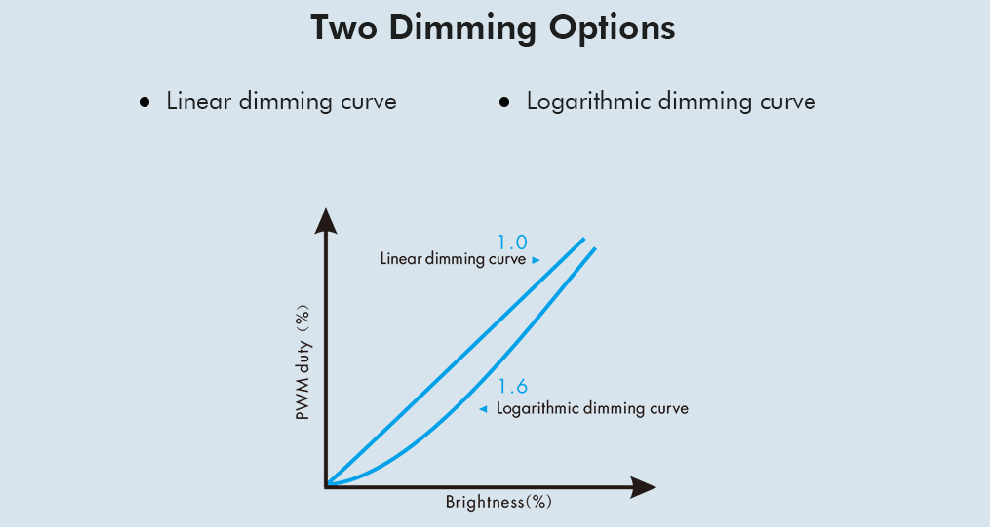

Logarithmic or linear dimming curve selectable.
Stand-alone RGB/RGBW mode and 4 channel dimmer mode selectable,
which be controlled by buttons with built-in programs, instead of DMX signal.

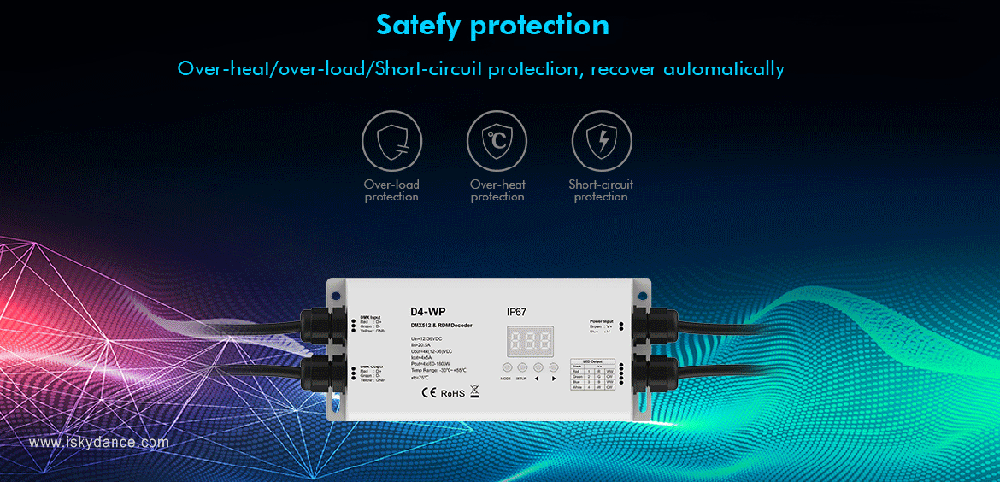

Over-heat / Over-load / Short circuit protection, recover automatically

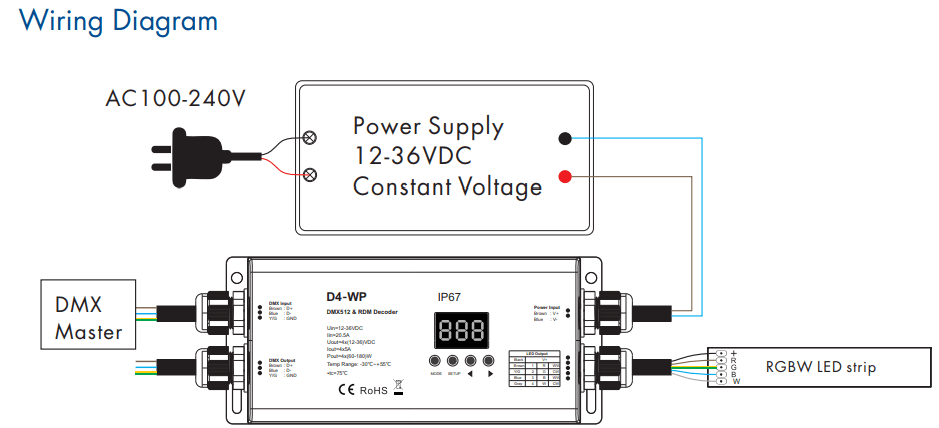

Input and Output
Input voltage: 12-36VDC
Input current: 20.5A
Output voltage: 4 x (12-36)VDC
Output current: 4CH,5A/CH
Output power: 4 x (60-180)W
Output type: Constant voltage
Safety and EMC
EMC standard (EMC): EN55032:2015,
Safety standard(LVD): EN 61347-1:2015
