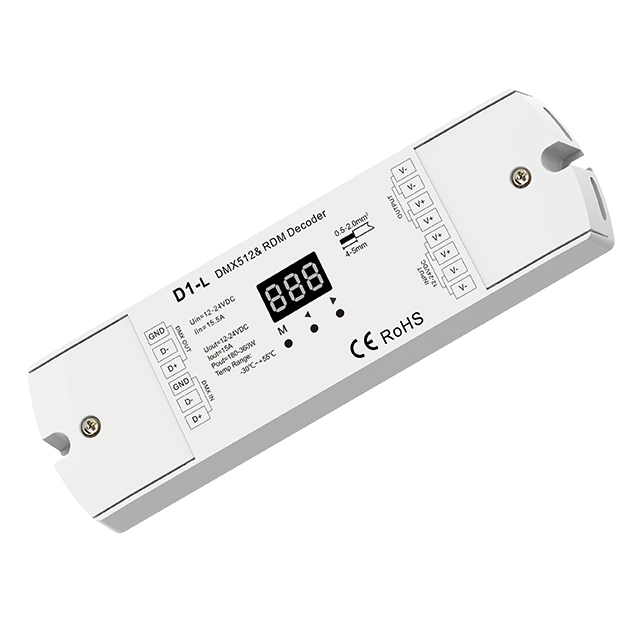

1CH 12A Constant Voltage DMX512 & RDM Decoder D1-L For LED light strip waterproof

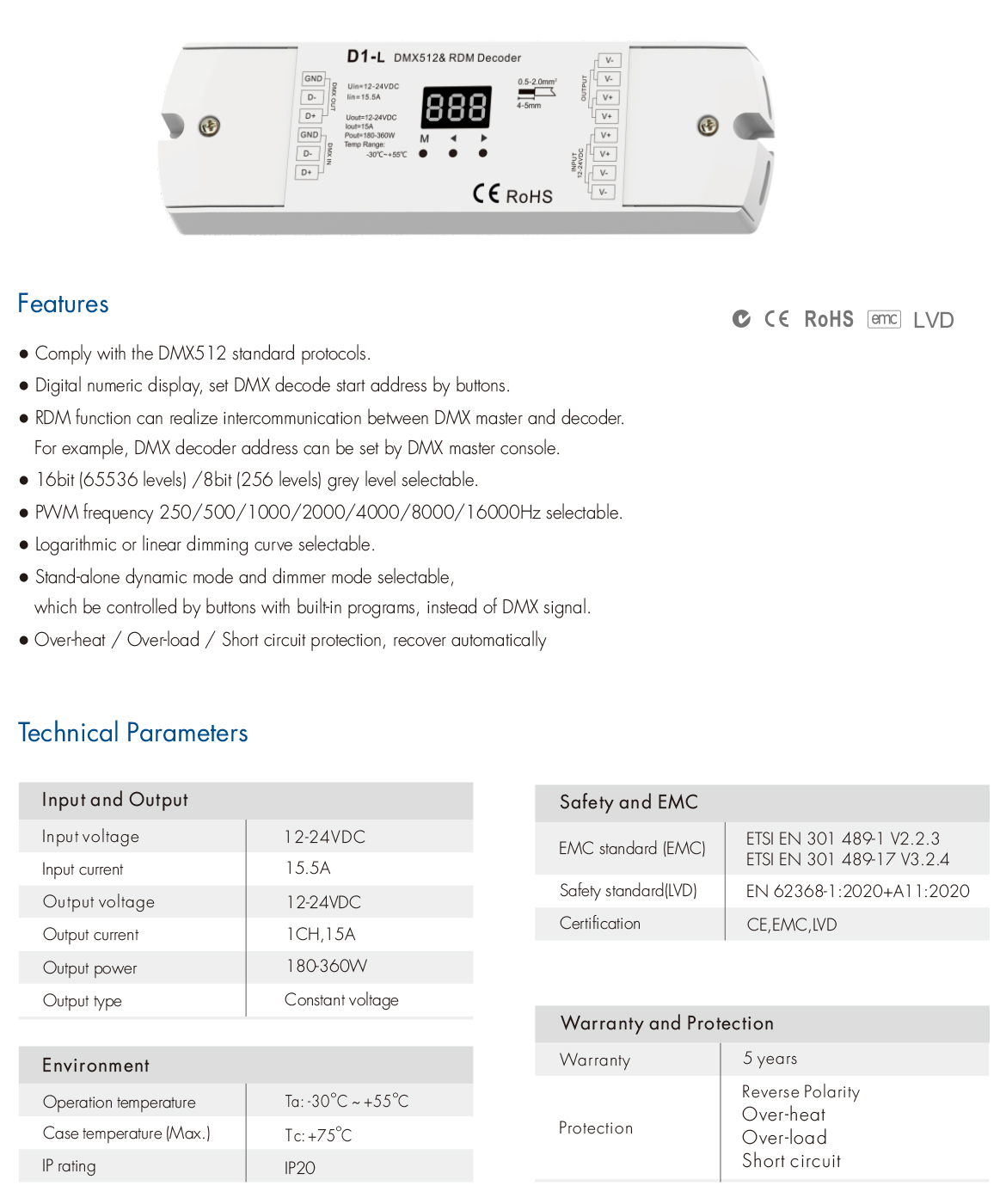

DMX512 decoder with 1 channel constant voltage output.
DMX decode mode / Stand-alone dynamic mode / Stand-alone dimmer mode.
Standard DMX512 compliant interface, DMX address display, set DMX address freely.
Comply with the latest DMX512, DMX512(1990), DMX512-A, RDM V1.0 (E1.20 - 2006 ESTA Standard) standard protocols.
RDM bi-directional communication function, can realize intercommunication between DMX master and decoder. for example, you can set DMX decoder address by DMX master console.
Compatial with our DMX master and any high quality DMX master from other supplier.
Under stand-alone dynamic mode, built in 3 mode, include jump, flash or gradual change style, adjustable speed.
Under stand-alone dimmer mode, can adjust brightness independently, and save up to 8 brightness.
High or low PWM frequency optional.
Log or linear dimming curve optional.

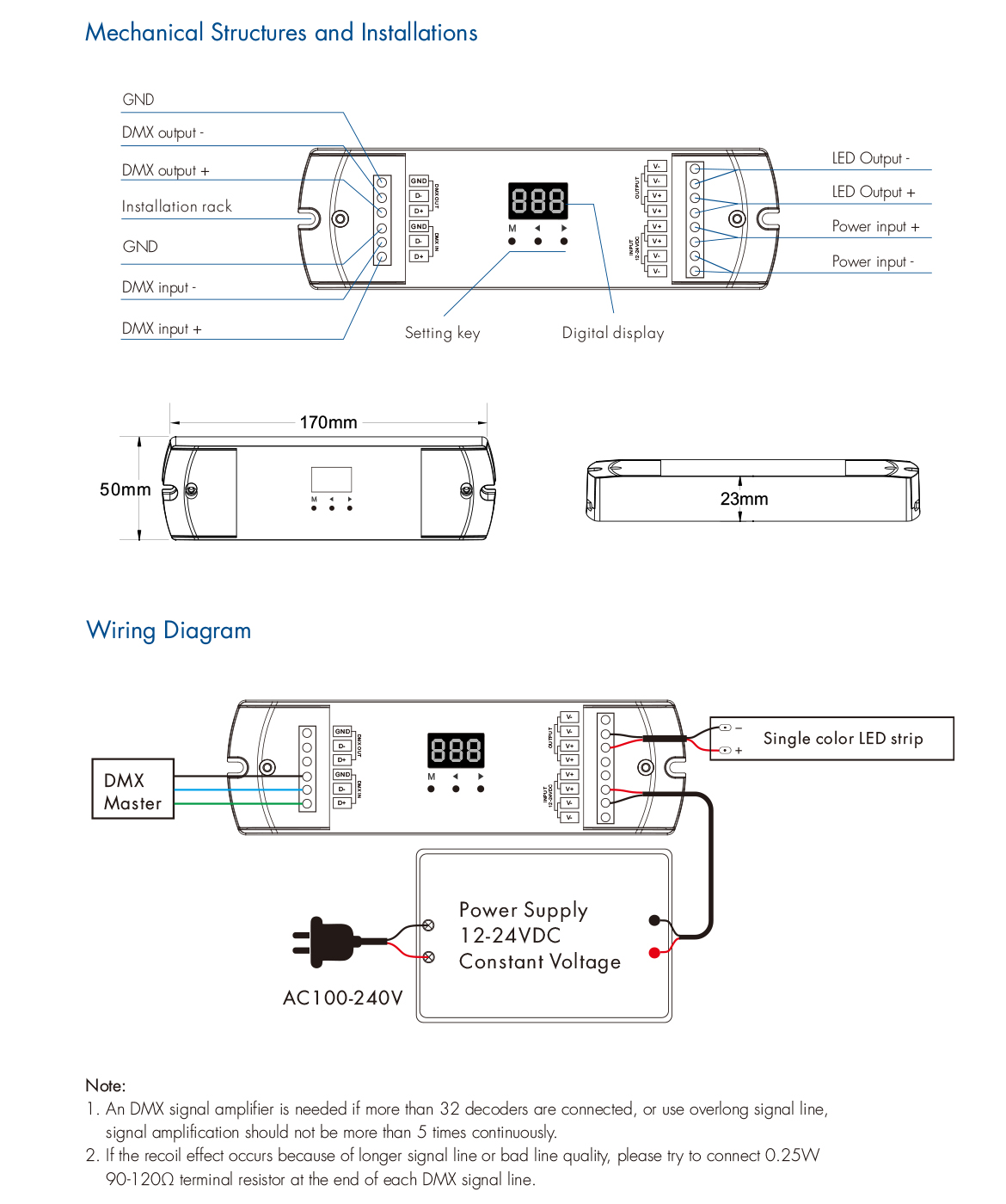

Work with power repeater to expand output unlimitedly.
Standards and Certifications
