2.4G RGB Remote Control R13 Apply to single color, dual color or RGB LED controller, dimming driver or smart lamp

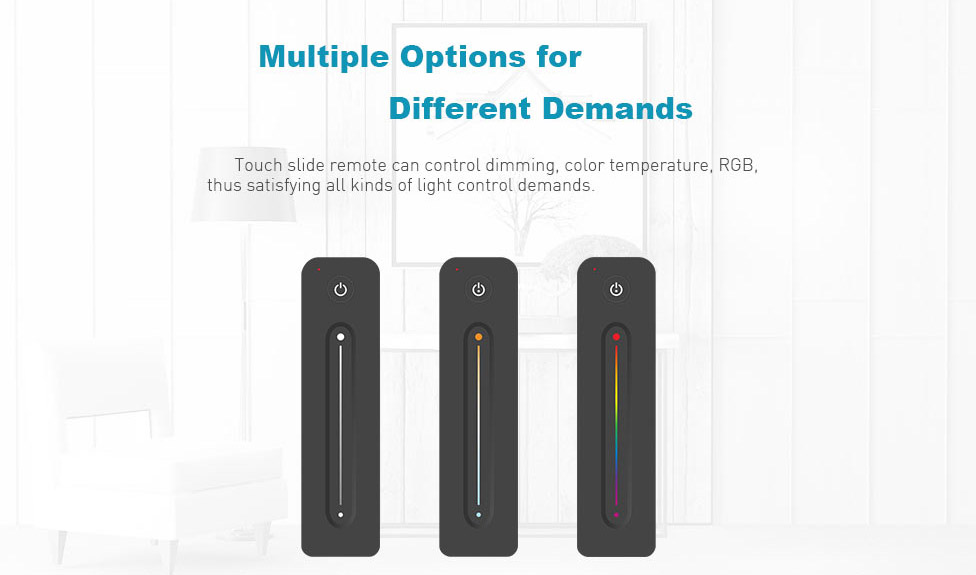

● Apply to single color, dual color or RGB LED controller, dimming driver or smart lamp.

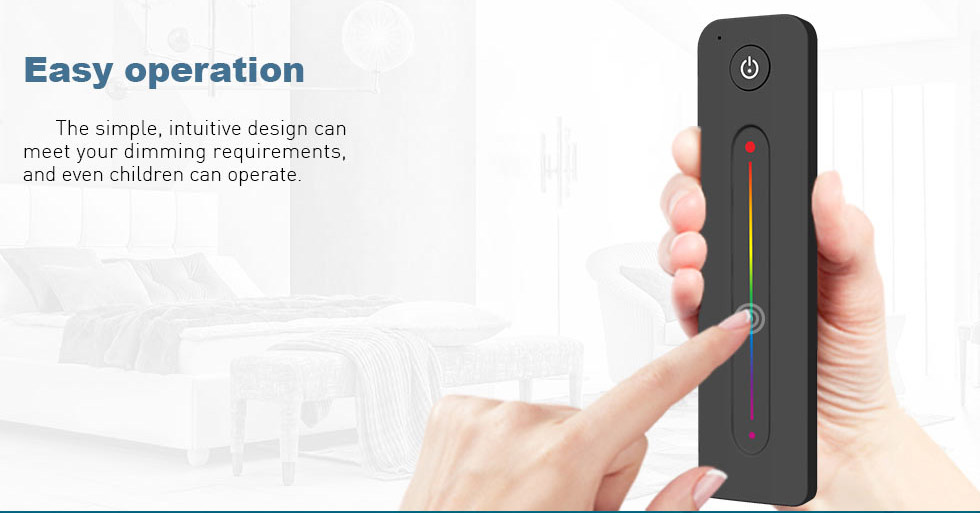

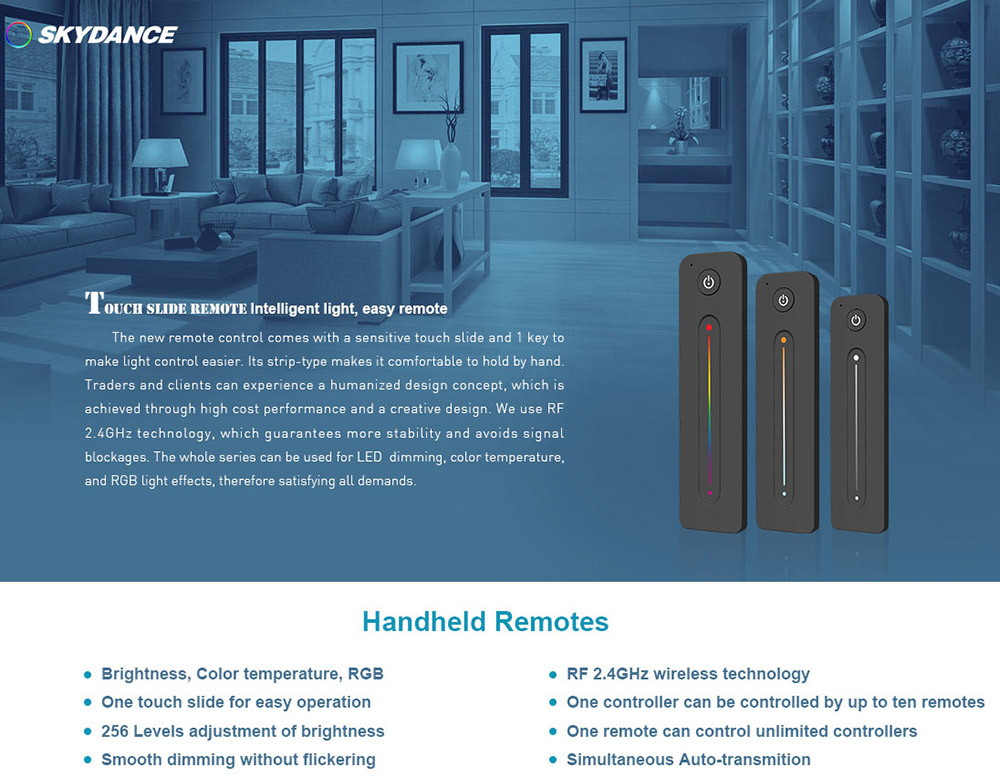

● Ultra sensitive color adjustment touch slide.
● Adopt 2.4GHz wireless technology, remote distance up to 30m.

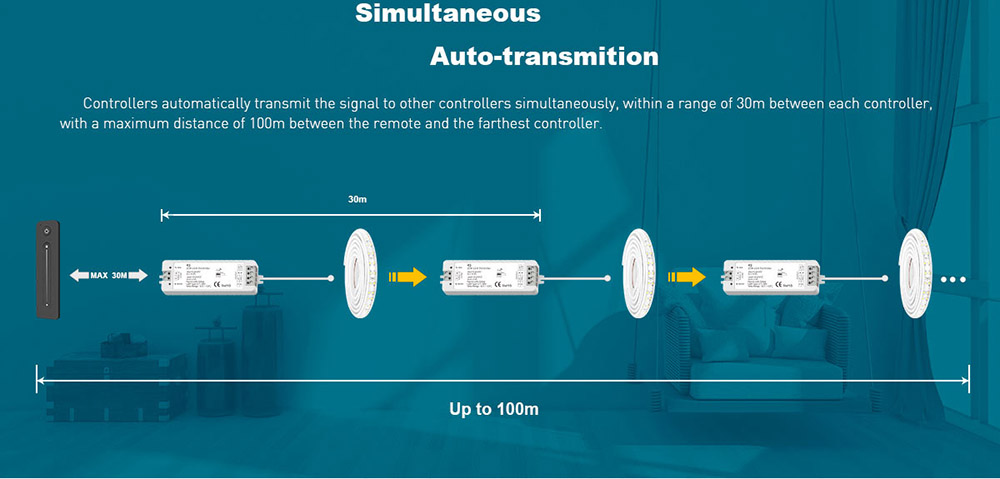

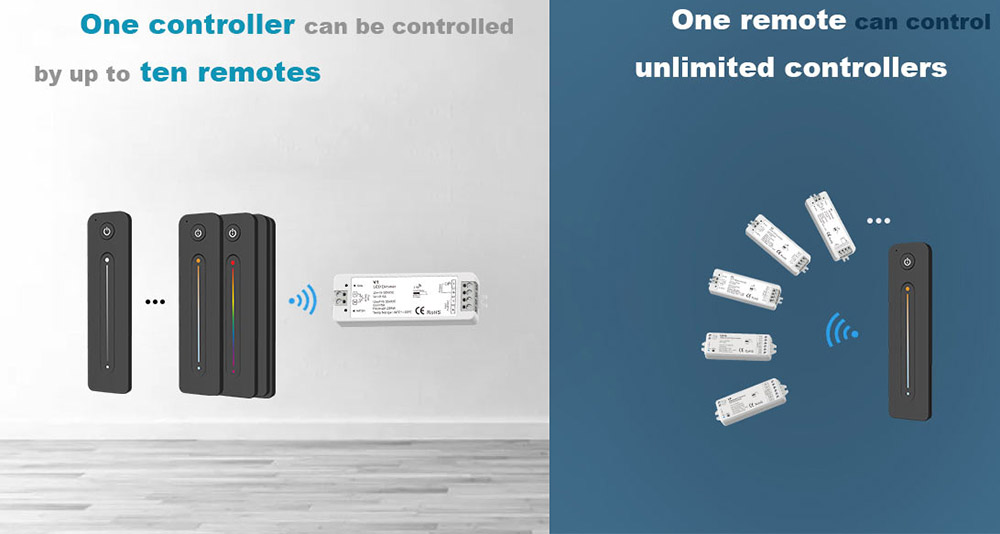

● Each remote can match one or more receiver.

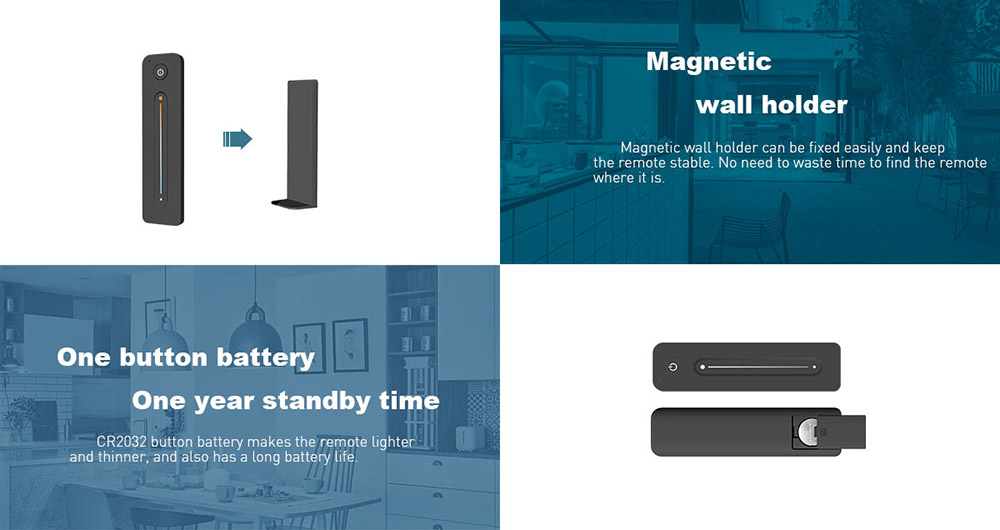

● Battery powered (CR2032).
● Operate with LED indicator light

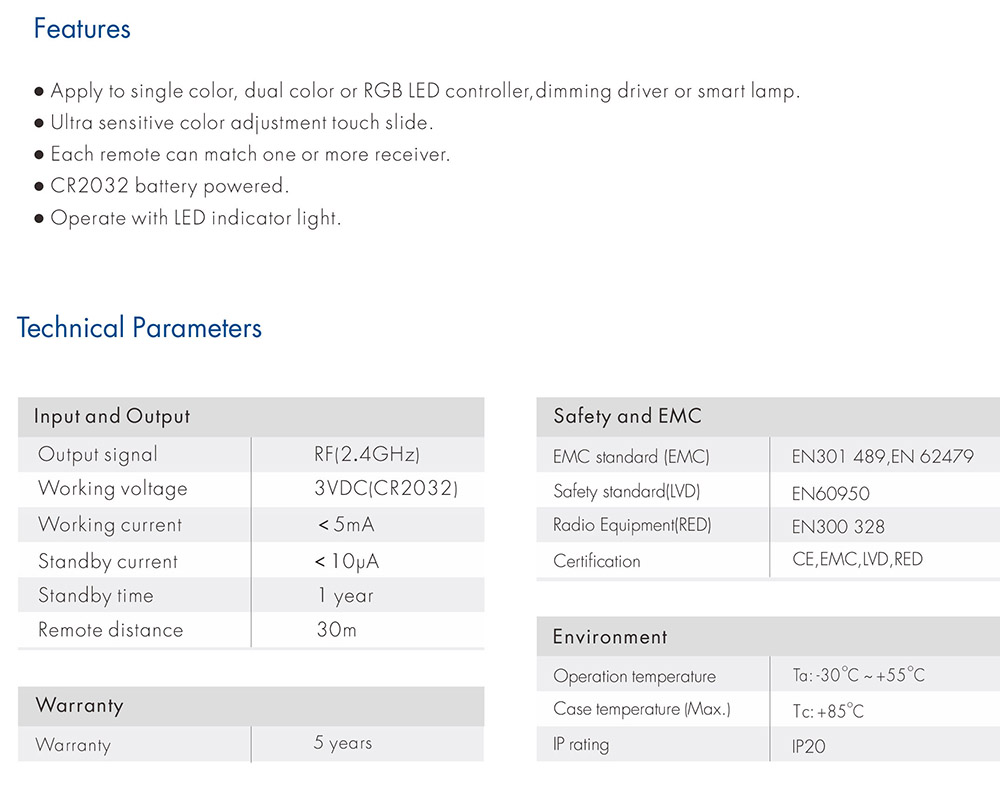

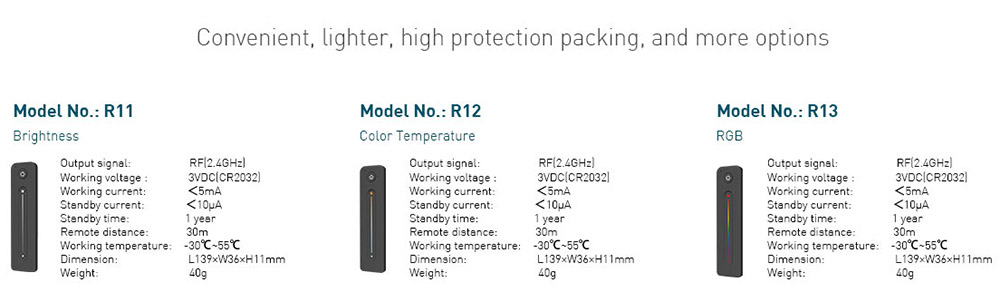

● Output signal: RF(2.4GHz)
● Working voltage : 3VDC(CR2032)
● Working current: ＜5mA
● Standby current: ＜10μA
● Standby time: 1 year
● Remote distance: 30m
● Working temperature: -30℃~55℃

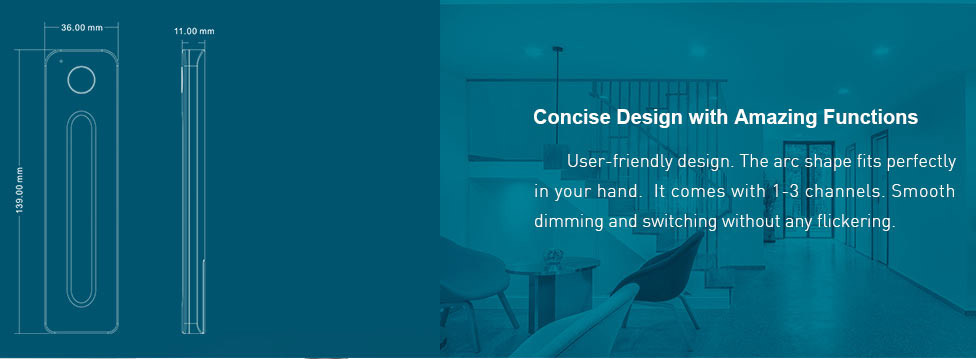

● Dimension: L139×W36×H11mm
● Weight: 40g
Standards and Certifications
