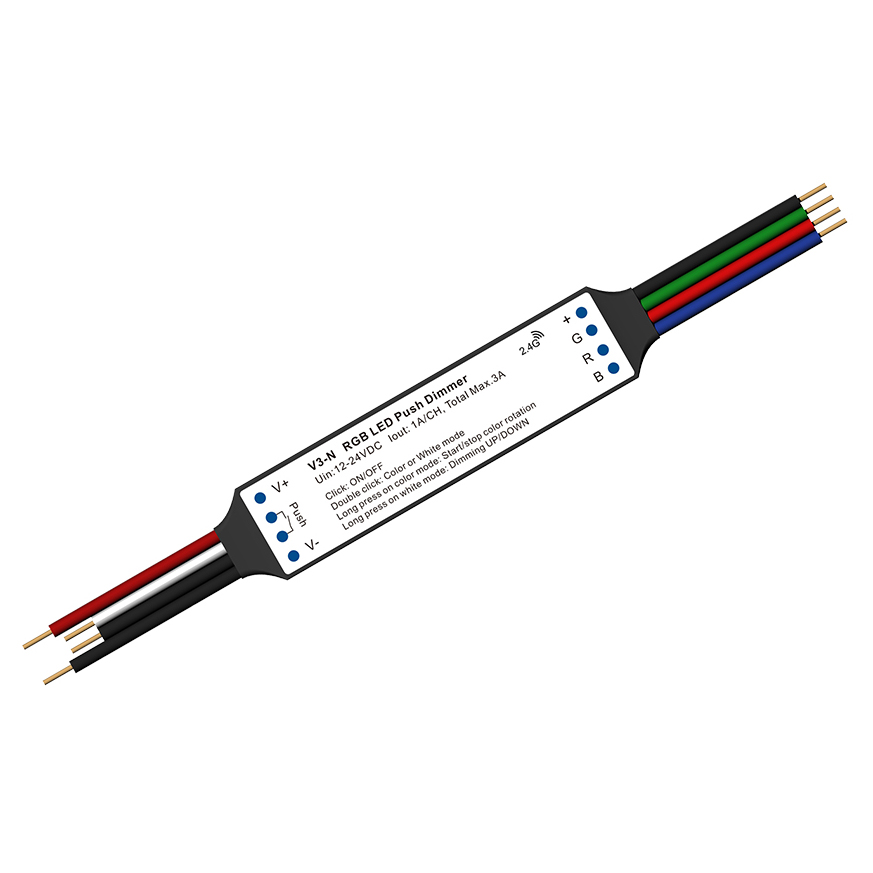

V3-N 12-24VDC Constant Voltage Push Dim RF RGB Mini LED Controller

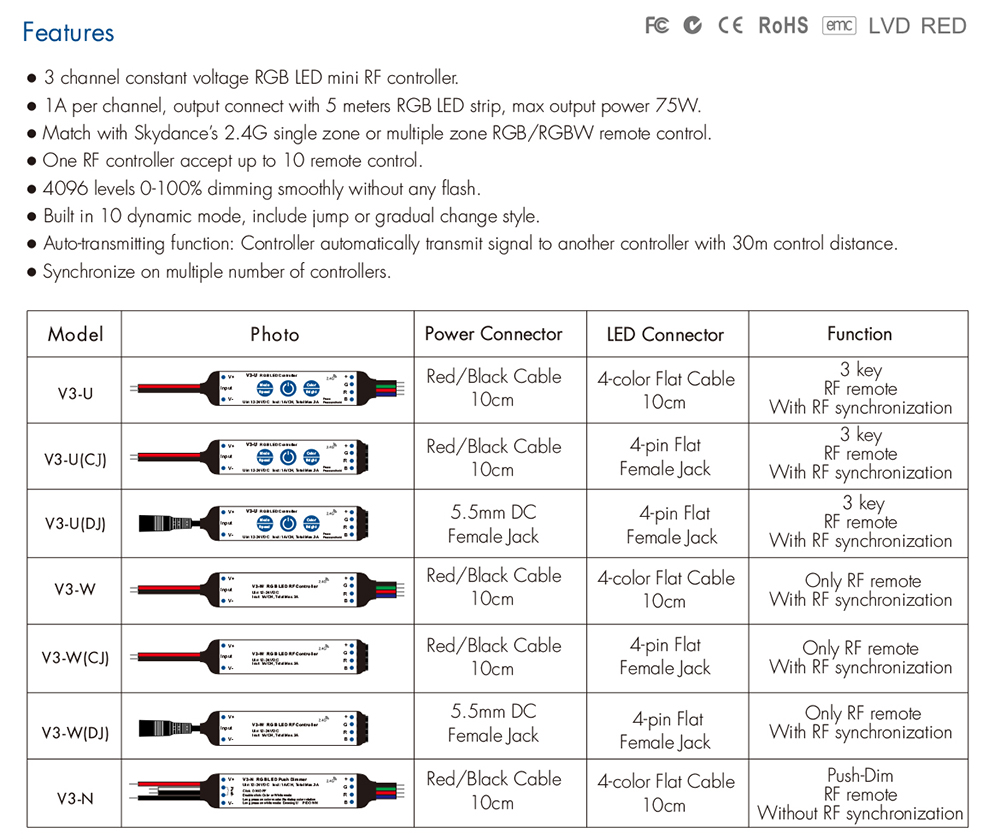

● 3 channel constant voltage RGB LED mini RF controller.
● 1A per channel, output connected with 5 meters RGB LED strip, max output power 75W.
● Match with Skydance’s 2.4G single zone or multiple zone RGB/RGBW remote control.
● One RF controller accepts up to 10 remote control.
● 4096 levels 0-100% dimming smoothly without any flash.
● Built-in 10 dynamic modes, including jump or gradual change style.
● Auto-transmitting function: Controller automatically transmits a signal to another controller with a 30m control distance.
● Synchronize on multiple controllers.

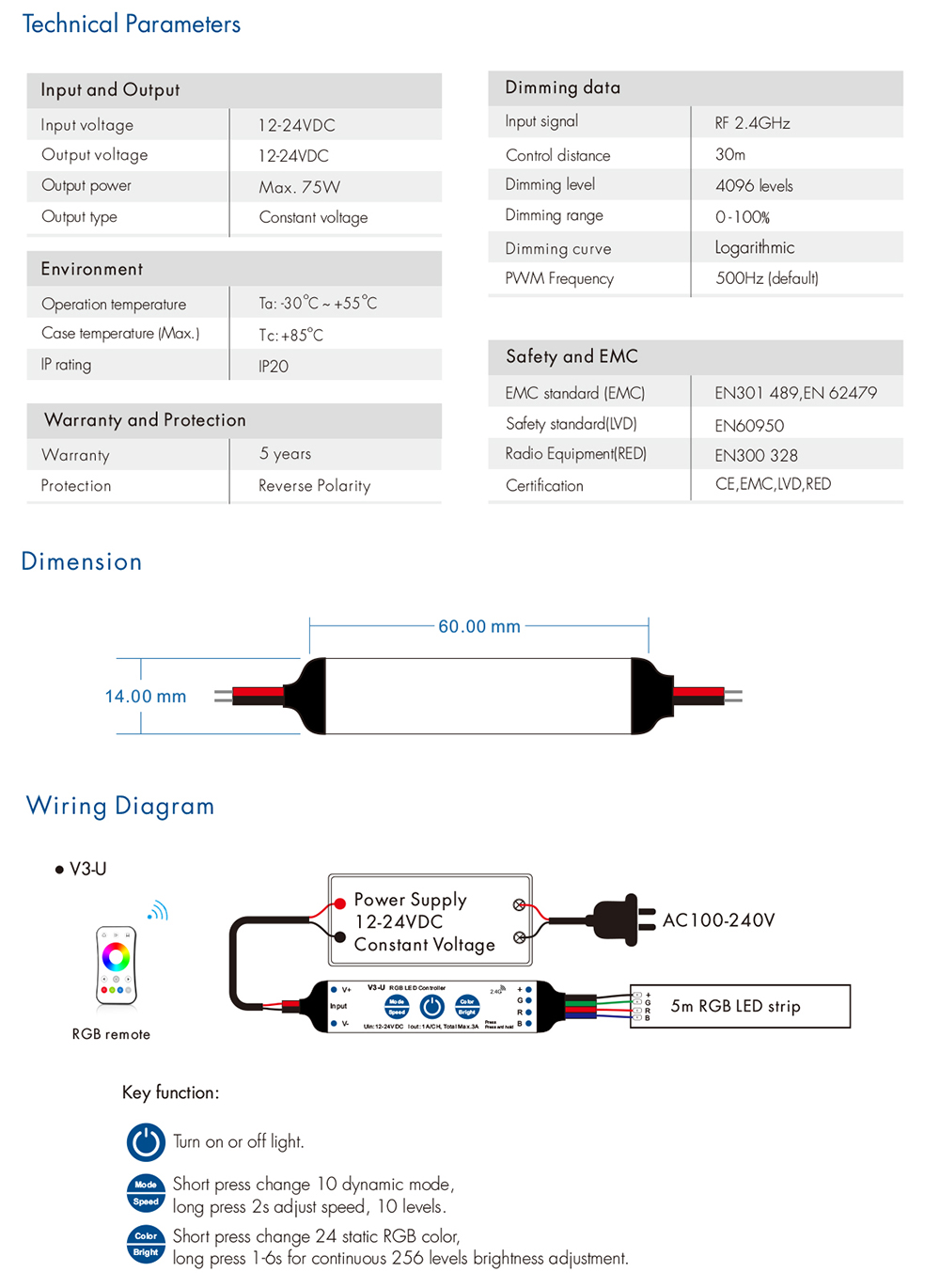

Input and Output
Input Voltage: DC12-24V
Output Voltage: DC12-24V
Output Current: Max. 75W
Output type: Constant voltage
Input Signal:RF 2.4Hz
Control distance: 30m
Dimming Level: 4096 levels
Dimming Range: 0 -100%
Dimming Curve: Logarithmic
PWM Frequency: 500Hz (default)
Warranty and Protection
Warranty: 5 years
Protection: Reverse Polarity/over heat
Safety and EMC
EMC Standard (EMC): EN301 489,EN 62479
Safety Standard(LVD): EN60950
Radio Equipment(RED): EN300 328
Standards and Certifications
