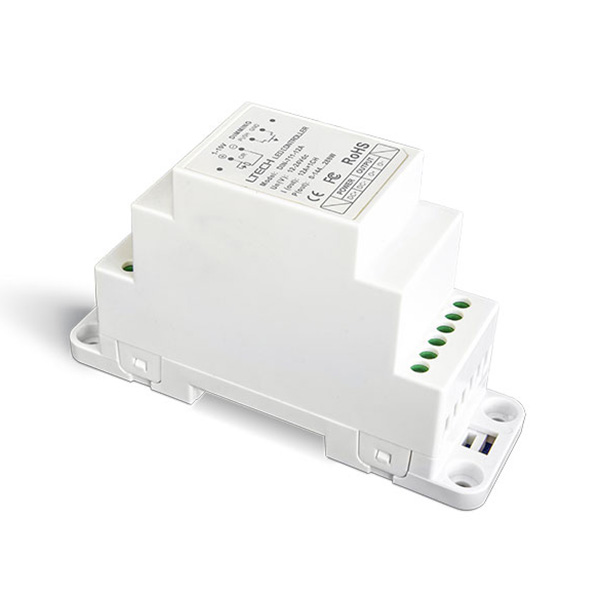

CV 0-10V 1-10V Dimming Driver DIN-711-12A
1、Dimming interface:0-10V, 1-10V, 10V PWM or push button
2、PWM digital dimming, no alter LED color rendering index.
3、Dimming range from 0-100%, LED start at 0.1% possible.
4、Max. current output: 12A.
5、Short circuit / Overload protection.
6、Full protective plastic housing.
7、Suitable for indoor environments.
DIN-711-12A CV 0-10V, 1-10V Dimming Driver(DIN rail/Screw dual-use)
Input signal : 0-10V, 1－10V, 10V PWM, or push button
Input voltage: DC12V~DC24V
Max load current : 12A ×1CH Max 12A

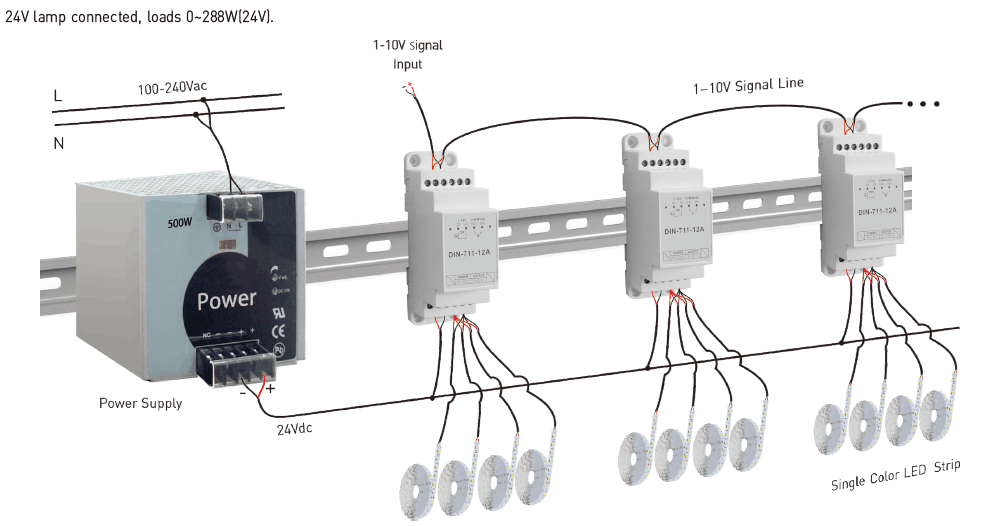

Max output power : 144W/288W(12V/24V)
Dimming Range : 0~100%
working temperature: -30℃~55℃

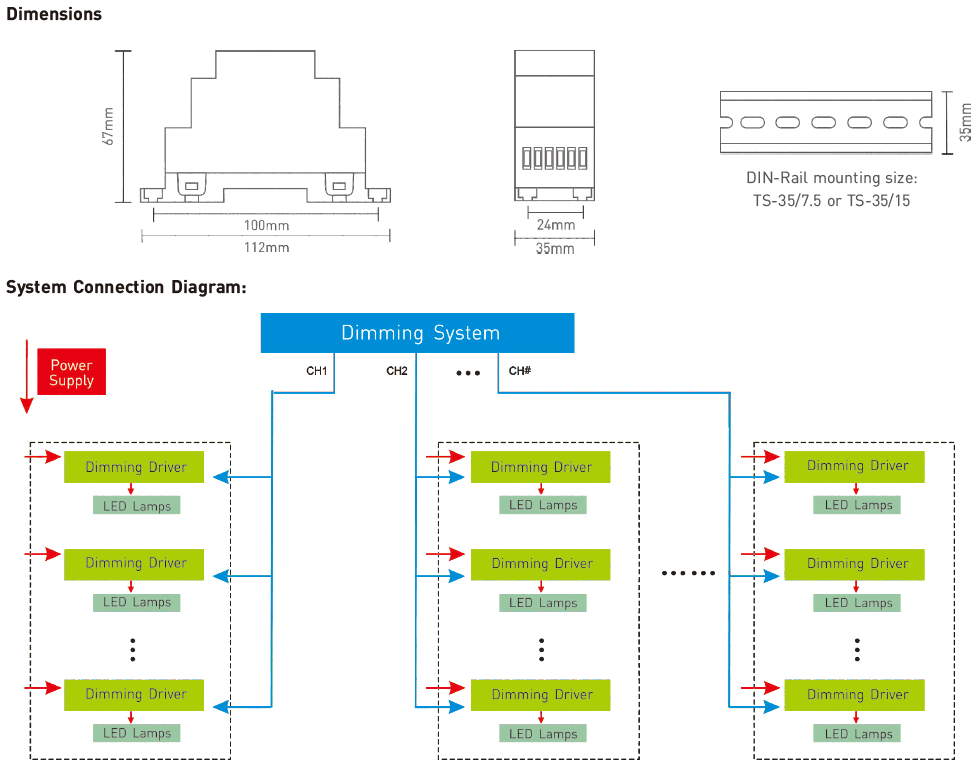

Dimension : L112×W35×H67(mm)
Package Size: L114×W37×H70(mm)
Weight (G.W) : 125g
