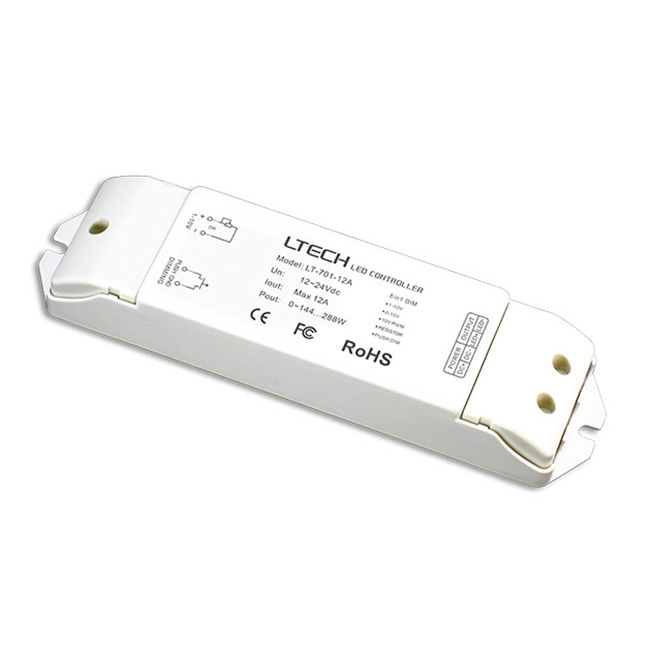

LT-701-12A DC12V~DC24V 12A 1CH easy high technique dimming driver applied for temporary stage show ,led strip lights
Input signal : 0-10V, 1－10V, 10V PWM, resistor or push button
Input voltage :DC12V~DC24V
Max load current :12A ×1CH Max 12A
Max output power: 144W/288W(12V/24V)
Dimming Range :0~100%
Working temperature :-30℃~55℃
Package Size: L178×W48×H33(mm)
Weight (G.W) :125g

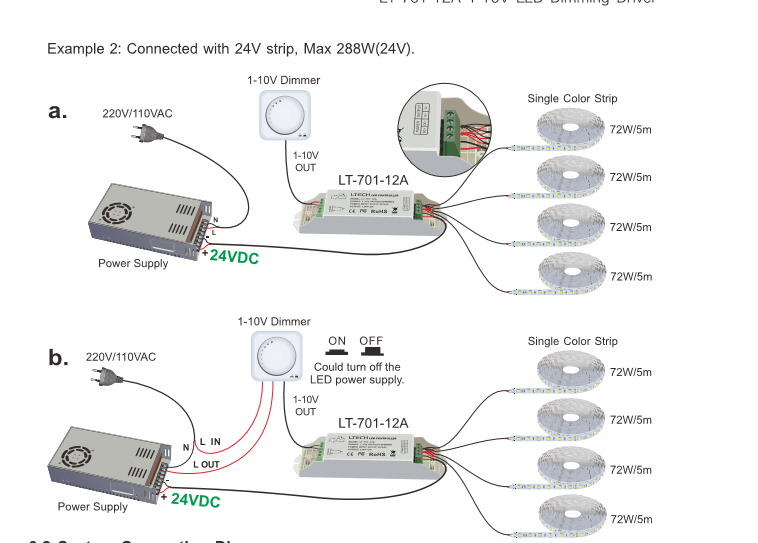

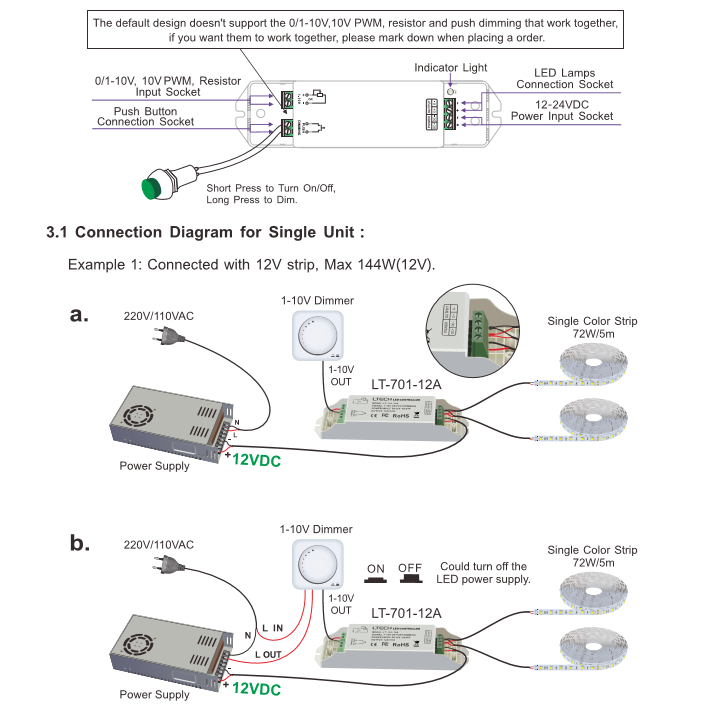

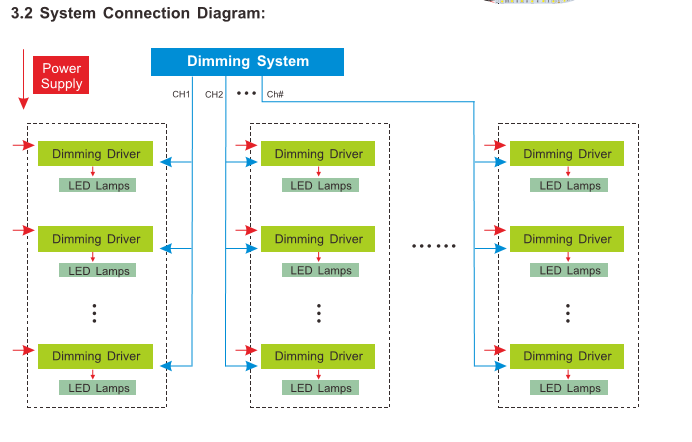

Connection diagram :
