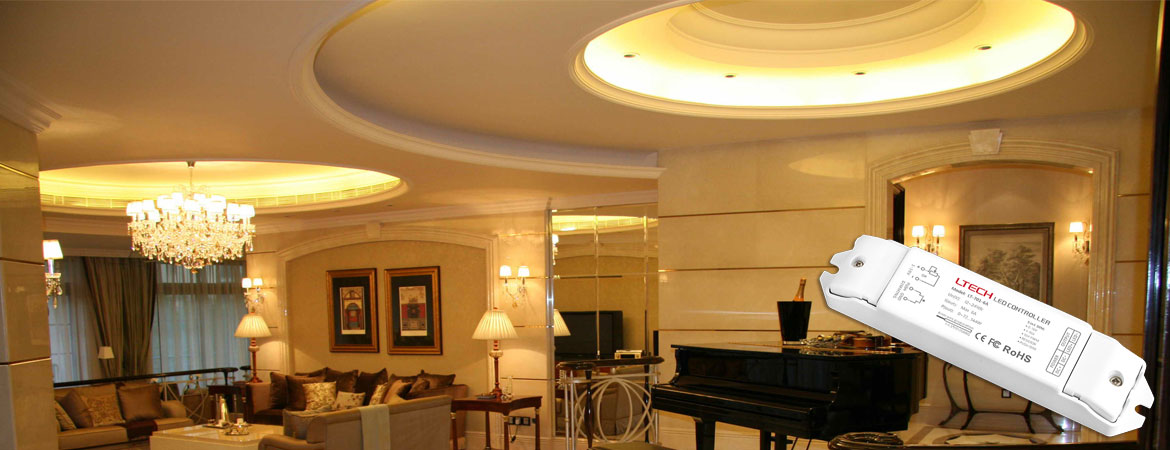

LT-701-6A DC12V~DC24V 6A 1CH easy used dimming driver applied for stadium lighting ,led strip lights
Input signal: 0-10V, 1－10V, 10V PWM, resistor or push button
Input voltage: DC12V~DC24V
Max load current: 6A ×1CH Max 6A
Max output power: 72W/144W(12V/24V)
Dimming Range: 0~100%
Working temperature: -30℃~55℃
Package Size: L140×W34×H23(mm)
Weight (G.W) : 65g
