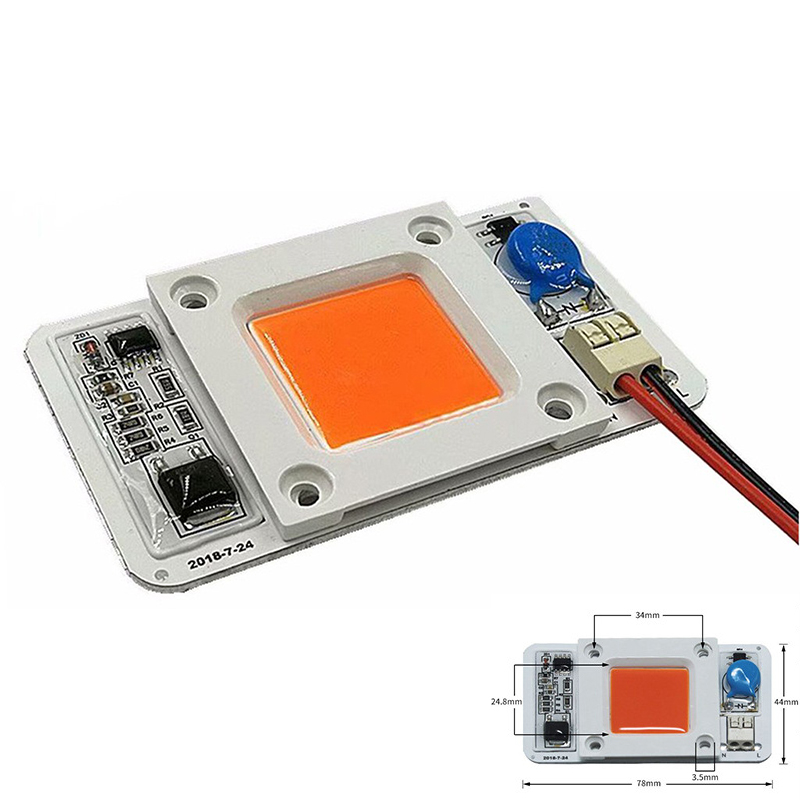

50W Solderless COB LED Chip Light Source 110V 220V AC Input

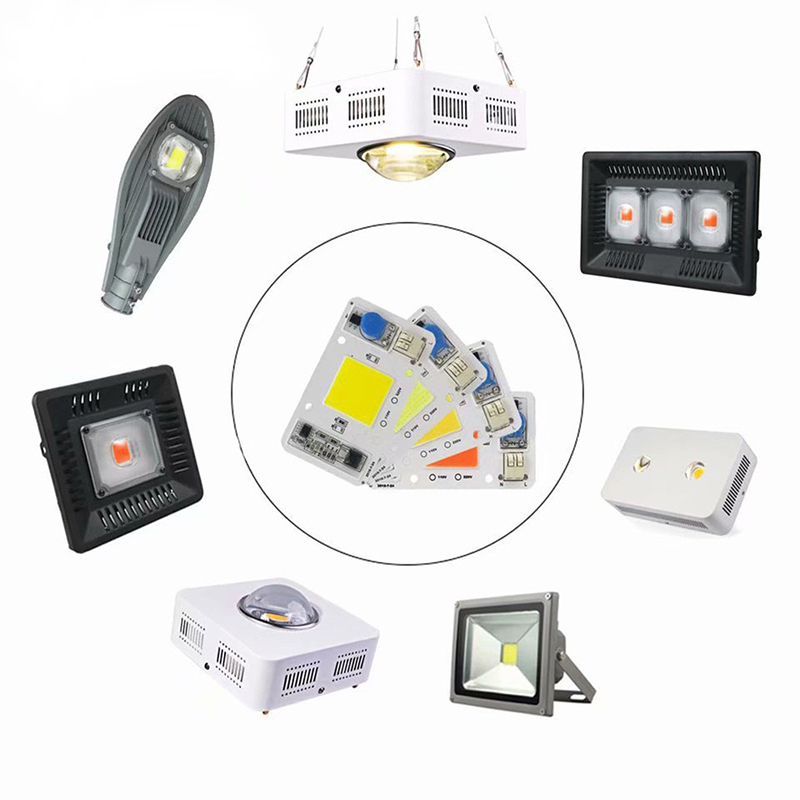

New welding-free LED light source, the COB light source and constant current driver integrated. No need led transformer, connect to 220V/110V AC directly, easy to use. LED chips are widely used for floodlights, spotlights, mining lights and street lights to replace chips.
Provide multiple light color options.
1) Full wattage LED chip, please use with full wattage thick material shell, every 10W need 500g lamps.
2) The installation should be coated with heat-conducting silicone grease to stick to the heat sink.
Input Voltage: 110V/220V
Chip Size: 77*44mm
Luminous Surface: 25*25mm
LED Color: Warm white 3000K-3200K, natural white, pure white 6000K-6500K, full spectrum white 6500K-7000K, full spectrum pink 380-840nm, green, blue, purple
Working Temperature: -20℃~+70℃
LED Chip Board Material: Aluminum base
Luminous Flux: 100-110LM/W
Warranty: 3 years
Power Factor: ≥0.9
1pcs 50W chip led cob
