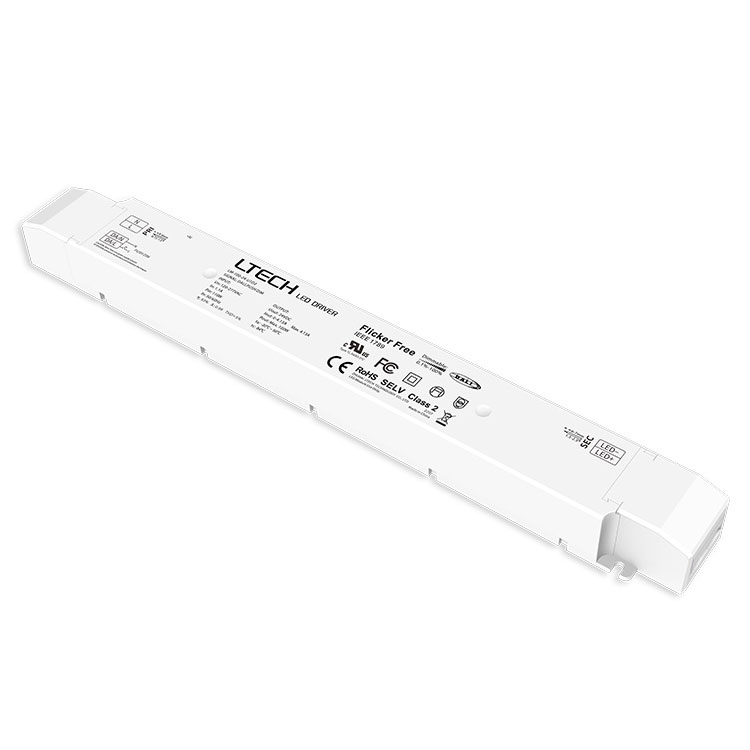

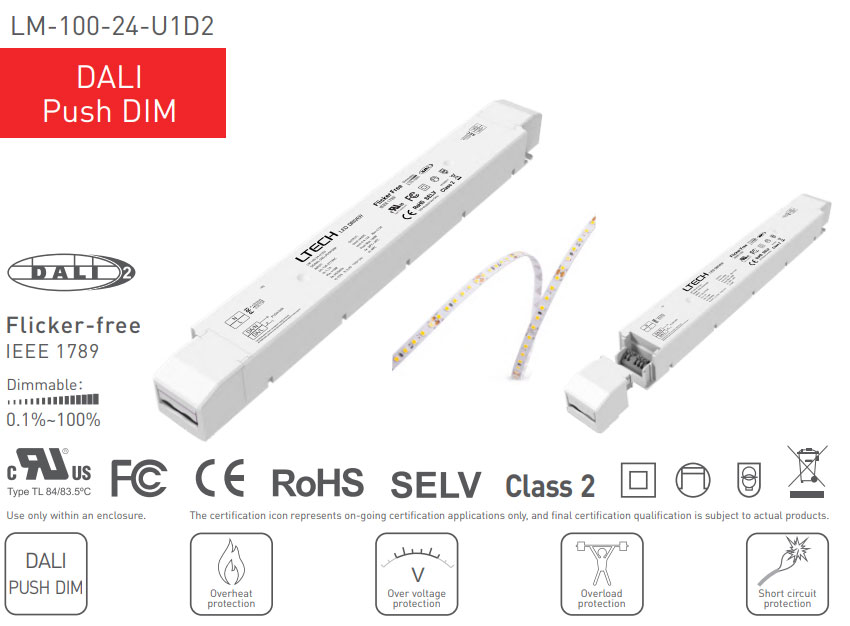

Ltech LM-100-24-U1D2 UL-Listed 100W 24VDC DALI-2 LED Driver
Ltech Constant Voltage DALI-2 LED Driver LM-100-24-U1D2, 120-277VAC input, DC24V output, with DALI-2 and push DIM dimming interfaces. With soft-on and fade-in dimming function, enhancing your visual comfort. High frequency exemption level. Dimming from 0~100%, down to 0.1%.
Small size and light weight. Adopt SAMSUNG/COVESTRO V0 flame resistant polycarbonate protective housings.
The design of dismountable end cap allows you to adjust the length of housing depending on your needs.
The clamshell design and screwless type for strain-relief, tensile strength of wires complies with the 0.5-1.5mm² wire diameter 60N tensile test, and complies with the tensile test standard GB7000.1-2015/IEC60598-1:2014.
DALI bus standard IEC62386-101, 102, 209.
Comply with the EU’s ErP Directive, stand-by power consumption<0.5W.
The secure and reliable design for signal isolation.
Innovative thermal management technology intelligently protects the power life.
Overheat, over voltage , overload, short circuit protection and automatic recovery.
Suitable for indoor light applications of Ⅰ /Ⅱ/Ⅲ type.
Up to 50,000-hour life time.
5-year warranty (Rubycon capacitor).
LM-100-24-U1D2 Manual Download
Standards and Certifications
|Model:||L-tech LM-100-24-U1D2 DALI-2 LED Driver|

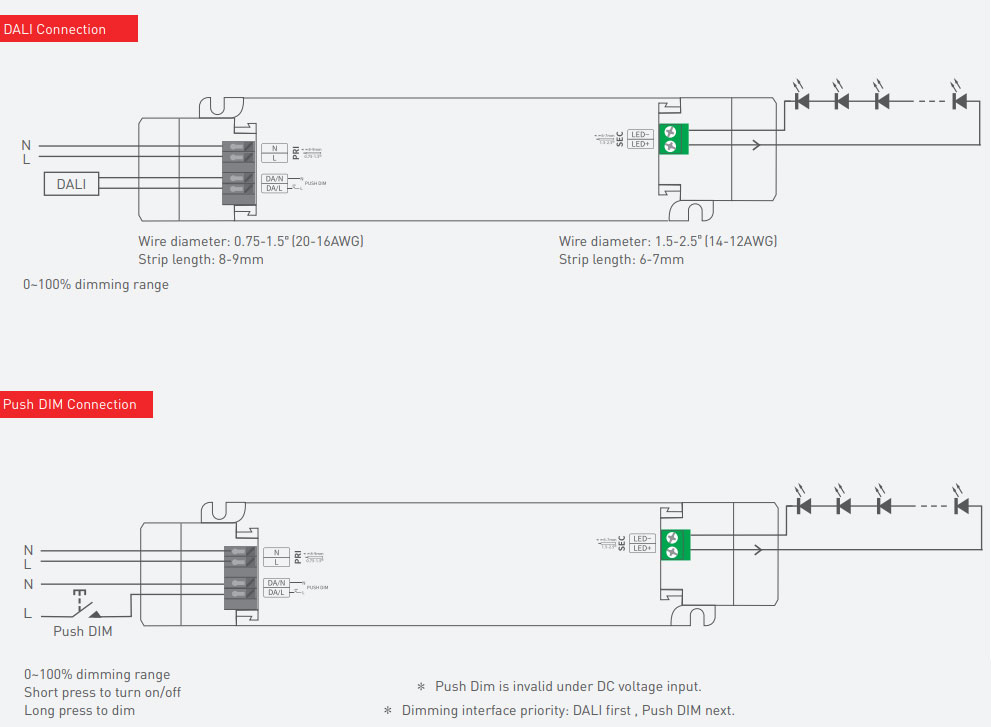

|Dimming Interface:||DALI-2, PUSH DIM|
|Input Current:||Max. 1A/120Vac, 0.55A/230Vac, 0.45A/277Vac|
|Output Current:||Max. 4.17A|
|Output Power:||Max. 100W|
|Dimming Range:||0~100%, down to 0.01%|
