Product Information

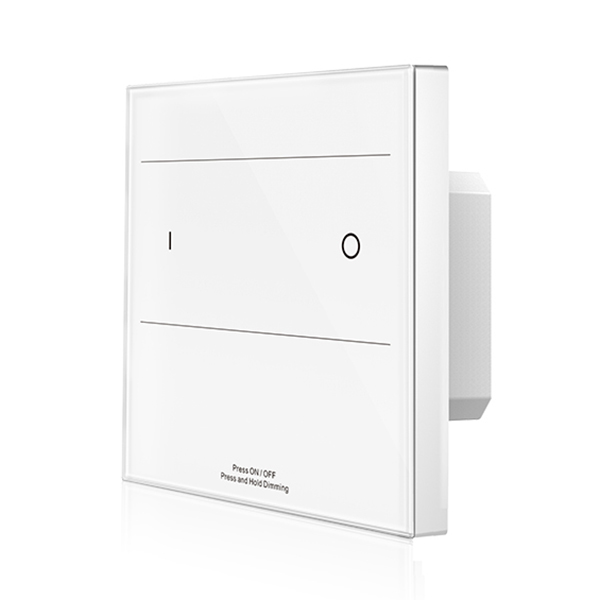

Experience versatile and sophisticated lighting control with the Skydance T16-1, a premium glass touch panel that seamlessly integrates into any modern interior. This dual-function device operates as both a precise single-zone DMX512 master for professional, hardwired installations and a convenient 4-zone RF remote for simple wireless control. Its ultra-sensitive surface provides smooth, responsive dimming for single-color LED strips. Whether you're designing an architectural lighting scheme or upgrading your home's ambiance, the T16-1 offers the reliability of DMX and the flexibility of RF in one elegant light control panel. This is the ideal solution for projects requiring dedicated control over a single area, combining high-end functionality with a minimalist aesthetic for your wall panel lights.
Key Features
Dual-Mode Versatility
Functions as a hardwired single-zone DMX512 master or a wireless 4-zone 2.4GHz RF remote, offering maximum project flexibility.
Elegant Glass Touch Panel
Features a high-strength, ultra-sensitive glass interface for smooth, intuitive dimming control with a modern, clean look.
Focused DMX Control
As a DMX512 master, it provides precise, stable control over one dedicated zone, perfect for specific architectural accents or task lighting.
Multi-Zone RF Capability
In RF mode, it can pair with and independently control multiple receivers across four distinct zones for simplified wireless setups.
Audible & Visual Feedback
Touch keys provide confirmation with selectable chord tones and a clear LED indicator, enhancing the user experience.
Universal AC Input
A wide input voltage range of 85-265VAC allows for direct connection to mains power without an external adapter, simplifying installation.
Technical Highlights
- Outputs standard DMX512 protocol for universal compatibility with decoders from any supplier.
- Utilizes reliable 2.4GHz RF technology for stable, long-range wireless remote control.
- High-precision capacitive touch sensor ensures immediate and accurate response.

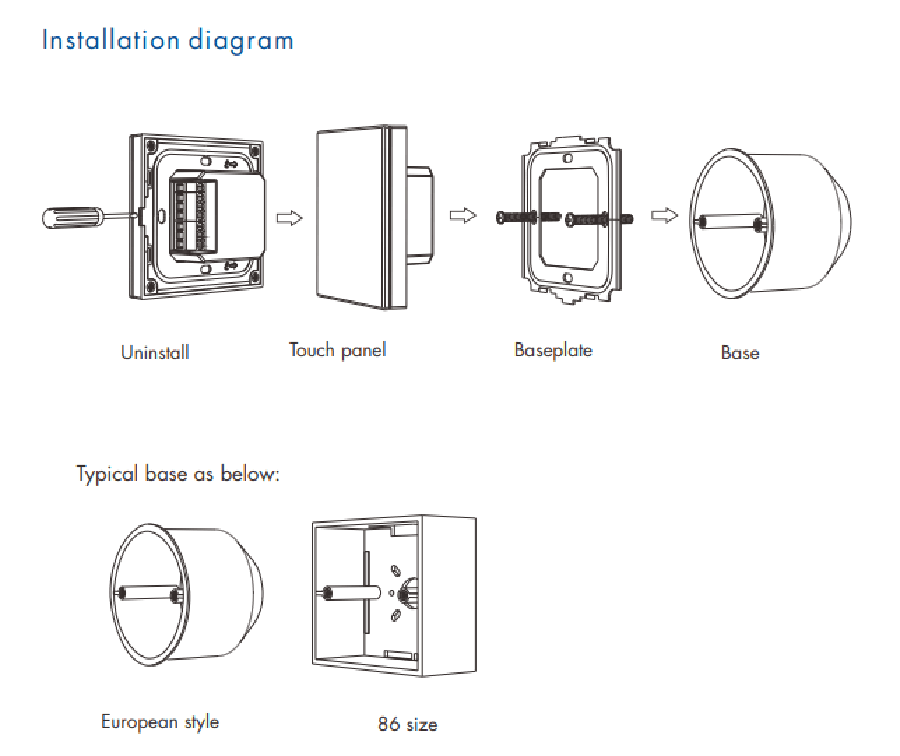

- Designed for easy installation in standard EU/US style wall boxes.
Product Specifications
| Parameter | Details |
|---|---|
| Model | T16-1 |
| Input Voltage | 85-265VAC |
| Output Signal | DMX512, RF (2.4GHz) |
| DMX Control Mode | 1 Zone (Single Channel Dimming) |
| RF Control Mode | 4 Zones (Single Channel Dimming) |
| Panel Material | High-strength glass |
| Control Interface | Capacitive Touch |
| User Feedback | LED Indicator & Chord Tones |
| Operating Temperature | -20°C to 60°C |
| Relative Humidity | 30% - 85% |
Application Scenarios
How to Control & Use This Controller
- Safety First: Before installation, ensure the main circuit breaker is switched OFF.
- AC Wiring: Connect your 85-265VAC live (L) and neutral (N) wires to the corresponding input terminals on the back of the panel.

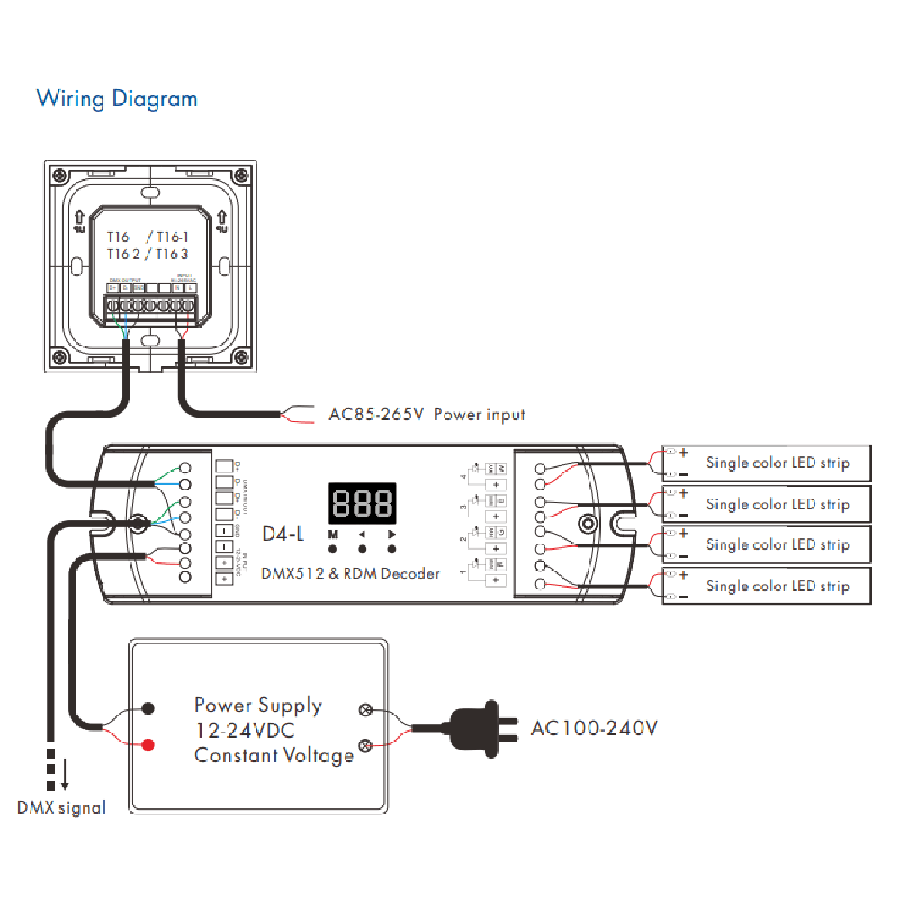

- DMX Mode Wiring: For DMX control, connect the DMX output terminals (D+, D-, GND) to the DMX input of your DMX decoder or the first decoder in a series.
- RF Mode Pairing: To use as a wireless remote, power on your Skydance RF receiver. Short press the 'Match' key on the receiver, then immediately touch any key on the T16-1 panel. A light flash on the receiver indicates successful pairing.
- Operation: Once installed and wired/paired, restore power. Use the touch-sensitive keys to turn lights on/off and press the brightness slider to achieve your desired dimming level.
- Mode Switching: The T16-1 automatically functions as a DMX master when DMX cables are connected. When used wirelessly, it acts as an RF remote.
- Installation should be performed by a qualified electrician.
- This is a high-voltage device. Never perform wiring with the power on.
- Ensure the device is installed in a dry, indoor location away from direct heat sources.
- For RF mode, use only with compatible Skydance 2.4G single-color RF receivers.
What's in the Box
- ✓1 x T16-1 DMX & RF Touch Panel Controller
- ✓1 x User Manual
⇩ Downloads & Documents
Frequently Asked Questions
Q: Can this controller change colors on an RGB strip?
A:No, the T16-1 is a single-channel dimming controller designed exclusively for use with single-color LED lighting.
Q: What is the difference between the DMX and RF modes?
A:DMX mode provides a wired, universally standard signal for professional lighting control. RF mode offers convenient wireless control to compatible Skydance receivers, ideal for simpler setups.
Q: Is this a DMX decoder?
A:No, this is a DMX master controller. It sends the DMX signal. You need to connect it to a separate DMX decoder, which receives the signal and controls the LED strips.
Q: Does this panel need batteries?
A:No, it is a hardwired wall panel that connects directly to your 85-265VAC mains power.
Q: How many lights can I control in RF mode?
A:You can pair an unlimited number of RF receivers to each of the 4 zones. The total power is limited by your receivers and power supplies, not the panel itself.
Q: Can I use this with any brand of DMX equipment?
A:Yes, it outputs a standard DMX512 signal and is designed to be compatible with any DMX decoder that adheres to this universal protocol.
Q: Can I turn off the key-press sound?
A:Yes, you can toggle the chord tones on or off by long-pressing the top-left key for 2 seconds.
