Touch Panel Single color dimming remote PF1 single color LED Strip Light
Apply to single color LED controller, dimming driver or smart lamp.
Adopt 2.4GHz wireless technology, remote distance up to 30m.
Each remote can match one or more receiver.
CR2032 button battery power supply.

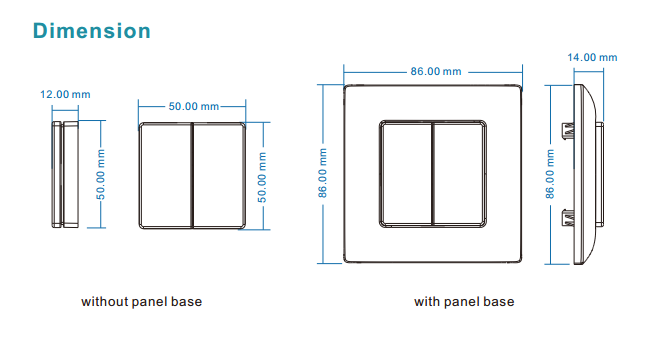

Removeable and stick anywhere easily, or mount on wall use panel base.
Standards and Certifications
Output signal: RF(2.4GHz)
Working voltage: 3VDC(CR2032)
Working current: ＜20mA
Standby current: ＜4μA
Standby time: 12 months
Remote distance: 30m
