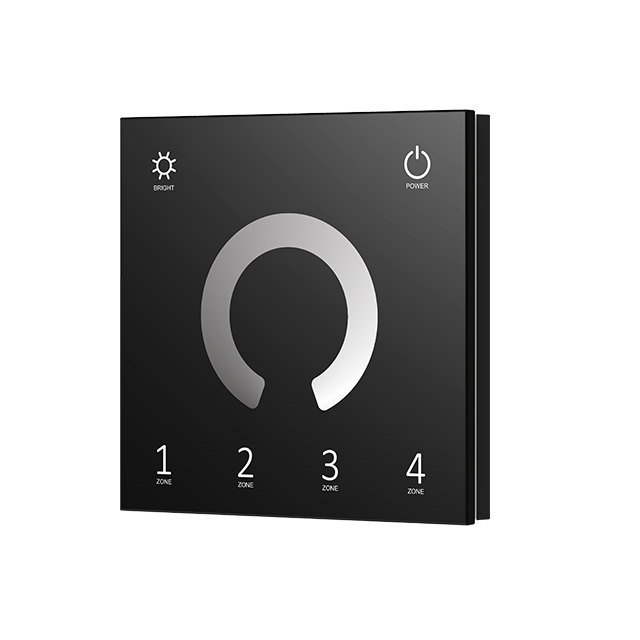

T21-1 4 Zones RF Dimmable Wall Mounted Touch Panel Controller
● Touch panel 4 zone 1-4 color RF remote.
● Each zone can remote control multiple Skydance’s 2.4G LED controllers.
● Ultra sensitive high strength glass touch panel with a touch color wheel in the middle.
● Smooth and accurate color adjustment by touching the color slide.
● Touch keys with chord tones and LED indicator.
● Free installation, no wiring, removable.
● AAA x 2 battery powered.
● White & Black glass panel available.

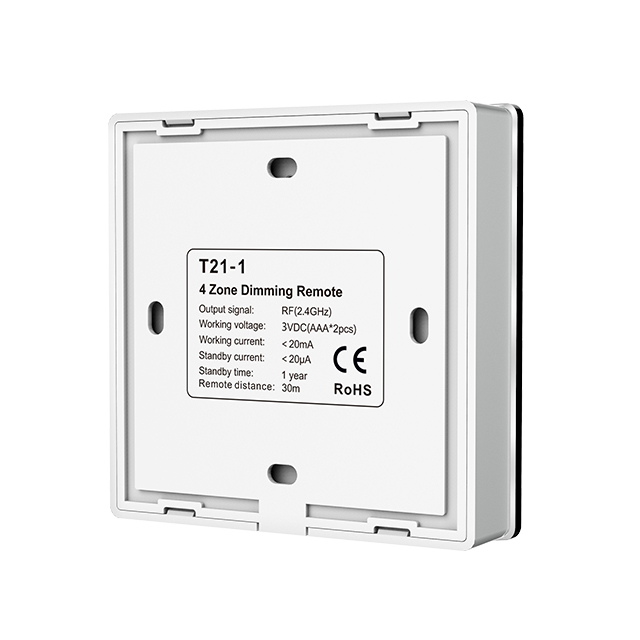

Input and Output
Output signal: RF(2.4GHz)
Working voltage: 3VDC(AAA x 2)
Working current: ＜5mA(Without Tune); <20mA(with Tune)
Standby current: ＜20μA
Standby time: 1 year
Remote distance: 30m
Safety and EMC
EMC standard (EMC): ETSI EN 301 489-1 V2 2 3; ETSI EN 301 489-17V3 24
Safety standard(LVD): EN 62368-1 2020+A 11 2020
Radio Equipment(RED): ETSI EN 300 328 V2 2 2
Warranty and Protection
Warranty: 5 years
