Product Information
The SkyDance T16-3 is a sophisticated wall-mounted light control panel designed for precise dimming of single-color LED lighting across three independent zones. Its unique dual-mode capability allows it to function as a wired DMX512 master for professional installations or as a convenient 2.4G RF remote for compatible SkyDance receivers. With its elegant glass touch interface and direct 85-265VAC input, the T16-3 offers a streamlined and modern solution for complex lighting control in residential, commercial, and architectural settings, eliminating the need for separate DC power supplies.
Key Features
Dual DMX & RF Control
Functions as a wired DMX512 master for universal compatibility or as a wireless 2.4G RF remote for SkyDance systems.
Independent 3-Zone Dimming
Individually select and adjust brightness levels for three separate areas or groups of lights from a single panel.
High-Voltage AC Input
Connects directly to 85-265VAC mains power, fitting into standard wall boxes without needing an external DC adapter.
Elegant Glass Touch Panel
Features a highly sensitive, easy-to-clean glass surface with a modern aesthetic suitable for any interior.
Intuitive User Feedback
Audible chord tones and a clear LED indicator provide instant confirmation for every touch command.
Technical Highlights
- Standard DMX512 signal output for compatibility with a wide range of decoders.
- High-precision capacitive touch IC for smooth, flicker-free dimming control.
- Last-state memory function recalls the previous brightness setting after a power cycle.
- Fits standard US and EU/UK electrical wall boxes for easy installation.

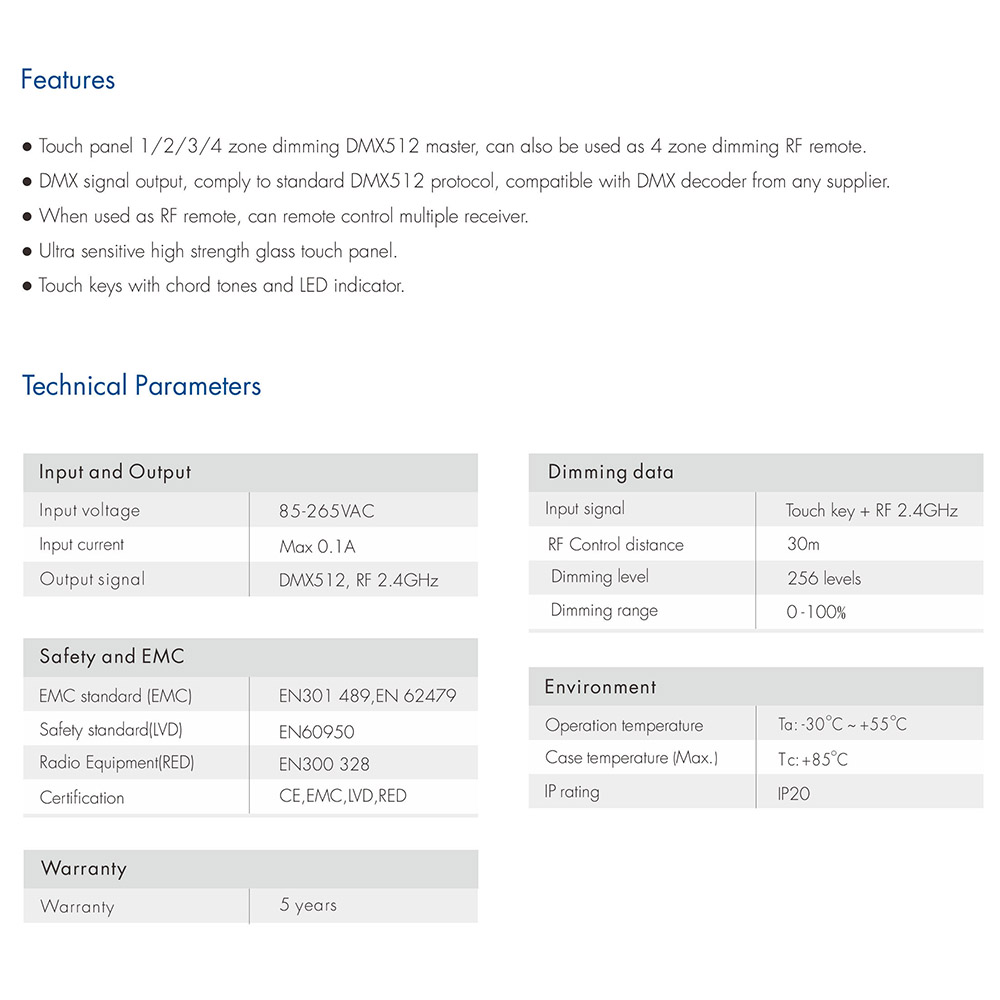

Product Specifications
| Parameter | Details |
|---|---|
| Model | T16-3 |
| Input Voltage | 85-265VAC |
| Frequency | 50/60Hz |
| Output Signal | DMX512 / RF 2.4GHz |
| Control Type | Single Color Dimming |
| Zones | 3 |
| RF Control Distance | 30m (98 ft) |
| DMX512 Sockets | Screw Terminals |
| Working Temperature | -20°C ~ 55°C (-4°F ~ 131°F) |
| Relative Humidity | 8% to 80% |
| Dimensions | 86 x 86 x 36 mm (L x W x H) |
Application Scenarios
How to Control & Use This Controller

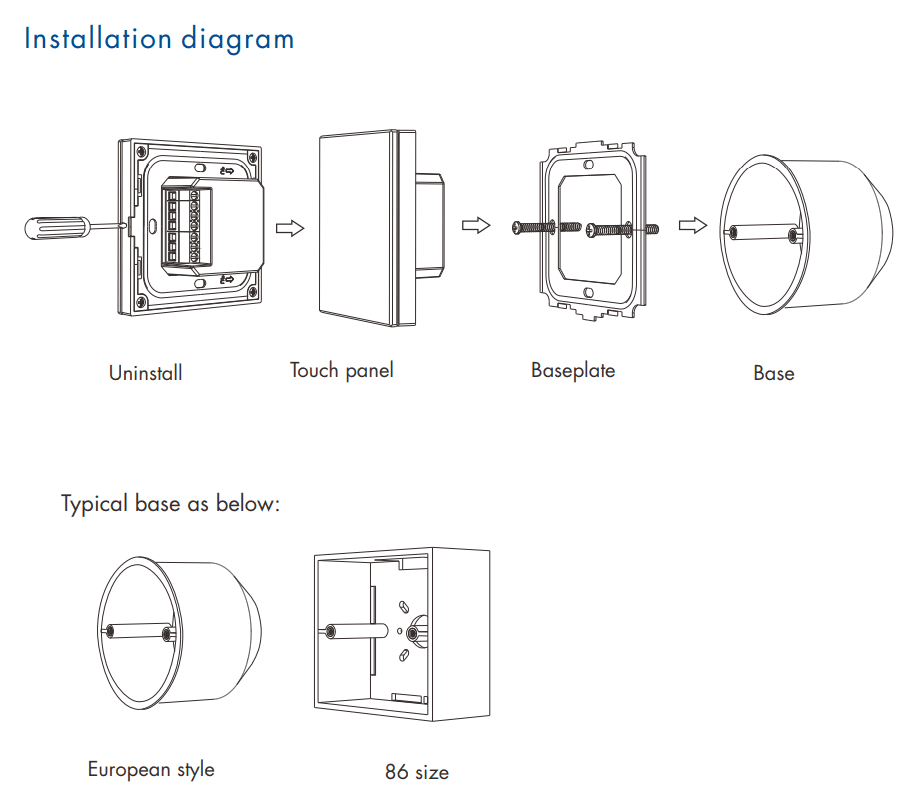

- Installation: Ensure mains power is switched off. Mount the T16-3 into a standard electrical wall box and connect the Line (L) and Neutral (N) wires from your 85-265VAC power source.

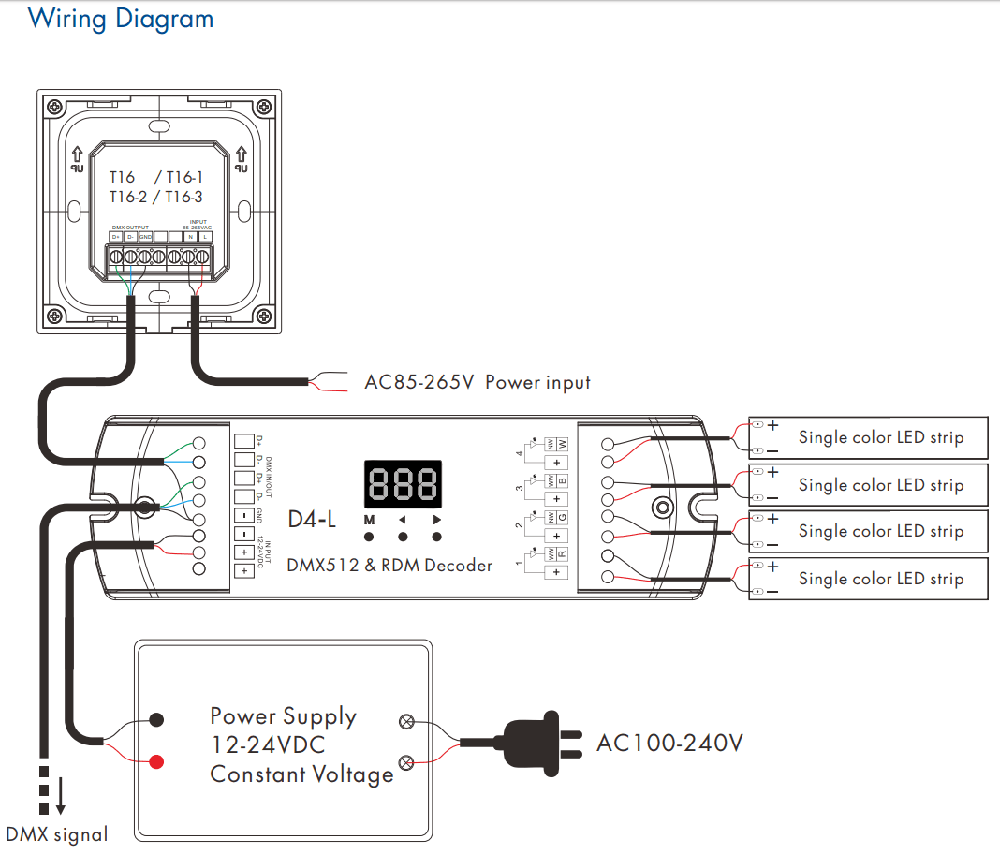

- DMX Wiring: For wired control, connect the DMX output terminals (D+, D-, GND) to the input of your first DMX decoder. Daisy-chain subsequent decoders as needed, using appropriate DMX512 Lights Accessories.
- RF Pairing: To use as a wireless remote, short-press the "Match" key on a compatible SkyDance RF receiver, then immediately touch any key on the T16-3 panel to complete the pairing.
- Operation: Touch a zone number (1, 2, or 3) to select it. Use the dimming slider to adjust the brightness for the selected zone. A long press on a zone number turns it on/off.
- Installation must be performed by a qualified electrician.
- This is a single-color dimmer; it is not designed to control CCT, RGB, or RGBW lights.
- Ensure any connected DMX decoders or RF receivers are compatible with single-color, constant voltage PWM dimming control.
What's in the Box
- ✓1 x T16-3 Touch Panel Controller
- ✓1 x User Manual
⇩ Downloads & Documents
Frequently Asked Questions
Q: What is the difference between the T16-3 and other Skydance panels?
A:The T16-3 is a 3-zone DMX & RF dimmer for single-color lights. Other models may offer different zone counts, control protocols (like 0-10V or DALI), or color control (like RGB/CCT).
Q: Can this panel control lights in three separate rooms?
A:Yes. By wiring each room's lights to its own DMX decoder or RF receiver and assigning each to a different zone (1, 2, or 3), you can achieve independent control.
Q: Does this controller work with Philips Hue or other smart home systems?
A:No, this is a professional-grade DMX512 and proprietary 2.4G RF controller. It does not natively connect to Wi-Fi or Zigbee-based consumer smart home systems.
Q: Is this a DMX decoder?
A:No, this is a DMX master controller. It generates the DMX signal. You will need separate DMX decoders to receive this signal and drive your low-voltage LED strips.
Q: What is the wireless range in RF mode?
A:The RF remote has a typical range of up to 30 meters (approx. 98 feet) in an open environment. This range can be reduced by walls and other electronic interference.
Q: Can I use this to control outdoor lights?
A:The T16-3 panel itself is for indoor installation. However, it can control outdoor lighting by sending a DMX or RF signal to an appropriately-rated waterproof decoder or receiver located outdoors.
