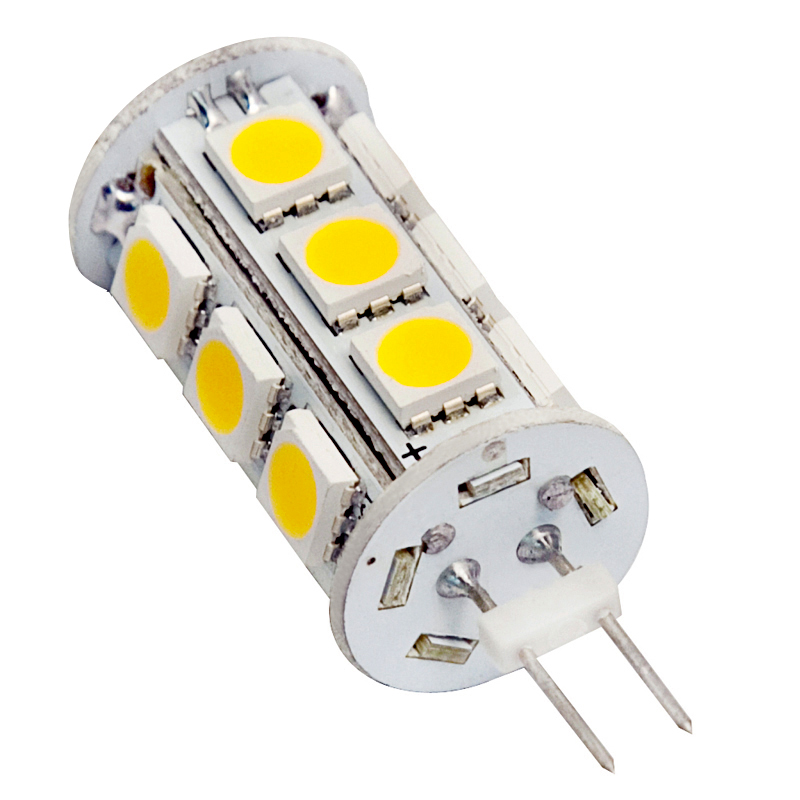

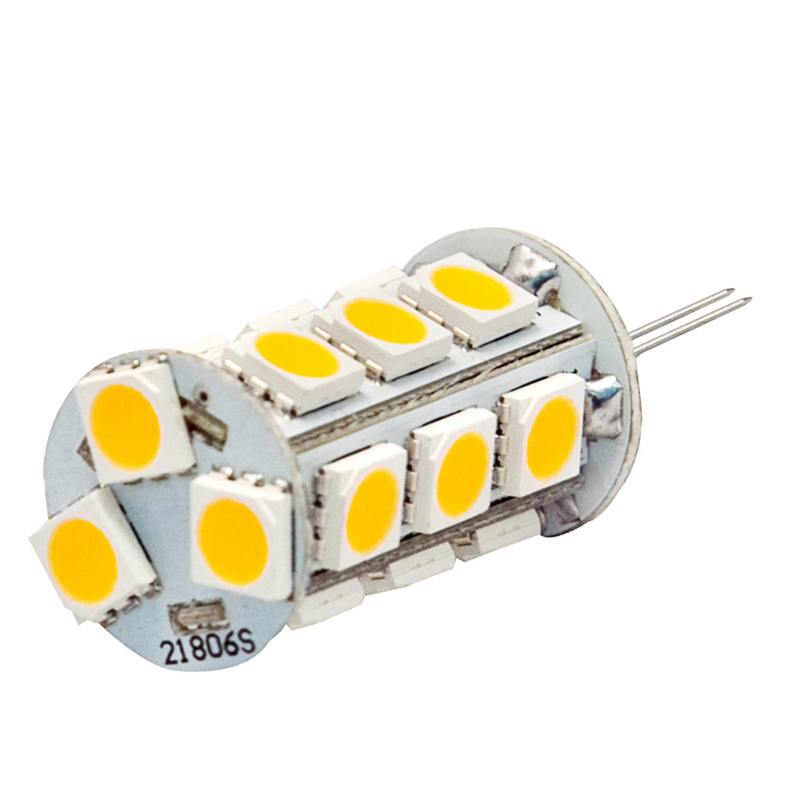

AC10-18V/DC10-30V, Back-Pin Tower T3 JC G4 LED Bulb, 3.6 Watts, 20-25W Equivalent, 5-Pack
Input voltage is AC10-18V / DC10-30V
Power consumption is 3.6Watts
Uses 18 pcs SMD 5050 LEDs
Luminous flux up to 250 lumens maximum

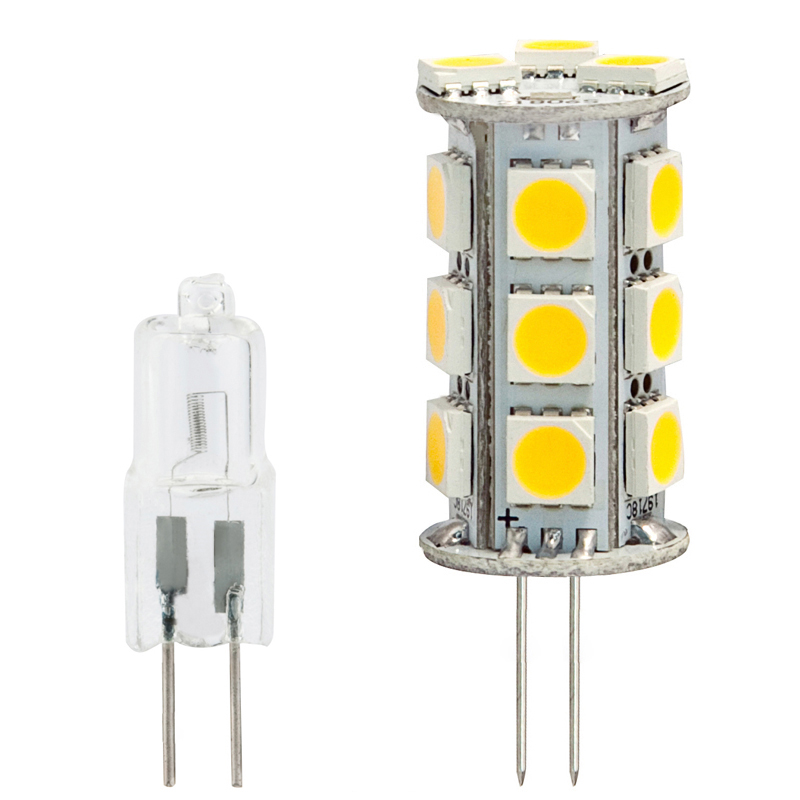

Nearly equivalent to standard 20-25W halogen/incandescent bulb
Optional colors are cool white, daylight white and warm white
360 degree wide beam floodlight
0.59-inch diameter x 1.73-inch total length
For use in ceiling lights, pendant lights, desk lamps, table lights, puck lights, under-counter lights, closet lights, under-cabinet lights, accent lights or display lighting etc.

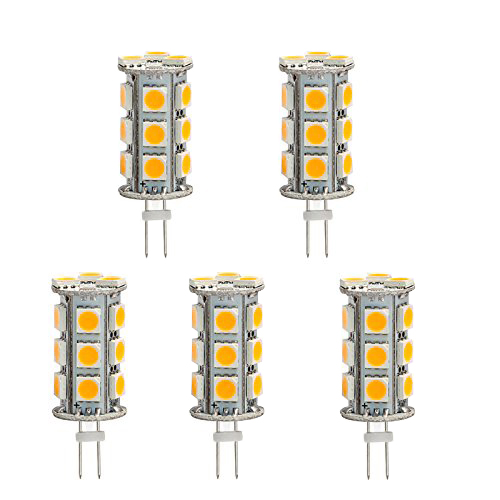

The package includes 5 pcs bulbs
Non-Weatherproof. Indoor use only unless contained within weatherproof housing.
Oversize. Will not fit all fixtures. Please check the bulb dimension.
Standards and Certifications
Wattage: 3.6 Watt
Halogen Equivalent: 20-25 Watt
Bulb Base: G4
Bulb Shape: T3 JC
Luminous Flux: Max.250 Lumen
Beam Angle: 360 Degree
LED Brand: Epistar
LED Type: Tri-chip 5050 SMD LED
LED Quantity: 18 Pcs
LED Color(s): Cool White / Daylight White / Wam White
CCT or Wavelength: 6000K / 5000K / 3000K / 2700K
Color Rendering Index: 80
Diameter: 15mm (0.59 in.)
Length (M.O.L.): 44mm (1.73 in.)
RoHS Compliant: Yes
LED Lifetime: 40,000 Hours
